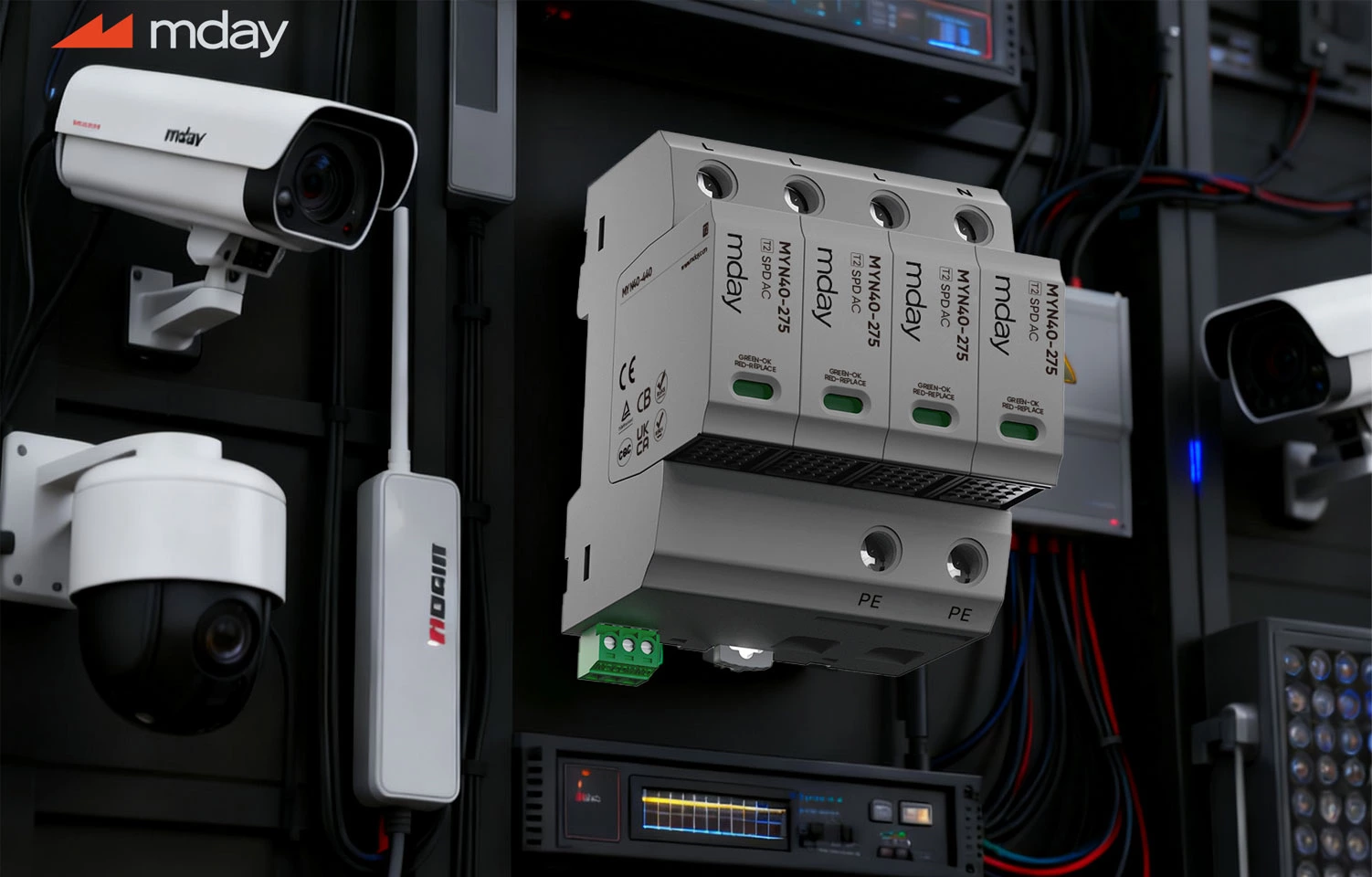

Recommendations for the selection and installation of surge protectors in security monitoring equipment

I. Introduction Security monitoring equipment has become an indispensable part of our daily lives and work, and its protection, maintenance, and repair are crucial. Among these, the selection and correct installation of surge protective device are critical. This will be analyzed and discussed from these two aspects below.

II. Selection of Surge Protectors A surge protector is a device that can protect equipment from high-voltage pulses, primarily used to protect equipment from electrical interference. When selecting a surge protector, the following factors need to be considered:

1. Protected Object Different types of surge protectors should be selected for different protected objects, such as power line surge protectors, signal line surge protector, and telephone line surge protectors. Selection should be based on the actual situation.

2. Rated Voltage Rated voltage refers to the voltage range that the surge protector can withstand. It needs to be considered comprehensively based on the voltage conditions in the actual operating environment. If the voltage in the environment is too high, a surge protector with high voltage resistance should be selected.

3. Impedance Matching To ensure that the surge protection device can perform its protective function, its impedance needs to be matched with the impedance of the protected equipment. If the impedance is mismatched, the protection effect will be reduced or even lost.

4. Surge Protector Response Time
The surge protector's response time refers to the time from receiving an interference signal to initiating protection. The shorter this time, the better the surge protector's protection against interference signals.

5. Post-Protection Handling
After surge protection, sometimes post-processing of the protected equipment is required. For example, for some equipment requiring manual intervention, a surge protector with an alarm function should be selected to promptly detect faults and take appropriate measures.

III. Surge Protector Installation Recommendations
Besides selecting the correct surge protector, proper installation is also crucial. Here are some installation recommendations:

1. Installation Location
The surge protector should be installed close to the protected equipment to minimize the impact of abnormal factors. At the same time, long-distance signal or power transmission should be avoided, as this increases the risk of impedance mismatch with the surge protector.

2. Connection Method
When connecting the surge protector, strictly follow the instructions in the manual. Pay attention to the connection method of the protection circuit to ensure it is secure and reliable. Meanwhile, when connecting the wiring, it is necessary to avoid close-range interference from sources of interference.

3. Grounding
When installing a surge protector, it is necessary to ground it. Poor grounding will reduce the protection effect. It is also necessary to ensure that the grounding resistance is below the specified value to guarantee the grounding effect.

4. Testing
After installation, the surge protector needs to be tested to ensure its normal operation. Testing includes checking its response time, protection effect, etc.

IV. Summary
Correctly selecting and installing surge protectors is one of the important aspects of protecting security monitoring equipment. When selecting a surge protector, factors such as voltage, impedance, and response time need to be considered, while during installation, attention must be paid to the installation location, connection method, and grounding. Only by doing these things well can the effectiveness and stability of the surge protector be guaranteed, thereby ensuring the normal operation of the security monitoring equipment.
