Surge Protective Deviceapplicable Fields

Publish Time: Author: Site Editor Visit: 216

Applicable fields

Photovoltaic system

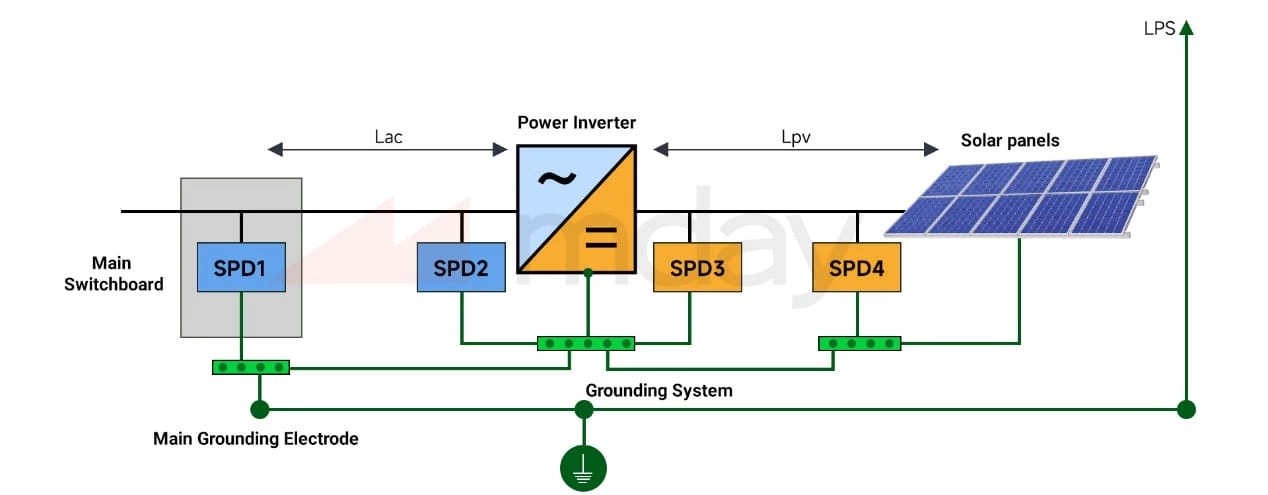

As the PV array is mostly installed in the open air, the risk of direct lightning strike is high, which not only has a direct impact on the PV panel, but also has an indirect surge impact on the PV module, combiner box and inverter, and even has a double impact on the signal line. Therefore, appropriate surge protectors must be installed on the combiner box, both sides of the PV inverter, the main switchboard and the signal line.

Surge Protective Deviceapplicable Fields

  • Junction box of photovoltaic array: In the roof photovoltaic system with non-isolated lightning protection system ( LPS ), if LPV ( distance from photovoltaic array to photovoltaic inverter ) > 10m and LAC ( distance from photovoltaic inverter to main switchboard ) > 10m, it is applicable to photovoltaic DC T1 SPD; if LPV < 10m and LAC < 10m, it is unnecessary to install SPD;  In the roof photovoltaic system with isolated LPS, if LPV > 10m and LAC > 10m, it is applicable to PV DC T2 SPD; if LPV < 10m and LAC < 10m, it is unnecessary to install SPD;  In photovoltaic power plant and LPV > 10m, LAC > 10m, applicable to photovoltaic DC T1 SPD;  In the roof photovoltaic system without LPS, if LPV > 10m and LAC > 10m, PV DC T2 type SPD is applicable; if LPV < 10m and LAC < 10m, SPD may not be installed.
  • DC side of photovoltaic inverter: In the roof photovoltaic system with non-isolated LPS, it is applicable to photovoltaic DC T1 SPD; In the roof photovoltaic system with isolated LPS, it is applicable to PV DC T2 SPD; In photovoltaic power plant and LPV > 10m, LAC > 10m, applicable to photovoltaic DC T1 SPD; In the roof photovoltaic system without LPS, PV DC T2 type SPD is applicable.
  • AC output side of photovoltaic inverter: In the roof photovoltaic system with non-isolated LPS, if LPV > 10m and LAC > 10m, AC T1 + T2 SPD is applicable; if LPV < 10m and LAC < 10m, SPD may not be installed;  In the roof photovoltaic system with isolated LPS, if LPV > 10m and LAC > 10m, AC T2 SPD is applicable; if LPV < 10m and LAC < 10m, SPD may not be installed;  AC T2 SPD is applicable in photovoltaic power plant with LPV > 10m and LAC > 10m;  In the roof photovoltaic system without LPS, AC T2 type SPD is applicable if LPV > 10m and LAC > 10m, and SPD may not be installed if LPV < 10m and LAC < 10m.
  • Main switchboard: In roof photovoltaic system, AC T1 + T2 SPD is applicable; AC T2 SPD is applicable in photovoltaic power plant with LPV > 10m and LAC > 10m; For roof PV systems without LPS, AC T2 SPD is applicable.



Product Family Iimp/Imax Unipolar Features
MYH9-DC T1+T2 9kA/40kA T1 + T2 PV surge protection, new MOV, common mode / differential mode protection, pluggable
MYH6.25-DC T1+T2 6.25kA/50kA
MYN40-DC T2 40kA  T2 PV surge protection, new MOV, common mode / differential mode protection, pluggable
MYCH12.5-DC T1+T2 12.5kA /50kA   T1 + T2 PV surge protection, new MOV, high energy discharge capability, common mode / differential mode protection, pluggable
MDH9-DC T1+T2 9kA/50kA  T1 + T2 PV surge protection, common mode / differential mode protection, pluggable
MDH6.25-DCT1+T2 6.25kA/50kA
MDN40-DC T2 40kA  T2 PV surge protection, common mode / differential mode protection, pluggable
MYCH12.5-AC T1+T2 12.5kA /60kA  T1 + T2 PV Surge Protection, New MOV, High Pass Capacity, Common Mode / Differential Mode Protection, Type 3 + 1, Pluggable
MYH7-AC T1+T2 7kA/ 50kA  T1 + T2 PV surge protection, new MOV, common mode / differential mode protection, 3 + 1 type, pluggable

DC and AC surge protectors commonly used in photovoltaic systems
