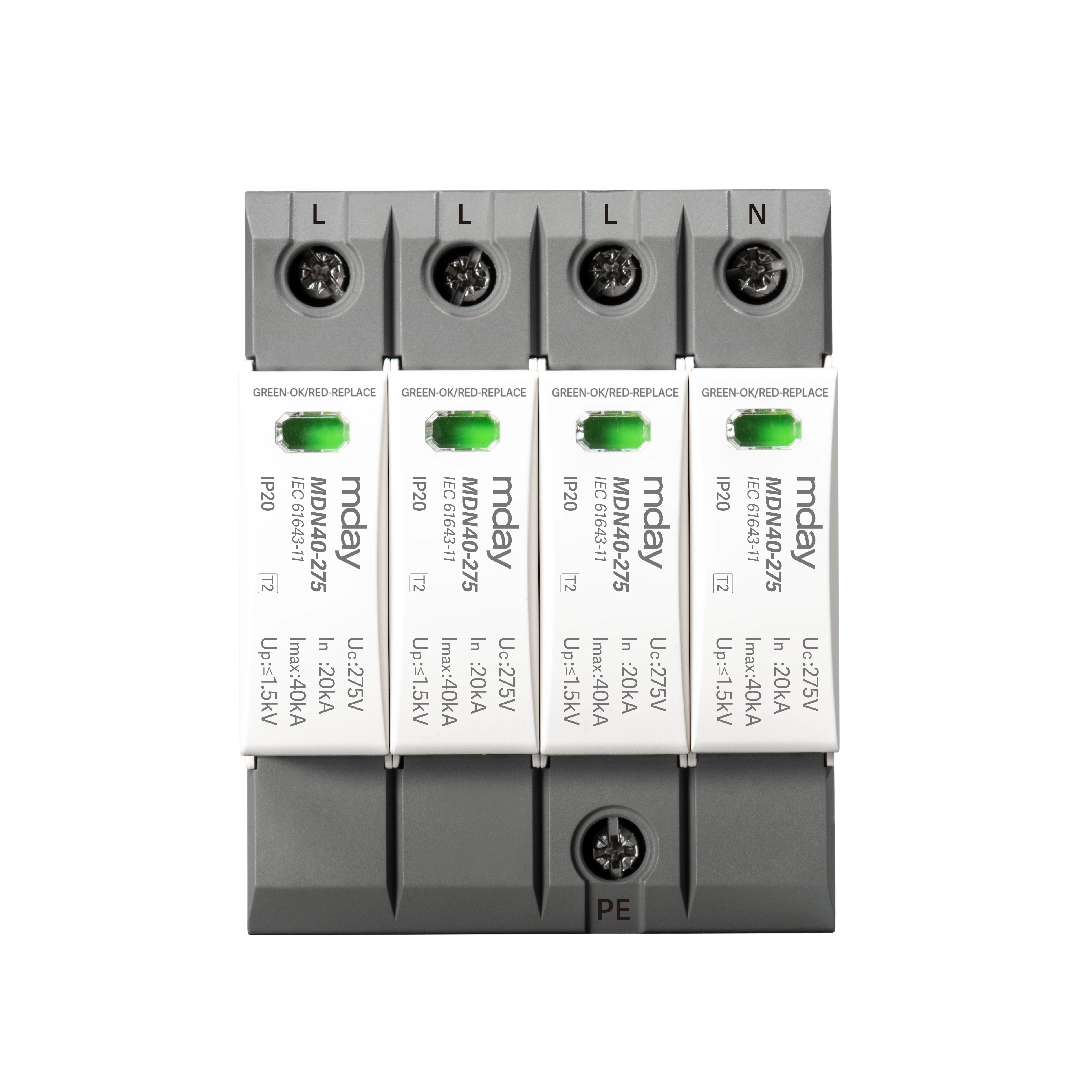

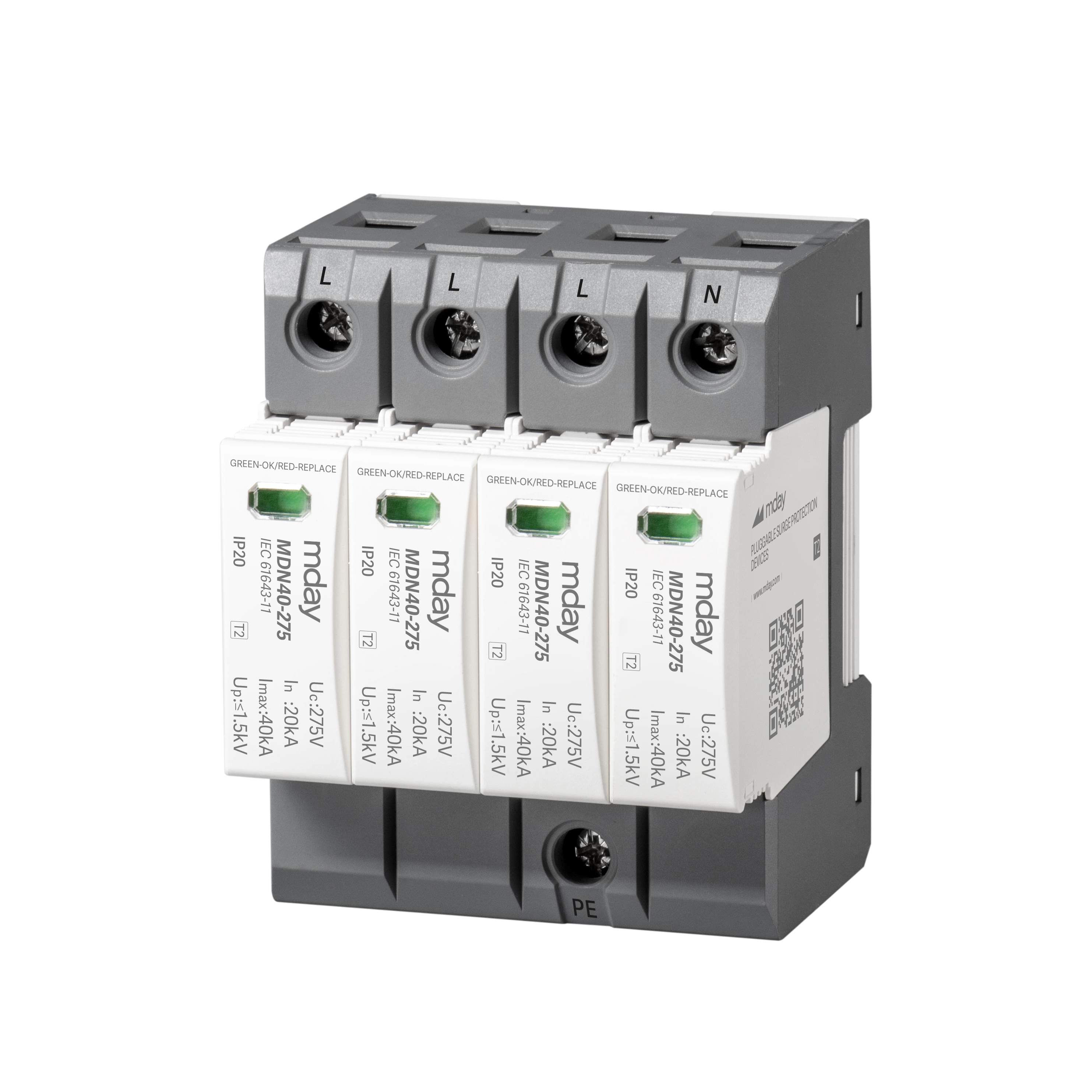

Surge Protector Plug Socket Point Of Use Surge Protector AC 4P

· MODEL:
MDN40-275
· TYPE:
T2
· In/Imax:
20kA/40kA
· Conform to:
IEC/EN 61643-11,GB/T 18802.11
· Certification:
UKCA/CE/CB/TUV/ROHS/REACH/CQC
· Delivery Time:
1-100PCS within 7 days/100-1000PCS within 10 days
· Payment Terms:
L/C, T/T, Western Union, Paypal
· Supply Ability:
100000 pcs per month

Surge Protector Plug Socket Point Of Use Surge Protector AC 4P

Mday Type   MDN40-275 MDN40-320 MDN40-385 MDN40-440
Product Description Type2 Surge Ptotective Device
AC Operating Voltage Un 230Vac 230Vac 230Vac 230Vac
Maximum Continuous Operating Voltage Uc 275Vac 320Vac 385Vac 440Vac
Temporary Overvoltage Test Value Ut 335Vac 335Vac 580Vac 580Vac
Temporary Overvoltage Test Value Ut 440Vac 440Vac 770Vac 770Vac
Nominal Discharge Current(8/20μs) In 20kA
Maximum Discharge Current(8/20μs) Imax 40kA
Voltage Protection Level Up ≤1.8kV ≤2.0kV ≤2.2kV ≤2.4kV
Short-circuit current rating Isccr 25kA
heat tripping device Insertion
Max. Backup Fuse 125A gL/gG
Mechanical properties
Product size   see the photo as below
Wiring method   screw terminal 2.5-25mm²
Normal/Fault display   colourless/red
Maximum remote signal load voltage/current    250V/0.5A[AC],30V/3A[DC]
Maximum cross-sectional area of remote signal connection line   1.5mm2
Installation   35mm DIN Rail
Operating Temperature range Tu -40-+85°
 Protection level   IP20
Enclosure material   Thermoplastic material, compliant with UL94-V0

Mday's adopts fully automatic machine double-sided soldering technology

Tripping side:
1. Automatic soldering technology for both sides, stable connection,and no false soldering.
2. Adopt chromium-free  tin material, more green and environmentally friendly.
3. Double-layer thickened copper design, high flow, more stable.
Chip side:
1. Accurate parameters, every data is exactly the same as the actual product.
2. Use high-efficiency encapsulation chip design to improve heat dissipation performance and extend service life.

Surge Protector Plug Socket Point Of Use Surge Protector AC 4P

Mday signs partner agreement with EPCOS for next-generation surge,protective device's MOV development

Surge Protector Plug Socket Point Of Use Surge Protector AC 4P

 Wiring diagram

Surge Protector Plug Socket Point Of Use Surge Protector AC 4P

 Mday’s Product size & Packing

Surge Protector Plug Socket Point Of Use Surge Protector AC 4P

Mday Can Provide OEM Service

-Customize with your LOGO /model / specific parameters on the product
-Customize with your LOGO /model / QR code/Product Code on the stickers
-Provide free packaging design and customization services

Surge Protector Plug Socket Point Of Use Surge Protector AC 4P

Mday’s Company Profile

Surge Protector Plug Socket Point Of Use Surge Protector AC 4P

All accessories of Mday are independently produced, including shell, copper parts and varistor chips.Therefore, the quality and production cycle of each order can be fully guaranteed.

Surge Protector Plug Socket Point Of Use Surge Protector AC 4P

Mday‘s test laboratory

Mday has testing equipment such as 10/350μs 40KA and 8/20μs 120KA Simulated lightning test equipment, High voltage TOV and low voltage TOV. If necessary, we can provide the parameters of each test for customers' reference.

Surge Protector Plug Socket Point Of Use Surge Protector AC 4P

Surge Protective Device Automatic Production Line

Mday have 3 automatic production lines, can control the production cycle and product quality of each batch of orders.

Surge Protector Plug Socket Point Of Use Surge Protector AC 4P

certificate

Surge Protector Plug Socket Point Of Use Surge Protector AC 4P

Mday has 7 authoritative certifications, namely TUV,UKCA,IEC,ROHS,SVHC,CE,CB. Also,Mday took the lead in applying for the German VDE certification certificate in 2024. It is worth mentioning that this is the first certified certificate in the domestic surge protective device industry. This move demonstrates the company's outstanding strength in technological innovation in surge protective device and integrate with international standards.

Surge Protector Plug Socket Point Of Use Surge Protector AC 4P

Mday has participated in many exhibitions in recent years to meet new friends, establish new connections, and learn about the latest industry trends.
