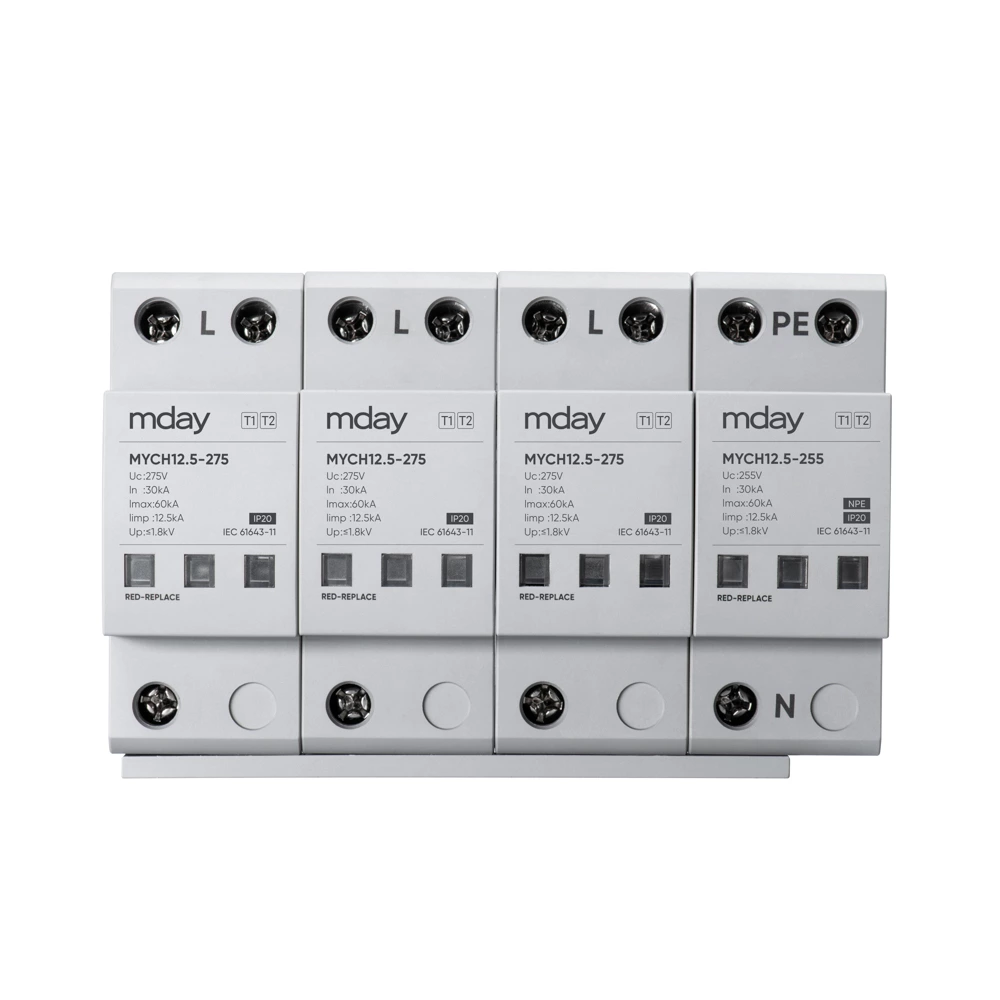

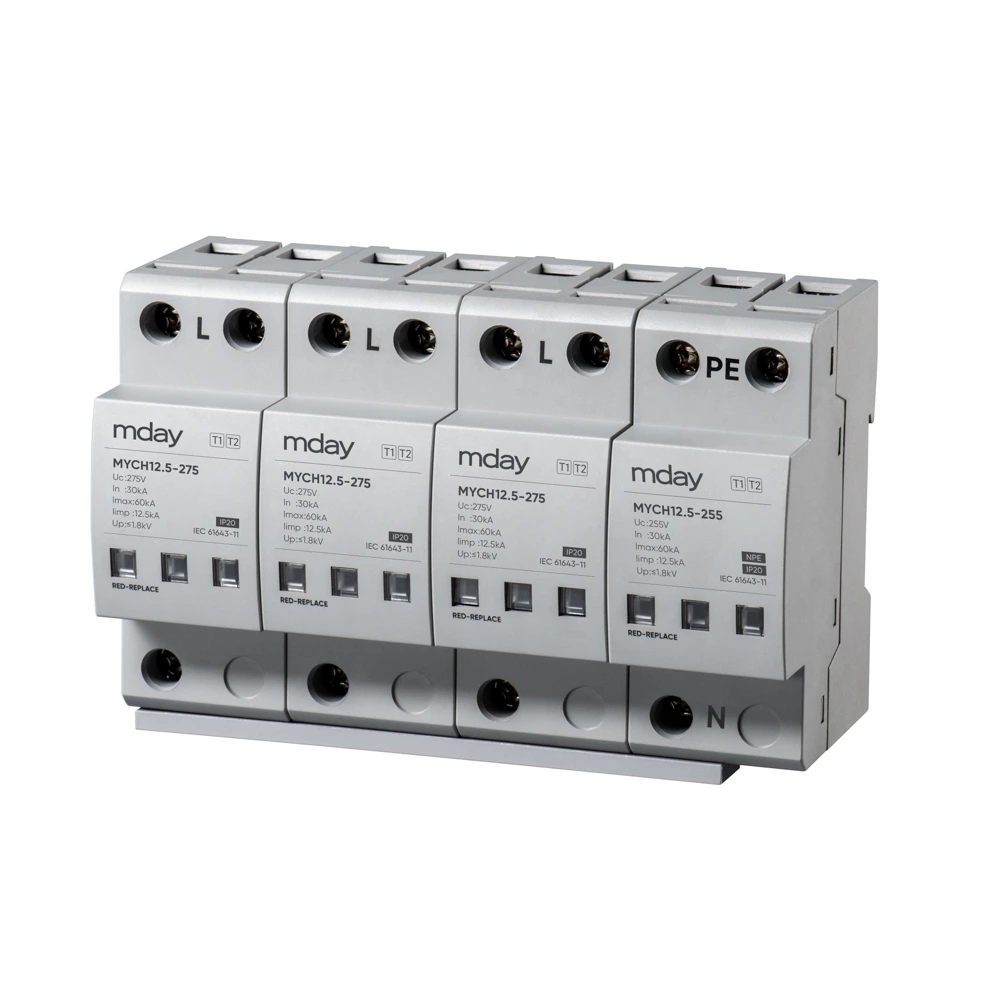

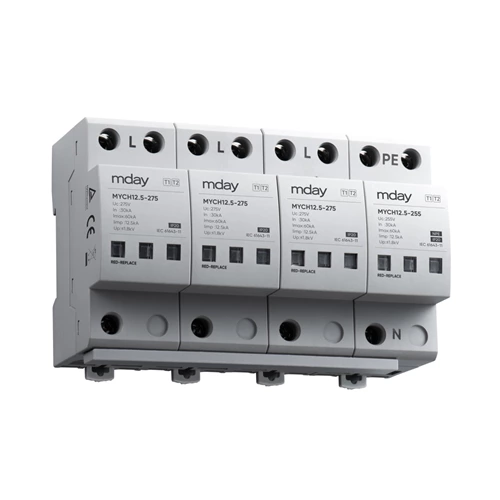

3p+npe Lmax60ka Three Phase Spike Protection Circuit 3 Phase Surge Protection Device

· MODEL:
MDH12.5-275 3P+NPE
· TYPE:
T1+T2
· Iimp:
12.5kA
· In/Imax:
30kA/60kA
· Conform to:
IEC/EN 61643-11,GB/T 18802.11
· Certification:
UKCA/CE/CB/TUV/ROHS/REACH/CQC
· Delivery Time:
1-100PCS within 7 days/100-1000PCS within 10 days
· Payment Terms:
L/C, T/T, Western Union, Paypal
· Supply Ability:
100000 pcs per month

 3p+npe Lmax60ka Three Phase Spike Protection Circuit 3 Phase Surge Protection Device

Mday Type   MDH12.5-275 MDH12.5-320 MDH12.5-385 MDH12.5-440
Product Description   Type1+2 Surge Ptotective Device
AC Operating Voltage Un 230Vac 230Vac 230Vac 230Vac
Maximum Continuous Operating Voltage Uc 275Vac 320Vac 385Vac 440Vac
Temporary Overvoltage Test Value TOV-5s[Tolerance] Ut 335Vac 335Vac 500Vac 580Vac
Temporary Overvoltage Test Value TOV-120min[Disconnection] Ut 440Vac 440Vac 650Vac 770Vac
Nominal Discharge Current(8/20μs) In 30kA
Maximum Discharge Current(8/20μs) Imax 60kA
Lightning Impulse Current(10/350μs) Iimp 12.5kA
Voltage Protection Level Up ≤1.8kV ≤2.0kV ≤2.2kV ≤2.4kV
Short-circuit current rating Isccr 25kA
heat tripping device Insertion
Max. Backup Fuse 160A~200A gG Fuse
Mechanical properties
Product size   see the photo as below
Wiring method   screw terminal 2.5-25mm²
Normal/Fault display   green/red
Maximum remote signal load voltage/current    250V/0.5A[AC],30V/3A[DC]
Maximum cross-sectional area of remote signal connection line   1.5mm2
Installation   35mm DIN Rail
Operating Temperature range Tu -40-+85°
 Protection level   IP20
Enclosure material   Thermoplastic material, compliant with UL94-V0

Mday's adopts fully automatic machine double-sided soldering technology

Tripping side:
1. Automatic soldering technology for both sides, stable connection,and no false soldering.
2. Adopt chromium-free  tin material, more green and environmentally friendly.
3. Double-layer thickened copper design, high flow, more stable.
Chip side:
1. Accurate parameters, every data is exactly the same as the actual product.
2. Use high-efficiency encapsulation chip design to improve heat dissipation performance and extend service life.
