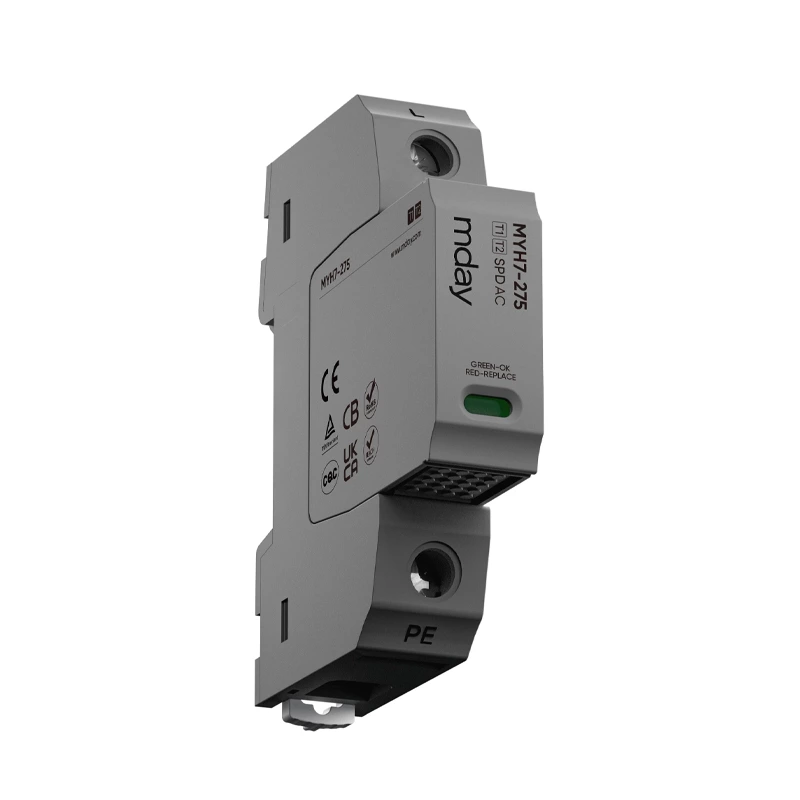

Type2+3 AC Surge Protective Device
Type 2+3 spds electrical used as the power supply end of sensitive equipment to provide the closest protection to the equipment. Most of them used for the power supply end of sensitive equipment, providing the most connections for sensitive electronic equipment, communication equipment, computers, medical equipment, etc.
Nominal Discharge Current [ In ]: 10kA
Maximum Discharge Current [ Imax ]: 20kA
Operating Voltage [ Un ]: 230V
Maximum Continuous Operating Voltage[ Uc ]: 275V/320V/385V/440V
Pluggable Module, Built-in Thermal trip, Fault indication, Remote warning optional.
Uc:275V/320V/385V/440V In:10kA Imax:20kA
Model: MYN20-AC 1P
Uc:275V/320V/385V/440V In:10kA Imax:20kA
Model: MYN20-AC 2P
Uc:275V/320V/385V/440V In:10kA Imax:20kA
Model: MYN20-AC 1P+NPE
Uc:275V/320V/385V/440V In:10kA Imax:20kA
Model: MYN20-AC 3P
Uc:275V/320V/385V/440V In:10kA Imax:20kA
Model: MYN20-AC 4P
