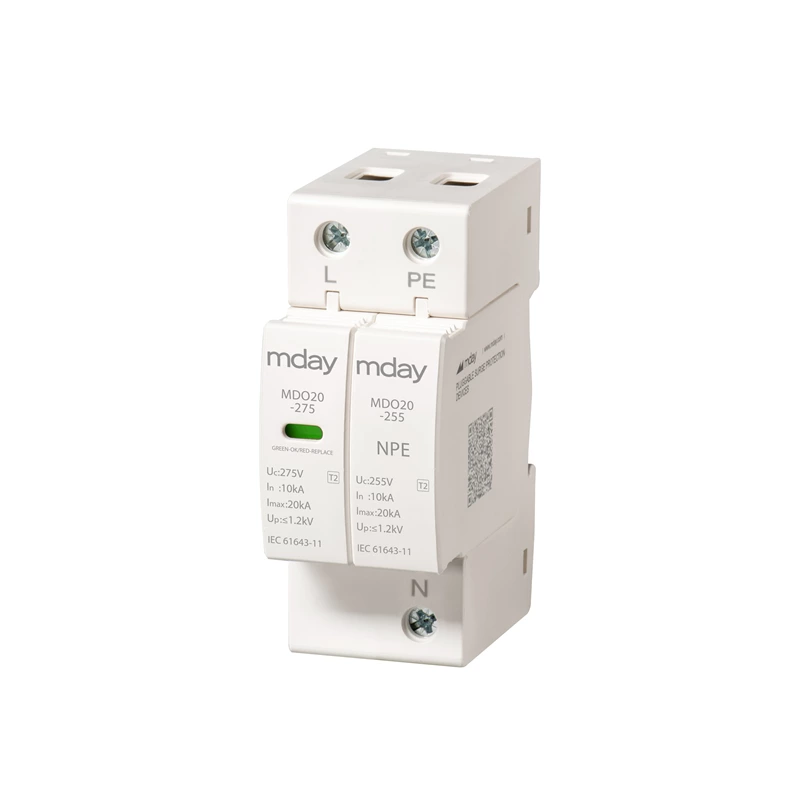

Type2 AC Surge Protective Device
Type2 spd device price used at secondary distribution boards to transfer indirect lightning current. Most of them are used in medium lightning risk areas such as power distribution boards inside buildings, office buildings, and residential buildings, etc.
Nominal Discharge Current [ In ]: 10kA
Maximum Discharge Current [ Imax ]: 20kA
Operating Voltage [ Un ]: 230V
Maximum Continuous Operating Voltage[ Uc ]: 275V/320V/385V/420V
Pluggable Module, Built-in Thermal trip, Fault indication, Remote warning optional.
Uc:275V/320V/385V/440V In:10kA Imax:20kA
Model: MDO20-AC 1P
Uc:275V/320V/385V/440V In:10kA Imax:20kA
Model: MDN20-AC 2P
Uc:275V/320V/385V/440V In:10kA Imax:20kA
Model: MDO20-AC 1P+NPE
Uc:275V/320V/385V/440V In:10kA Imax:20kA
Model: MDO20-AC 3P
Uc:275V/320V/385V/440V In:10kA Imax:20kA
Model: MDO20-AC 4P
