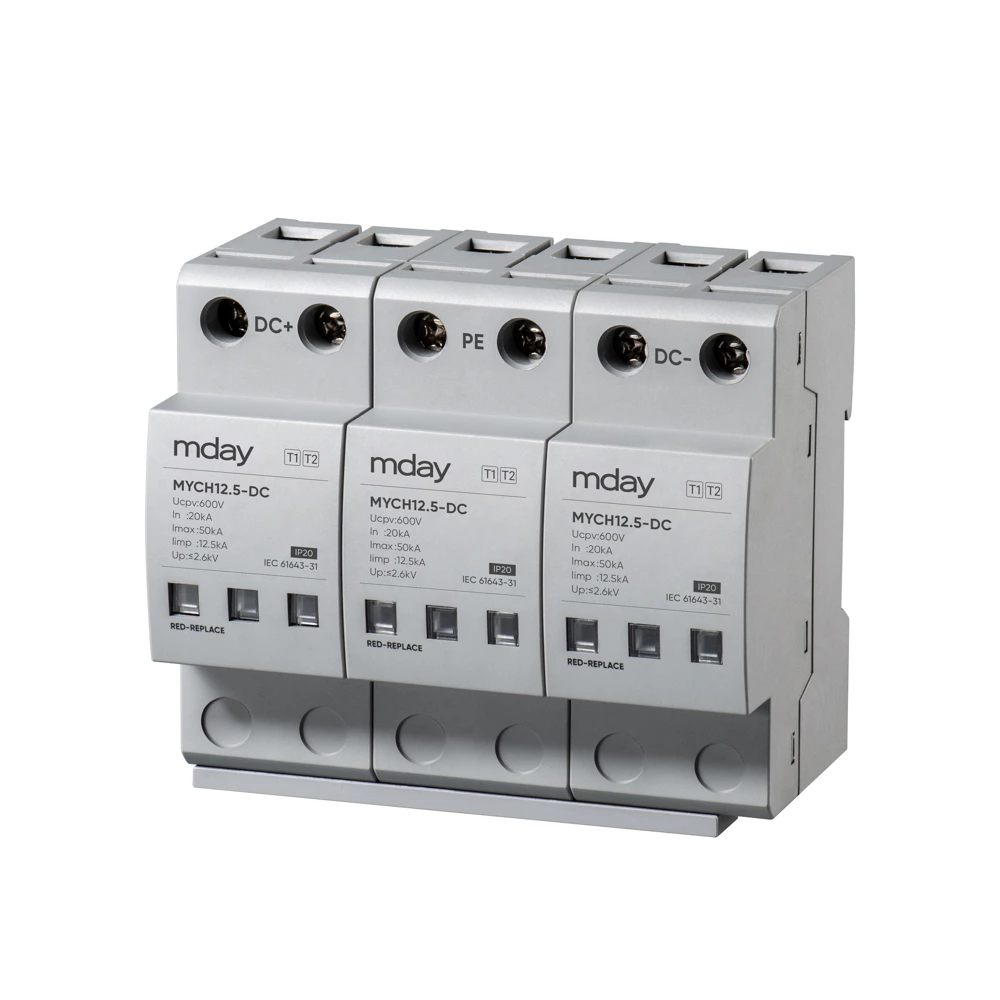

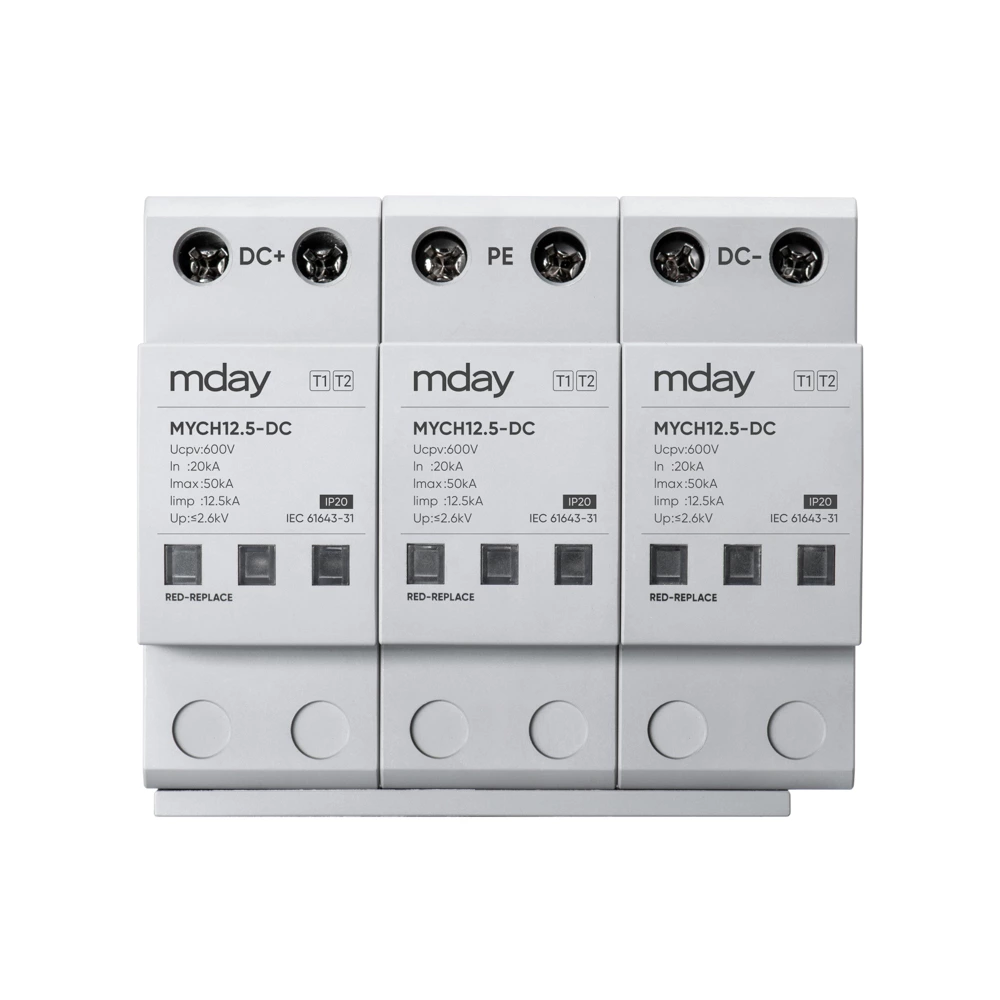

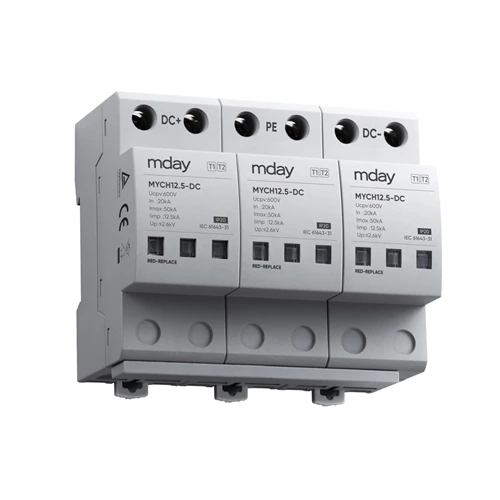

Voltage Protector For Dc 3p T1 12.5ka 600v 1000v Pv Surge Protection

· MODEL:
MYCH12.5-DC600
· TYPE:
T1+T2
· Iimp:
12.5kA
· In/Imax:
20kA/50kA
· Conform to:
IEC/EN 61643-31,GB/T 18802.31
· Certification:
UKCA/CE/CB/TUV/ROHS/REACH/CQC
· Delivery Time:
1-100PCS within 7 days/ 100-1000PCS within 10 days
· Payment Terms:
L/C, T/T, Western Union, Paypal
· Supply Ability:
100000 pcs per month

Voltage Protector For Dc 3p T1 12.5ka 600v 1000v Pv Surge Protection

Mday Type   MYCH9-DC600 MYCH9-DC800 MYCH9-DC1000 MYCH9-DC1200 MYCH9-DC1500
Product Description   Type1+2 Surge Ptotective Device
Maximum Continuous Operating Voltage Ucpv 600Vdc 800Vdc 1000Vdc 1200Vdc 1500Vdc
Nominal Discharge Current(8/20μs) In 20kA
Maximum Discharge Current(8/20μs) Imax 50kA
 Lightning Impulse Current(10/350μs) limp 12.5kA
Total discharge current for multipole SPD(10/350μs) Itotal 25kA
Voltage Protection Level Up ≤2.6kV ≤3.2kV ≤3.8kV ≤4.5kV ≤5.2kV
Response Time tA ≤25ns
Short-circuit current rating Iscpv 10kA
heat tripping device Insertion
Max. Backup Fuse 160-200A gPV FUSE
Mechanical properties
Product size   see the photo as below
Wiring method   screw terminal 2.5-25mm²
Normal/Fault display   green/red
Maximum remote signal load voltage/current    250V/0.5A[AC],30V/3A[DC]
Maximum cross-sectional area of remote signal connection line   1.5mm2
Installation   35mm DIN Rail
Operating Temperature range Tu -40-+85°
 Protection level   IP20
Enclosure material   Thermoplastic material, compliant with UL94-V0

Mday's adopts fully automatic machine double-sided soldering technology

Tripping side:
1. Automatic soldering technology for both sides, stable connection,and no false soldering.
2. Adopt chromium-free  tin material, more green and environmentally friendly.
3. Double-layer thickened copper design, high flow, more stable.
Chip side:
1. Accurate parameters, every data is exactly the same as the actual product.
2. Use high-efficiency encapsulation chip design to improve heat dissipation performance and extend service life.

Voltage Protector For Dc 3p T1 12.5ka 600v 1000v Pv Surge Protection

Mday use thermoplastic materials and conform to UL94-V0.Every power strip no surge protector can pass the harsh glow wire test.

Voltage Protector For Dc 3p T1 12.5ka 600v 1000v Pv Surge Protection

Mday signs partner agreement with EPCOS for gas discharge tube surge protector's MOV development

Voltage Protector For Dc 3p T1 12.5ka 600v 1000v Pv Surge Protection

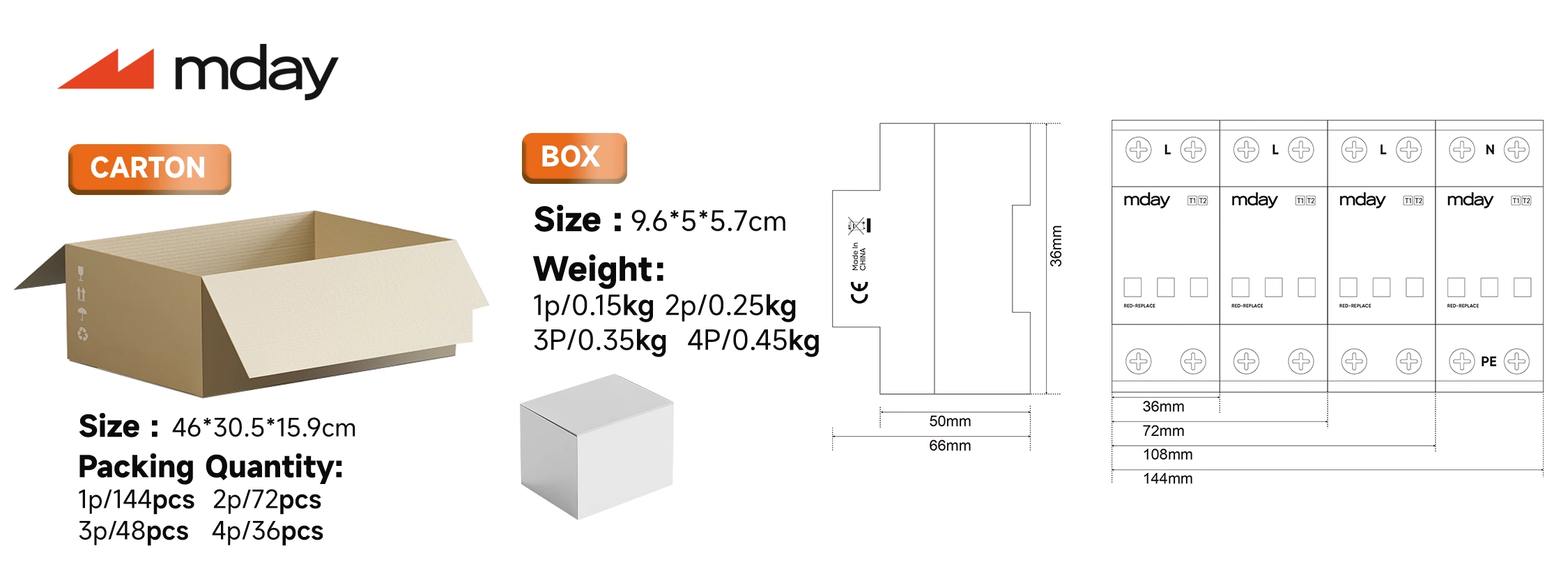

 Mday's Product size & Packing

Voltage Protector For Dc 3p T1 12.5ka 600v 1000v Pv Surge Protection

Mday Can Provide OEM Service

-Customize with your LOGO /model / specific parameters on the product
-Customize with your LOGO /model / QR code/Product Code on the stickers
-Provide free packaging design and customization services

Voltage Protector For Dc 3p T1 12.5ka 600v 1000v Pv Surge Protection

Mday's Company Profile

Voltage Protector For Dc 3p T1 12.5ka 600v 1000v Pv Surge Protection

All accessories of Mday are independently produced, including shell, copper parts and varistor chips.Therefore, the quality and production cycle of each order can be fully guaranteed.

Voltage Protector For Dc 3p T1 12.5ka 600v 1000v Pv Surge Protection

Mday's test laboratory

Mday has testing equipment such as 10/350μs 40KA and 8/20μs 120KA Simulated lightning test equipment, High voltage TOV and low voltage TOV. If necessary, we can provide the parameters of each test for customers' reference.

Voltage Protector For Dc 3p T1 12.5ka 600v 1000v Pv Surge Protection

Surge Protective Device Automatic Production Line

Mday have 3 automatic production lines, can control the production cycle and product quality of each batch of orders.

Voltage Protector For Dc 3p T1 12.5ka 600v 1000v Pv Surge Protection

certificate

Voltage Protector For Dc 3p T1 12.5ka 600v 1000v Pv Surge Protection

Mday has 7 authoritative certifications, namely TUV,UKCA,IEC,ROHS,SVHC,CE,CB. Also,Mday took the lead in applying for the German VDE certification certificate in 2024. It is worth mentioning that this is the first certified certificate in the domestic surge protective device industry. This move demonstrates the company's outstanding strength in technological innovation in 12v surge protector and integrate with international standards.

Voltage Protector For Dc 3p T1 12.5ka 600v 1000v Pv Surge Protection

Mday has participated in many exhibitions in recent years to meet new friends, establish new connections, and learn about the latest industry trends.
