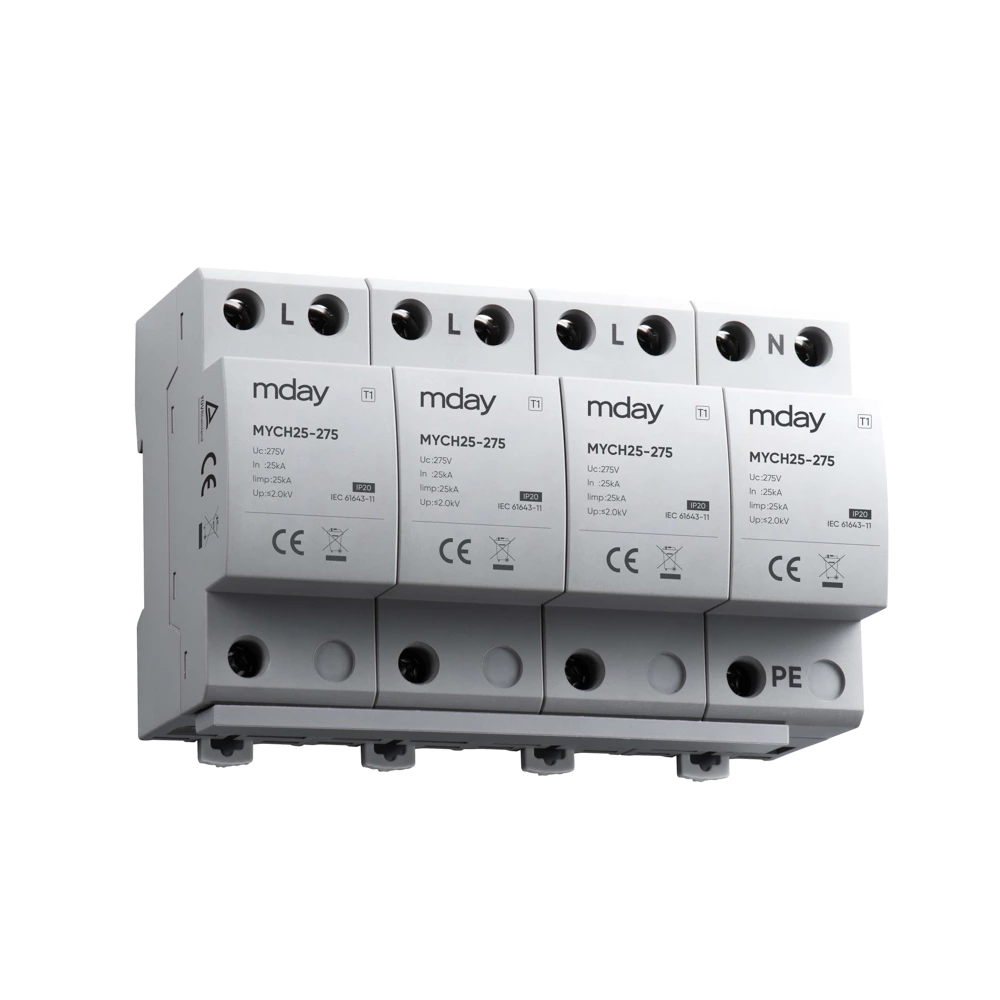

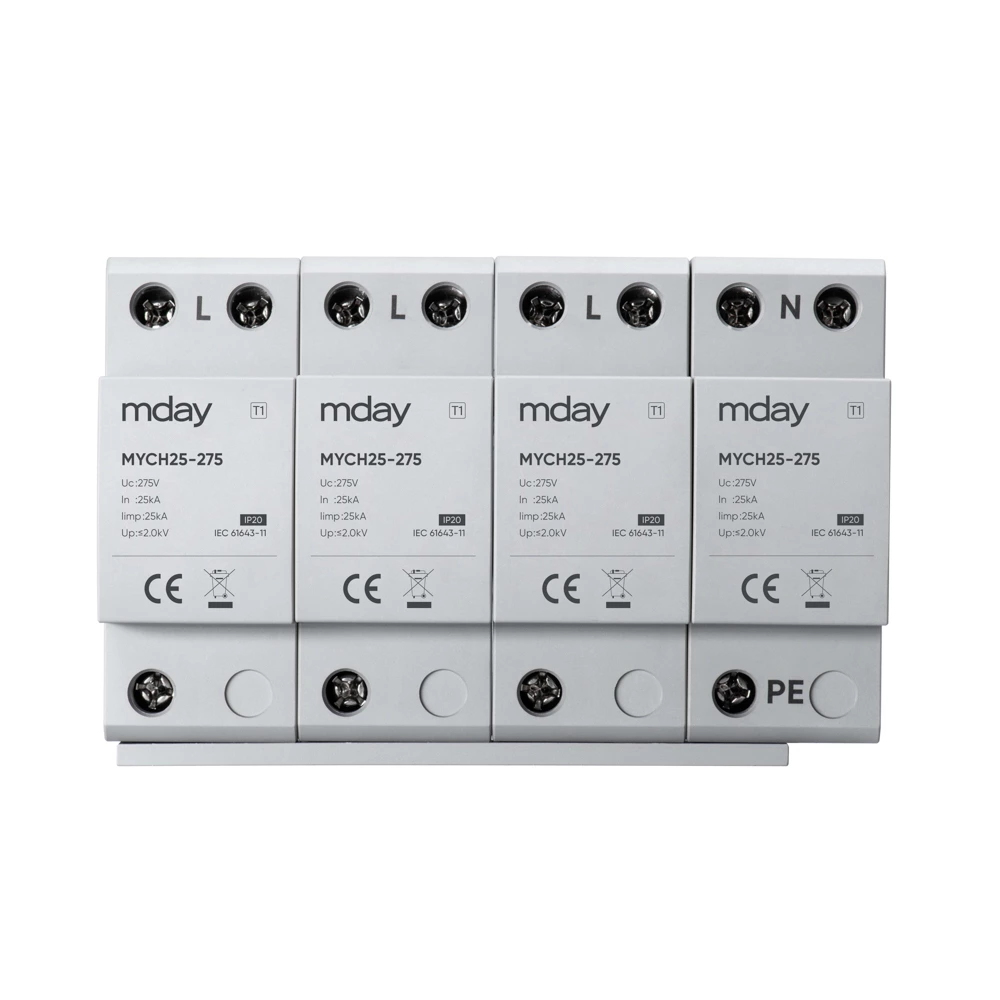

Arrester 3 Phase 4p 275v T1 25ka Commercial Electric Surge Protector

· MODEL:
MYCH25-275 4P
· TYPE:
T1
· Iimp:
25kA
· In/Imax:
25kA
· Conform to:
IEC/EN 61643-11,GB/T 18802.11
· Certification:
UKCA/CE/CB/TUV/ROHS/REACH/CQC
· Delivery Time:
1-100PCS within 7 days/100-1000PCS within 10 days
· Payment Terms:
L/C, T/T, Western Union, Paypal
· Supply Ability:
100000 pcs per month

 Arrester 3 Phase 4p 275v T1 25ka Commercial Electric Surge Protector

Mday Type   MYCH25-275 MYCH25-320 MYCH25-385 MYCH25-440
Product Description   Type1 Surge Ptotective Device
AC Operating Voltage Un 230Vac 230Vac 230Vac 230Vac
Maximum Continuous Operating Voltage Uc 275Vac 320Vac 385Vac 440Vac
Temporary Overvoltage Test Value TOV-5s[Tolerance] Ut 335Vac 335Vac 500Vac 580Vac
Temporary Overvoltage Test Value TOV-120min[Disconnection] Ut 440Vac 440Vac 650Vac 770Vac
Nominal Discharge Current(8/20μs) In 25kA
Lightning Impulse Current(10/350μs) Iimp 25kA
Voltage Protection Level Up ≤2.0kV ≤2.0kV ≤2.0kV ≤2.0kV
Short-circuit current rating Isccr 25kA
heat tripping device Insertion
Max. Backup Fuse 315A gG Fuse
Mechanical properties
Product size   see the photo as below
Wiring method   screw terminal 2.5-25mm²
Normal/Fault display   unavailable
Maximum remote signal load voltage/current    250V/0.5A[AC],30V/3A[DC]
Maximum cross-sectional area of remote signal connection line   1.5mm2
Installation   35mm DIN Rail
Operating Temperature range Tu -40-+85°
 Protection level   IP20
Enclosure material   Thermoplastic material, compliant with UL94-V0

Mday's adopts fully automatic machine double-sided soldering technology

Tripping side:
1. Automatic soldering technology for both sides, stable connection,and no false soldering.
2. Adopt chromium-free  tin material, more green and environmentally friendly.
3. Double-layer thickened copper design, high flow, more stable.
Chip side:
1. Accurate parameters, every data is exactly the same as the actual product.
2. Use high-efficiency encapsulation chip design to improve heat dissipation performance and extend service life.

Arrester 3 Phase 4p 275v T1 25ka Commercial Electric Surge Protector

Mday use thermoplastic materials and conform to UL94-V0.Everysurge protected wall outlet can pass the harsh glow wire test.

Arrester 3 Phase 4p 275v T1 25ka Commercial Electric Surge Protector

Mday signs partner agreement with EPCOS for spd mcb's MOV development

Arrester 3 Phase 4p 275v T1 25ka Commercial Electric Surge Protector

 Wiring diagram

Arrester 3 Phase 4p 275v T1 25ka Commercial Electric Surge Protector

 Mday’s Product size & Packing

Arrester 3 Phase 4p 275v T1 25ka Commercial Electric Surge Protector

Mday Can Provide OEM Service

-Customize with your LOGO /model / specific parameters on the product
-Customize with your LOGO /model / QR code/Product Code on the stickers
-Provide free packaging design and customization services

Arrester 3 Phase 4p 275v T1 25ka Commercial Electric Surge Protector

Mday’s Company Profile

Arrester 3 Phase 4p 275v T1 25ka Commercial Electric Surge Protector

All accessories of Mday are independently produced, including shell, copper parts and varistor chips.Therefore, the quality and production cycle of each order can be fully guaranteed.

Arrester 3 Phase 4p 275v T1 25ka Commercial Electric Surge Protector

Mday‘s test laboratory

Mday has testing equipment such as 10/350μs 40KA and 8/20μs 120KA Simulated lightning test equipment, High voltage TOV and low voltage TOV. If necessary, we can provide the parameters of each test for customers' reference.

Arrester 3 Phase 4p 275v T1 25ka Commercial Electric Surge Protector

Surge Protective Device Automatic Production Line

Mday have 3 automatic production lines, can control the production cycle and product quality of each batch of orders.

Arrester 3 Phase 4p 275v T1 25ka Commercial Electric Surge Protector

certificate

Arrester 3 Phase 4p 275v T1 25ka Commercial Electric Surge Protector

Mday has 7 authoritative certifications, namely TUV,UKCA,IEC,ROHS,SVHC,CE,CB. Also,Mday took the lead in applying for the German VDE certification certificate in 2024. It is worth mentioning that this is the first certified certificate in the domestic surge protective device industry. This move demonstrates the company's outstanding strength in best power surge protector for computer for home and integrate with international standards.

Arrester 3 Phase 4p 275v T1 25ka Commercial Electric Surge Protector

Mday has participated in many exhibitions in recent years to meet new friends, establish new connections, and learn about the latest industry trends.
