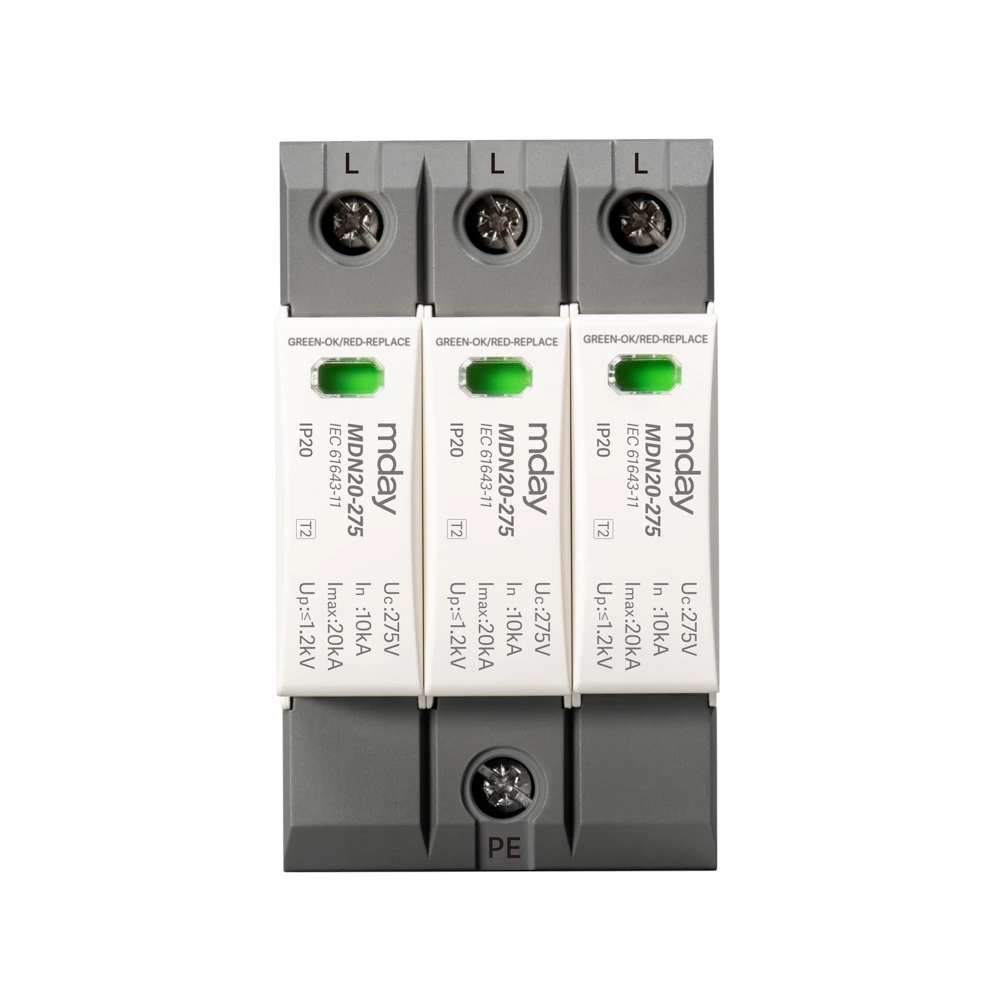

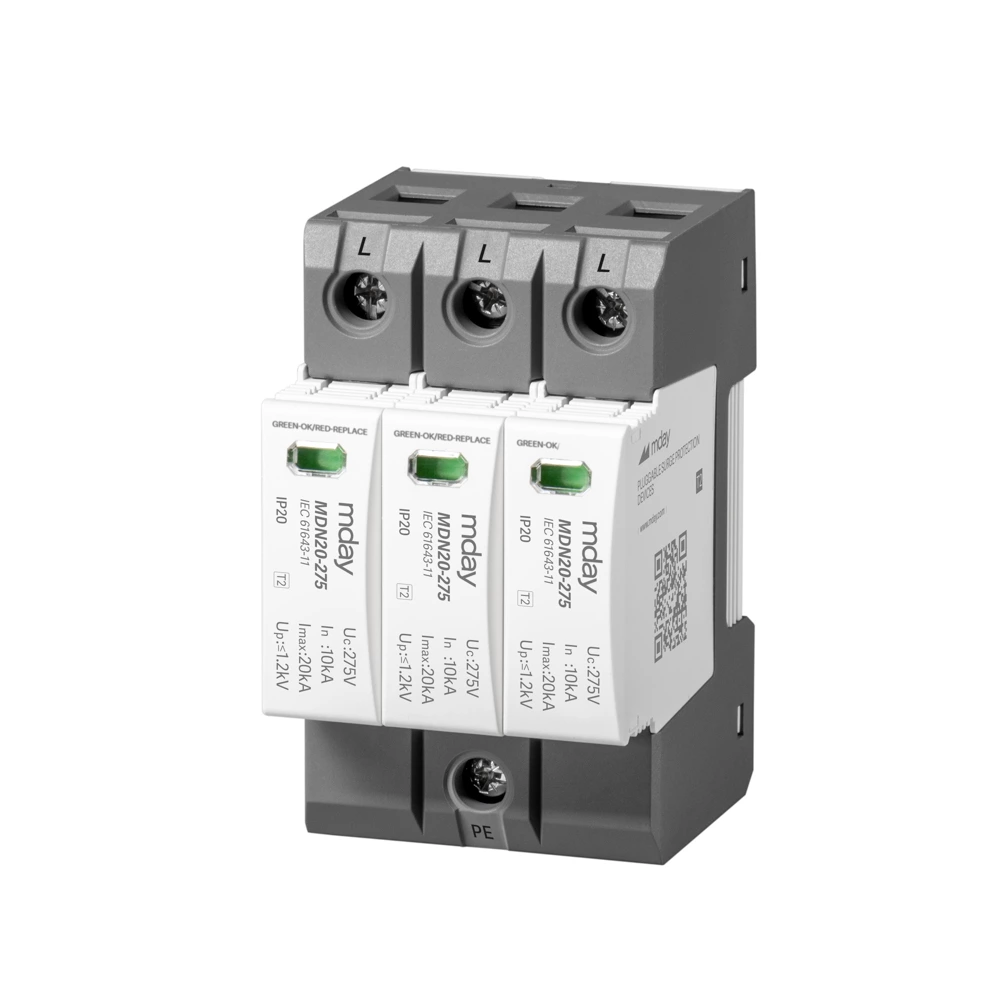

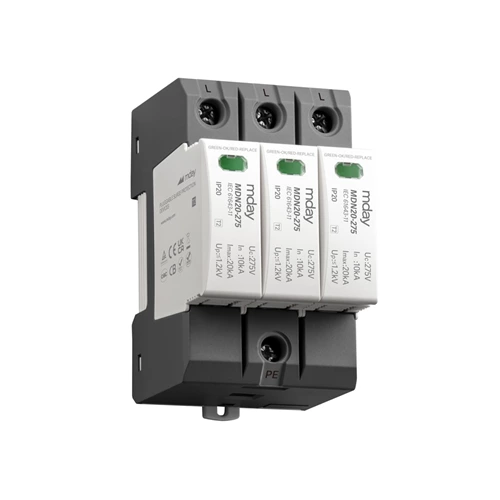

MDN20-AC 3P power outlet surge protector ac spd 3 phase

· MODEL:
MDN20-275
· TYPE:
T2+T3
· In/Imax:
10kA/20kA
· Conform to:
IEC/EN 61643-11,GB/T 18802.11
· Certification:
UKCA/CE/CB/TUV/ROHS/REACH/CQC
· Delivery Time:
1-100PCS within 7 days/100-1000PCS within 10 days
· Payment Terms:
L/C, T/T, Western Union, Paypal
· Supply Ability:
100000 pcs per month

 MDN20-AC 3P power outlet surge protector ac spd 3 phase

Mday Type   MDN20-275 MDN20-320 MDN20-385 MDN20-440
Product Description   Type2+3 Surge Ptotective Device
AC Operating Voltage Un 230Vac 230Vac 230Vac 230Vac
Maximum Continuous Operating Voltage Uc 275Vac 320Vac 385Vac 440Vac
Temporary Overvoltage Test Value TOV-5s[Tolerance] Ut 335Vac 335Vac 580Vac 580Vac
Temporary Overvoltage Test Value TOV-120min[Disconnection] Ut 440Vac 440Vac 770Vac 770Vac
Nominal Discharge Current(8/20μs) In 10kA
Maximum Discharge Current(8/20μs) Imax 20kA
Open Circuit Voltage Uoc 6kV 6kV 6kV 6kV
Voltage Protection Level Up ≤1.2kV ≤1.3kV ≤1.5kV ≤1.6kV
Short-circuit current rating Isccr 25kA
heat tripping device Insertion
Max. Backup Fuse 32A gG Fuse
Mechanical properties
Product size   see the photo as below
Wiring method   screw terminal 2.5-25mm²
Normal/Fault display   green/red
Maximum remote signal load voltage/current    250V/0.5A[AC],30V/3A[DC]
Maximum cross-sectional area of remote signal connection line   1.5mm2
Installation   35mm DIN Rail
Operating Temperature range Tu -40-+85°
 Protection level   IP20
Enclosure material   Thermoplastic material, compliant with UL94-V0

Mday's adopts fully automatic machine double-sided soldering technology

Tripping side:
1. Automatic soldering technology for both sides, stable connection,and no false soldering.
2. Adopt chromium-free  tin material, more green and environmentally friendly.
3. Double-layer thickened copper design, high flow, more stable.
Chip side:
1. Accurate parameters, every data is exactly the same as the actual product.
2. Use high-efficiency encapsulation chip design to improve heat dissipation performance and extend service life.

MDN20-AC 3P power outlet surge protector ac spd 3 phase

Mday use thermoplastic materials and conform to UL94-V0.Every meter surge protector can pass the harsh glow wire test.

MDN20-AC 3P power outlet surge protector ac spd 3 phase

Mday signs partner agreement with EPCOS for next-generation surge,ethernet lightning arrestor's MOV development

MDN20-AC 3P power outlet surge protector ac spd 3 phase

 Wiring diagram

MDN20-AC 3P power outlet surge protector ac spd 3 phase

 Mday’s Product size & Packing

MDN20-AC 3P power outlet surge protector ac spd 3 phase

Mday Can Provide OEM Service

-Customize with your LOGO /model / specific parameters on the product
-Customize with your LOGO /model / QR code/Product Code on the stickers
-Provide free packaging design and customization services

MDN20-AC 3P power outlet surge protector ac spd 3 phase

Mday’s Company Profile

MDN20-AC 3P power outlet surge protector ac spd 3 phase

All accessories of Mday are independently produced, including shell, copper parts and varistor chips.Therefore, the quality and production cycle of each order can be fully guaranteed.

MDN20-AC 3P power outlet surge protector ac spd 3 phase

Mday‘s test laboratory

Mday has testing equipment such as 10/350μs 40KA and 8/20μs 120KA Simulated lightning test equipment, High voltage TOV and low voltage TOV. If necessary, we can provide the parameters of each test for customers' reference.

MDN20-AC 3P power outlet surge protector ac spd 3 phase

Surge Protective Device Automatic Production Line

Mday have 3 automatic production lines, can control the production cycle and product quality of each batch of orders.

MDN20-AC 3P power outlet surge protector ac spd 3 phase

certificate

MDN20-AC 3P power outlet surge protector ac spd 3 phase

Mday has 7 authoritative certifications, namely TUV,UKCA,IEC,ROHS,SVHC,CE,CB. Also,Mday took the lead in applying for the German VDE certification certificate in 2024. It is worth mentioning that this is the first certified certificate in the domestic surge protective device industry. This move demonstrates the company's outstanding strength in technological innovation in ethernet lightning arrestor and integrate with international standards.

MDN20-AC 3P power outlet surge protector ac spd 3 phase

Mday has participated in many exhibitions in recent years to meet new friends, establish new connections, and learn about the latest industry trends.
