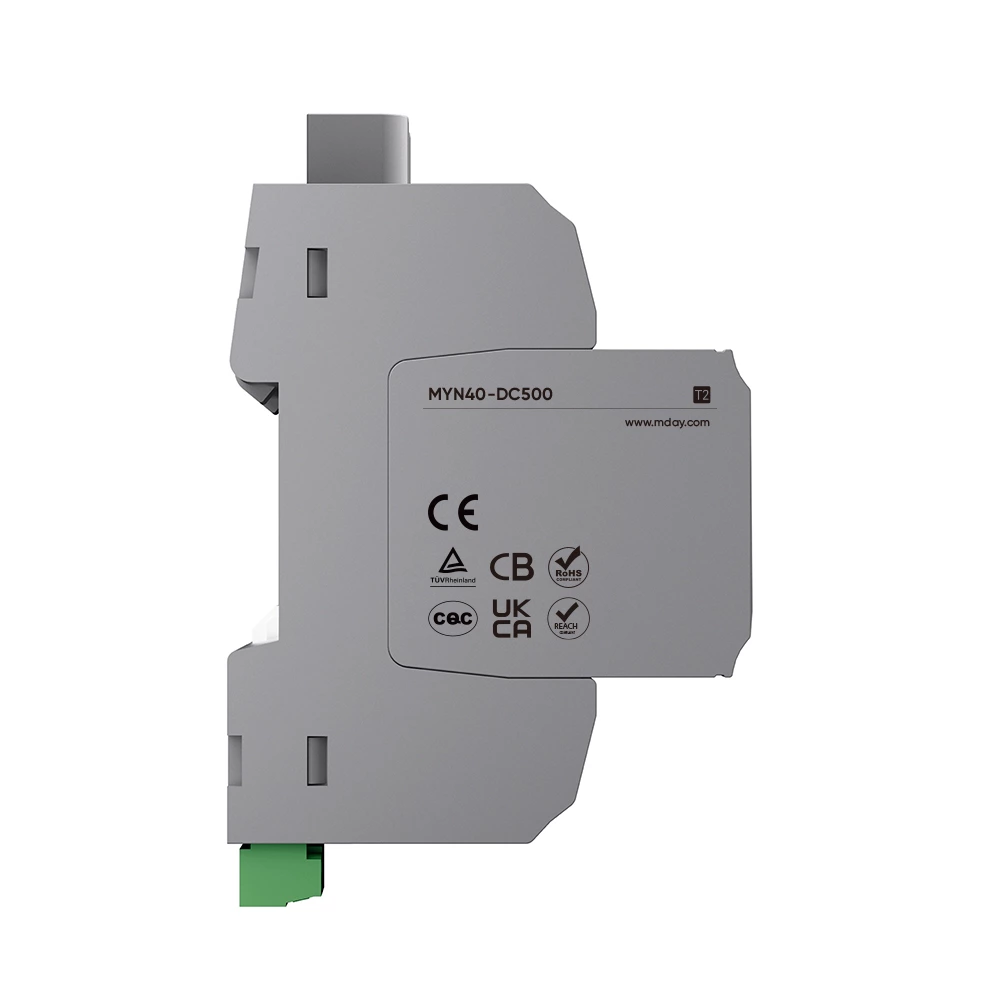

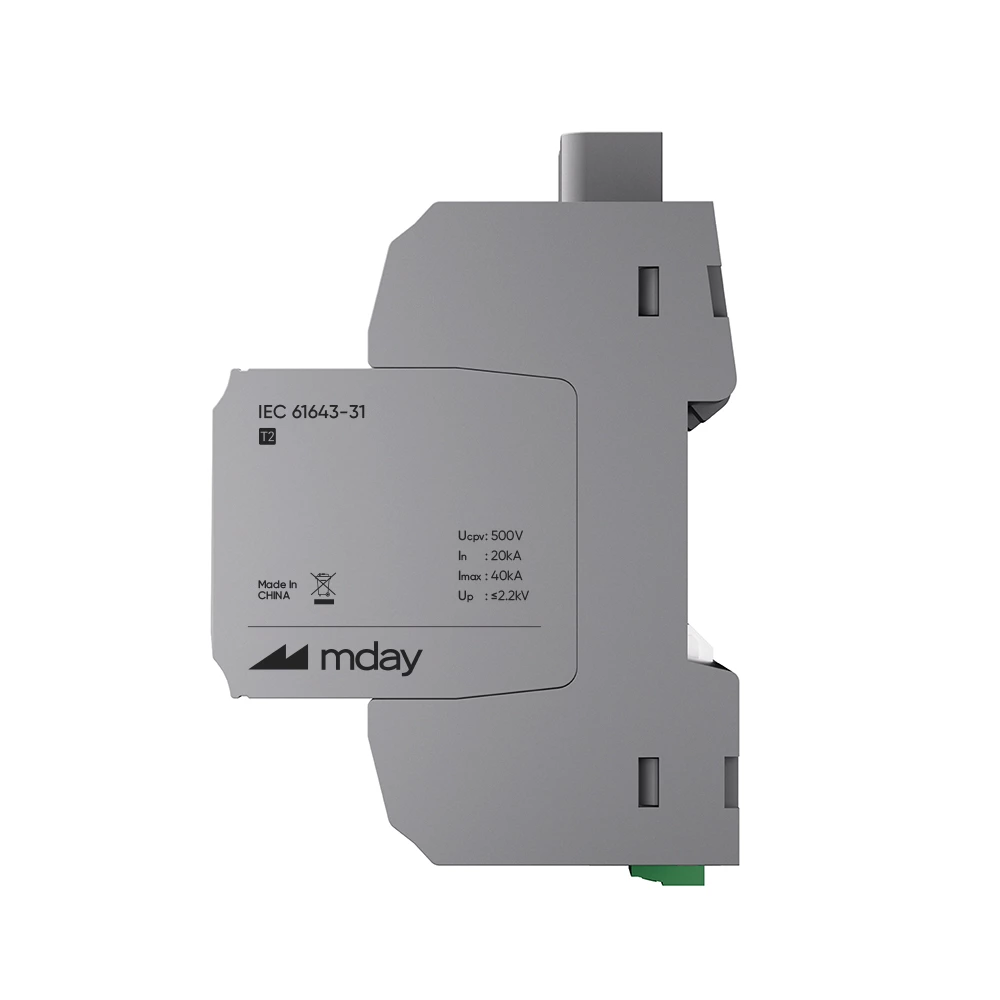

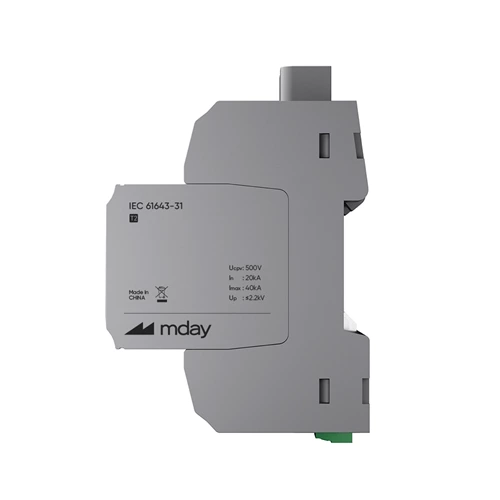

T2 2p 20ka 40ka Ac Power Spd Type 2 Surge Protection Device

· MODEL:
MYN40-DC500
· TYPE:
T2
· In/Imax:
20kA/40kA
· Conform to:
IEC/EN 61643-31,GB/T 18802.31
· Certification:
UKCA/CE/CB/TUV/ROHS/REACH/CQC
· Delivery Time:
1-100PCS within 7 days/100-1000PCS within 10 days
· Payment Terms:
L/C, T/T, Western Union, Paypal
· Supply Ability:
100000 pcs per month

 T2 2p 20ka 40ka Ac Power Spd Type 2 Surge Protection Device

Mday Type   MYN40-DC500 MYN40-DC600 MYN40-DC800 MYN40-DC1000
Product Description   Type2 Surge Ptotective Device
Maximum Continuous Operating Voltage Ucpv 500Vdc 600Vdc 800Vdc 1000Vdc
Nominal Discharge Current(8/20μs) In 20kA
Maximum Discharge Current(8/20μs) Imax 40kA
Voltage Protection Level Up ≤2.2kV ≤2.8kV ≤3.2kV ≤3.8kV
Response Time tA ≤25ns
Short-circuit current rating Iscpv 10kA
heat tripping device Insertion
Max. Backup Fuse 63A gL/gG
Mechanical properties
Product size   see the photo as below
Wiring method   screw terminal 2.5-25mm²
Normal/Fault display   green/red
Maximum remote signal load voltage/current    250V/0.5A[AC],30V/3A[DC]
Maximum cross-sectional area of remote signal connection line   1.5mm2
Installation   35mm DIN Rail
Operating Temperature range Tu -40-+85°
 Protection level   IP20
Enclosure material   Thermoplastic material, compliant with UL94-V0

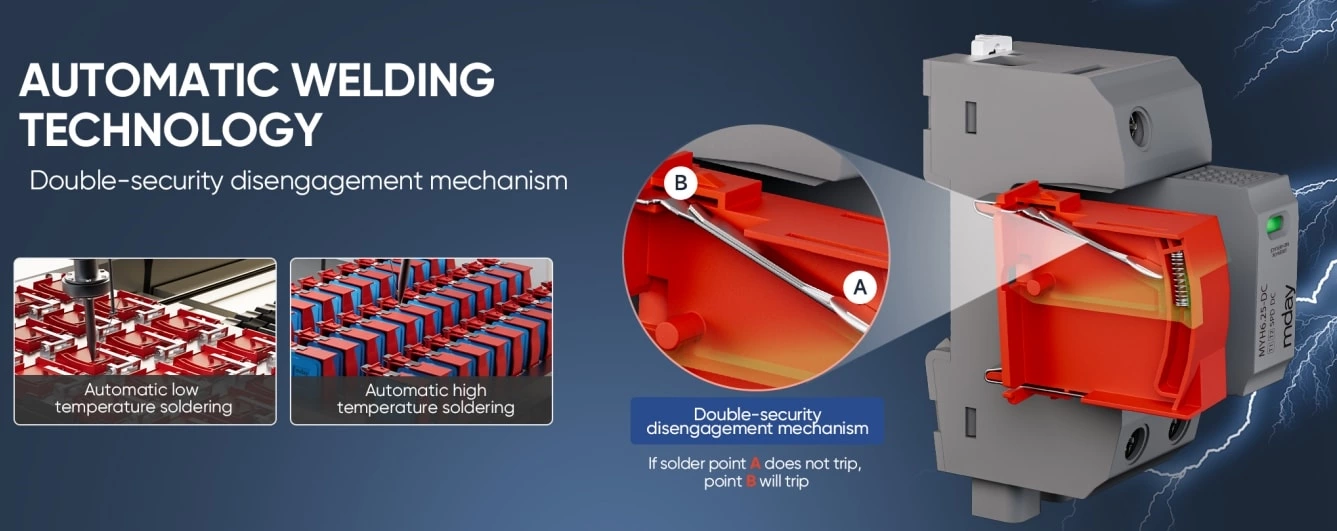

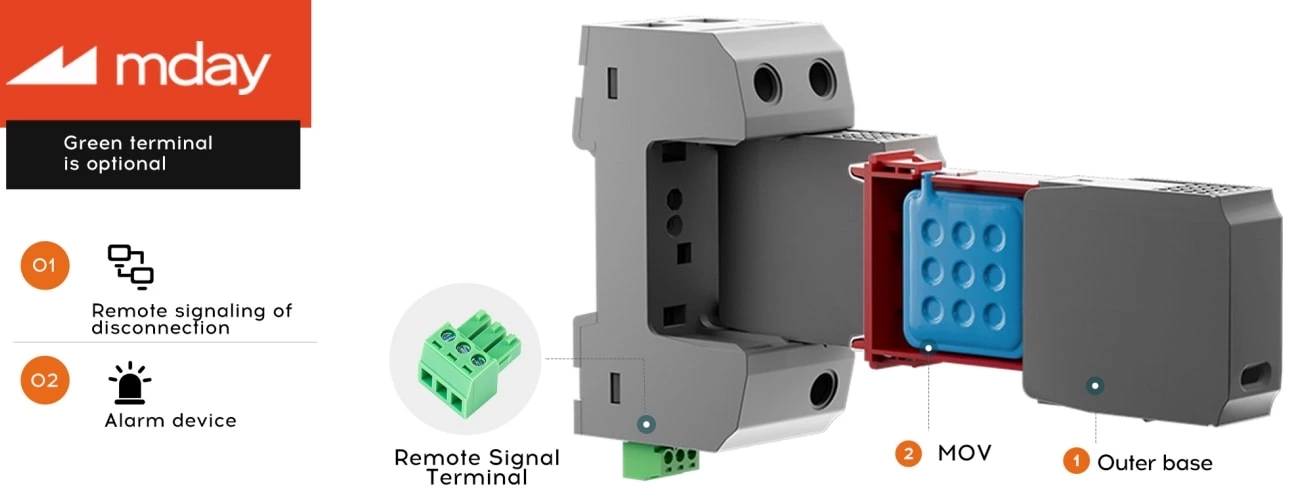

Mday's adopts fully automatic machine double-sided soldering technology

Tripping side:
1. Automatic soldering technology for both sides, stable connection,and no false soldering.
2. Adopt chromium-free  tin material, more green and environmentally friendly.
3. Double-layer thickened copper design, high flow, more stable.
Chip side:
1. Accurate parameters, every data is exactly the same as the actual product.
2. Use high-efficiency encapsulation chip design to improve heat dissipation performance and extend service life.

T2 2p 20ka 40ka Ac Power Spd Type 2 Surge Protection Device

Mday use thermoplastic materials and conform to UL94-V0.Every 24vdc surge protector can pass the harsh glow wire test.

T2 2p 20ka 40ka Ac Power Spd Type 2 Surge Protection Device

Mday signs partner agreement with EPCOS for wall surge protector with usb's MOV development

T2 2p 20ka 40ka Ac Power Spd Type 2 Surge Protection Device

 Wiring diagram

T2 2p 20ka 40ka Ac Power Spd Type 2 Surge Protection Device

 Mday’s Product size & Packing

T2 2p 20ka 40ka Ac Power Spd Type 2 Surge Protection Device

Mday Can Provide OEM Service

-Customize with your LOGO /model / specific parameters on the product
-Customize with your LOGO /model / QR code/Product Code on the stickers
-Provide free packaging design and customization services

T2 2p 20ka 40ka Ac Power Spd Type 2 Surge Protection Device

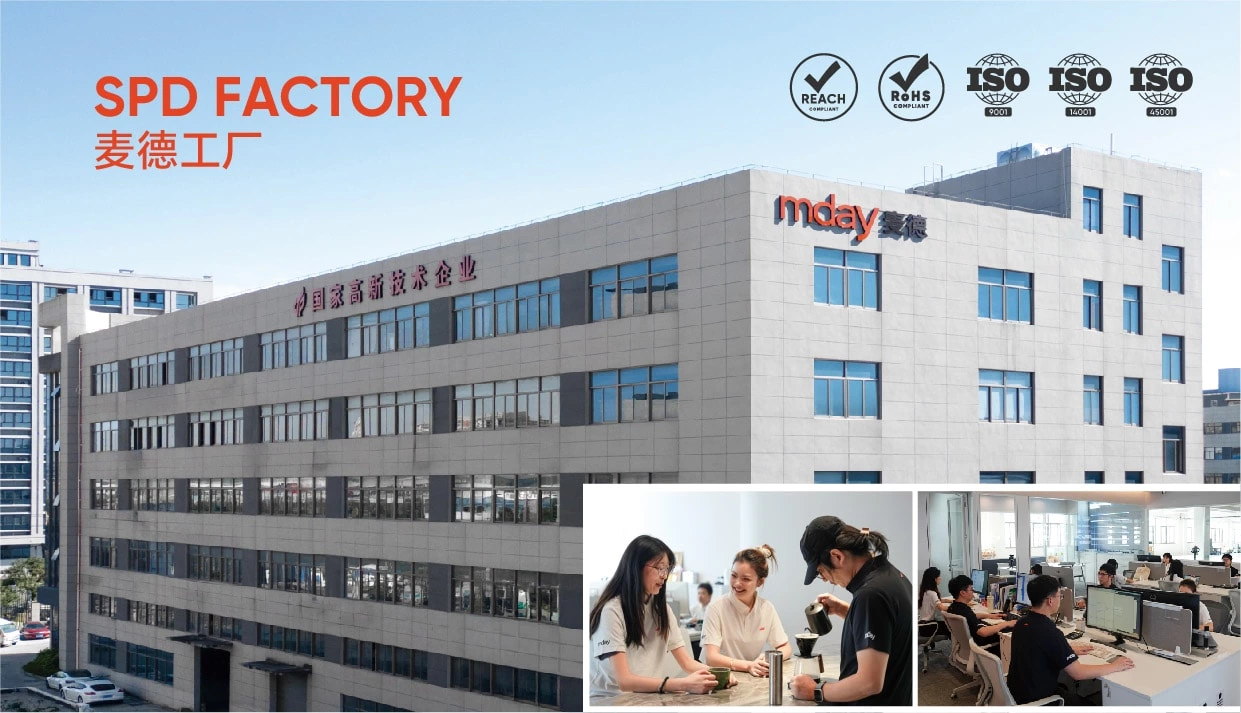

Mday’s Company Profile

T2 2p 20ka 40ka Ac Power Spd Type 2 Surge Protection Device

All accessories of Mday are independently produced, including shell, copper parts and varistor chips.Therefore, the quality and production cycle of each order can be fully guaranteed.

T2 2p 20ka 40ka Ac Power Spd Type 2 Surge Protection Device

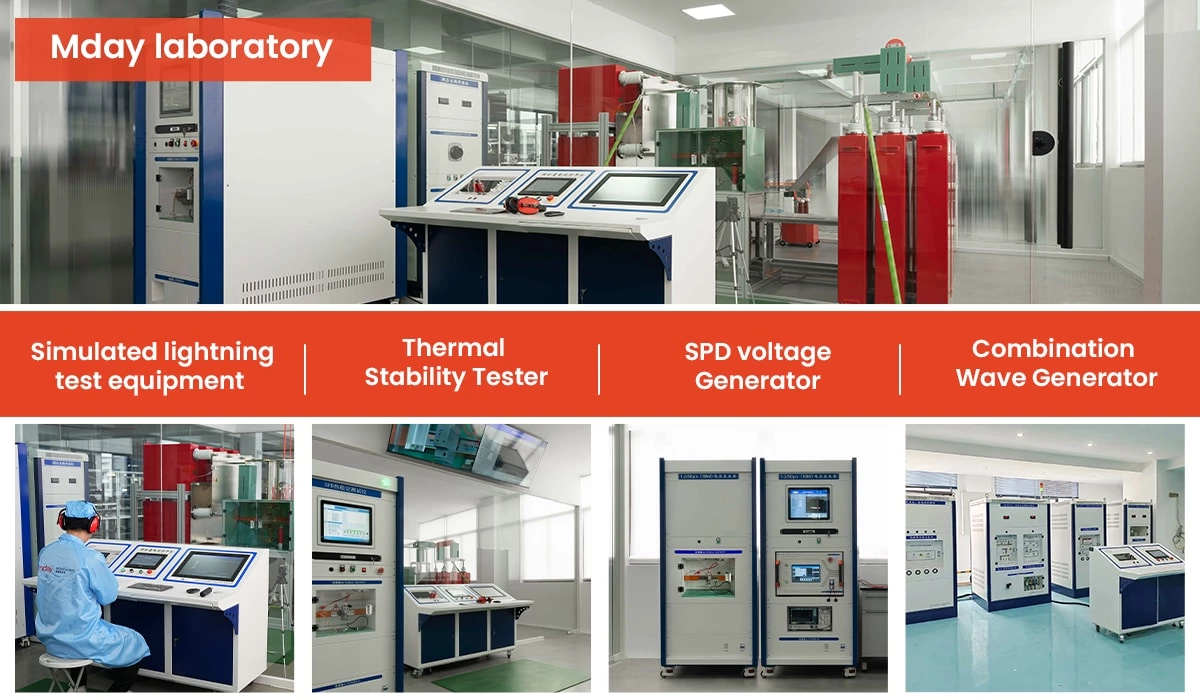

Mday‘s test laboratory

Mday has testing equipment such as 10/350μs 40KA and 8/20μs 120KA Simulated lightning test equipment, High voltage TOV and low voltage TOV. If necessary, we can provide the parameters of each test for customers' reference.

T2 2p 20ka 40ka Ac Power Spd Type 2 Surge Protection Device

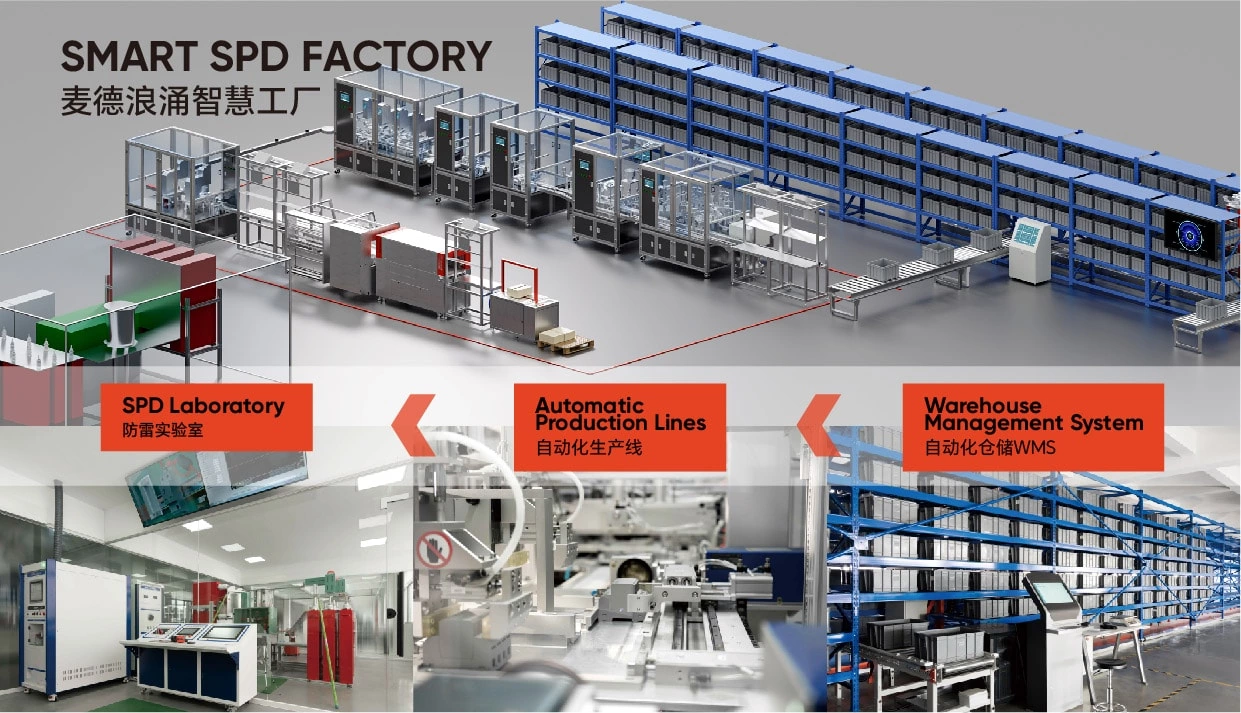

Surge Protective Device Automatic Production Line

Mday have 3 automatic production lines, can control the production cycle and product quality of each batch of orders.

T2 2p 20ka 40ka Ac Power Spd Type 2 Surge Protection Device

certificate

T2 2p 20ka 40ka Ac Power Spd Type 2 Surge Protection Device

Mday has 7 authoritative certifications, namely TUV,UKCA,IEC,ROHS,SVHC,CE,CB. Also,Mday took the lead in applying for the German VDE certification certificate in 2024. It is worth mentioning that this is the first certified certificate in the domestic surge protective device industry. This move demonstrates the company's outstanding strength in technological innovation in behind tv surge protector and integrate with international standards.

T2 2p 20ka 40ka Ac Power Spd Type 2 Surge Protection Device

Mday has participated in many exhibitions in recent years to meet new friends, establish new connections, and learn about the latest industry trends.
