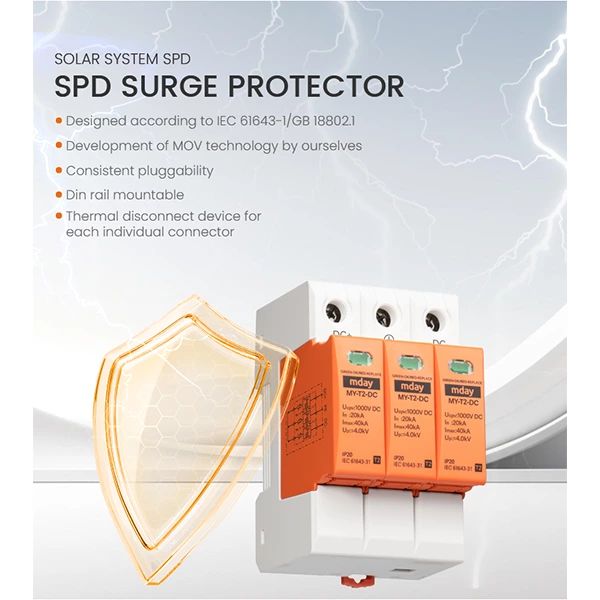

MDN40-DC T2 1000V
- Meets Class II (8/20s waveform) SPD tests
- Based on zinc oxide technology
- Using 34S MOV, the maximum will be up to 8/20μs 40kA
- No power frequency continuous flow
- The operating environment temperature is -40°C~+70°C
- Remote signaling function is optional.
- When product fails, the green window turns to red and remote signaling provides remote alarm function
Technical Data
|
||||
POLE
|
3P
|
|||
SPD Type
|
Type 2 / Class II
|
|||
Technology
|
MOV (Metal Oxide Varistors),GDT can be added in the middle
|
|||
Protection mode(s)
|
MOV/MOV+GDT
|
|||
Nominal voltage (a.c.)
|
800V
|
1000V
|
1200V
|
1500V
|
Nominal discharge current(8/20μs)
|
20kA
|
|||
Max.discharge current (8/20μs)
|
40kA
|
|||
Protection level
|
≤3.6kV
|
≤4.0kV
|
≤4.5kV
|
≤5.2kV
|
Response time
|
≤25ns
|
|||
Admissible short-circuit current
|
25kA
|
|||
Max. backup fuse
|
125A gL/gG
|
Mechanical Data
|
|
SPD configuration
|
DC system
|
Plugable
|
Available
|
Mounting
|
35mm DIN rail
|
Housing material
|
Thermoplastic,UL94 V-0
|
Operating temperature
|
-40℃...+80℃
|
Protection rating
|
IP20
|
Operating state / fault indication
|
Green / Red
|
Remote Signaling
|
Optional
|
Wiring for remote signaling
|
Max. 1.5mm solid/flexible
|
Max.Voltage / Current for remote signaling
|
250V/0.1A; 125V/0.2A; 75V/0.5A
|
Test Standards
|
IEC 61643-31 / EN 61643-31
|
Certificate
|
CE,CB,RoHS,TUV
|
size | Wiring |
