Mday Ceramic Cylindrical PV Solar Dc 1000V 6A 8A 10A 12A 15A 16A 20A 25A 30A 32A Fuse Link 10*38 for Solar PV System
- · TYPE:
- Fuse Link
- · Country Of Origin:
- Zhejiang, China
- · Brand:
- MDAY
- · Material:
- Ceramic
- · Rated Voltage:
- 1000V DC
- · Safety Standards:
- IEC
- · Breaking Capacity:
- High
- · Application:
- PV System
Product Description
 |

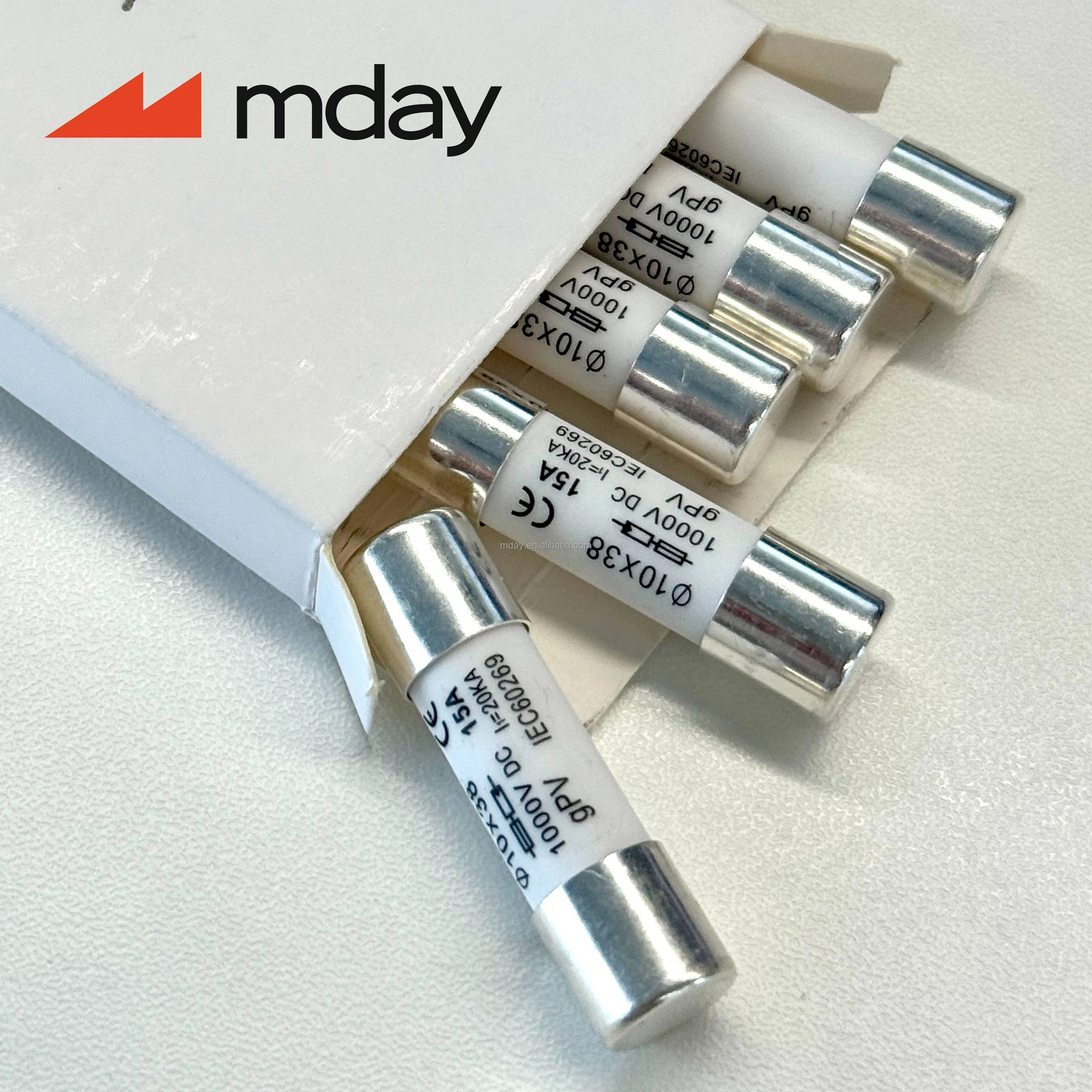

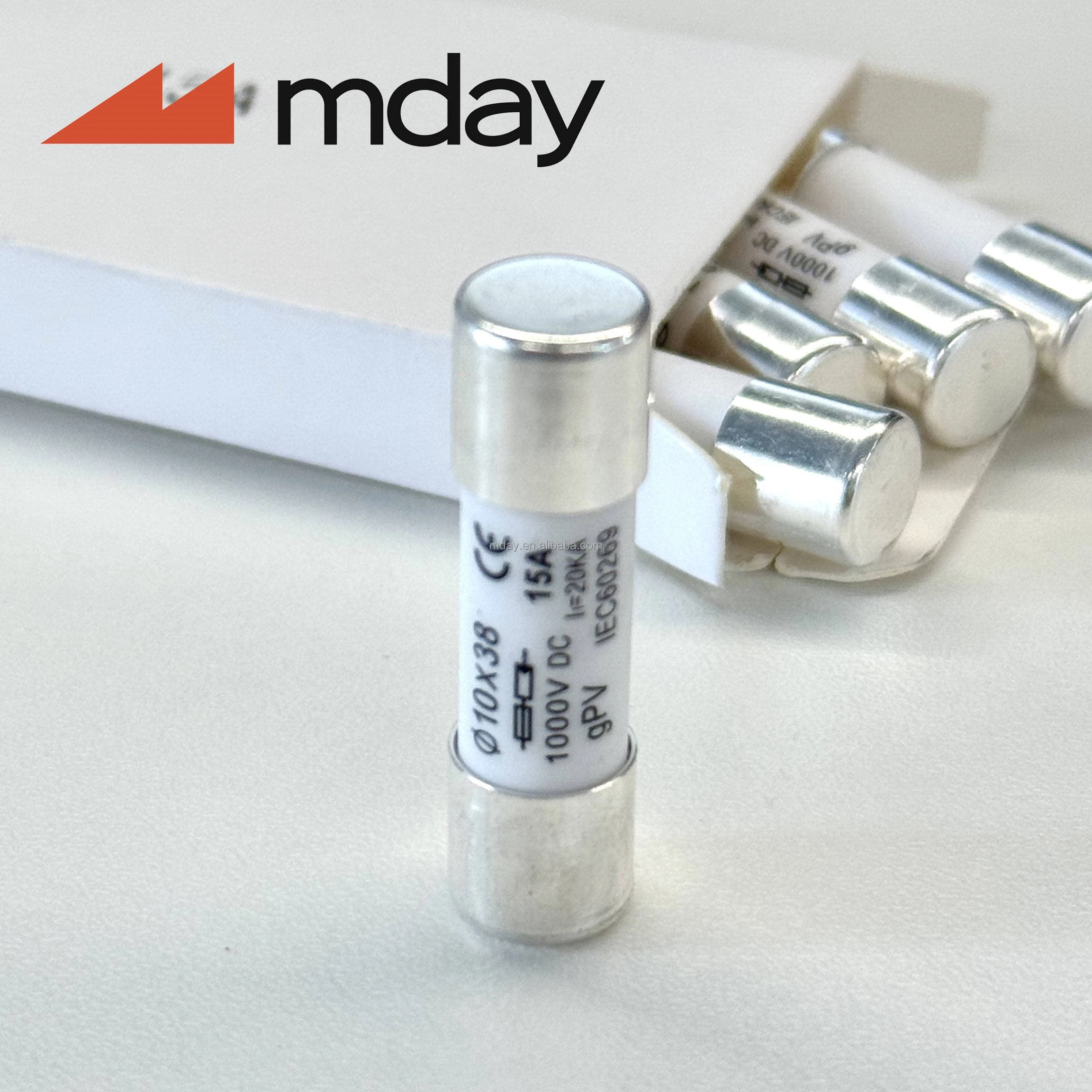

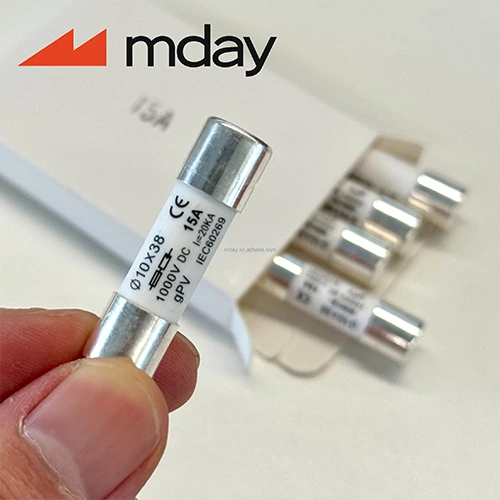

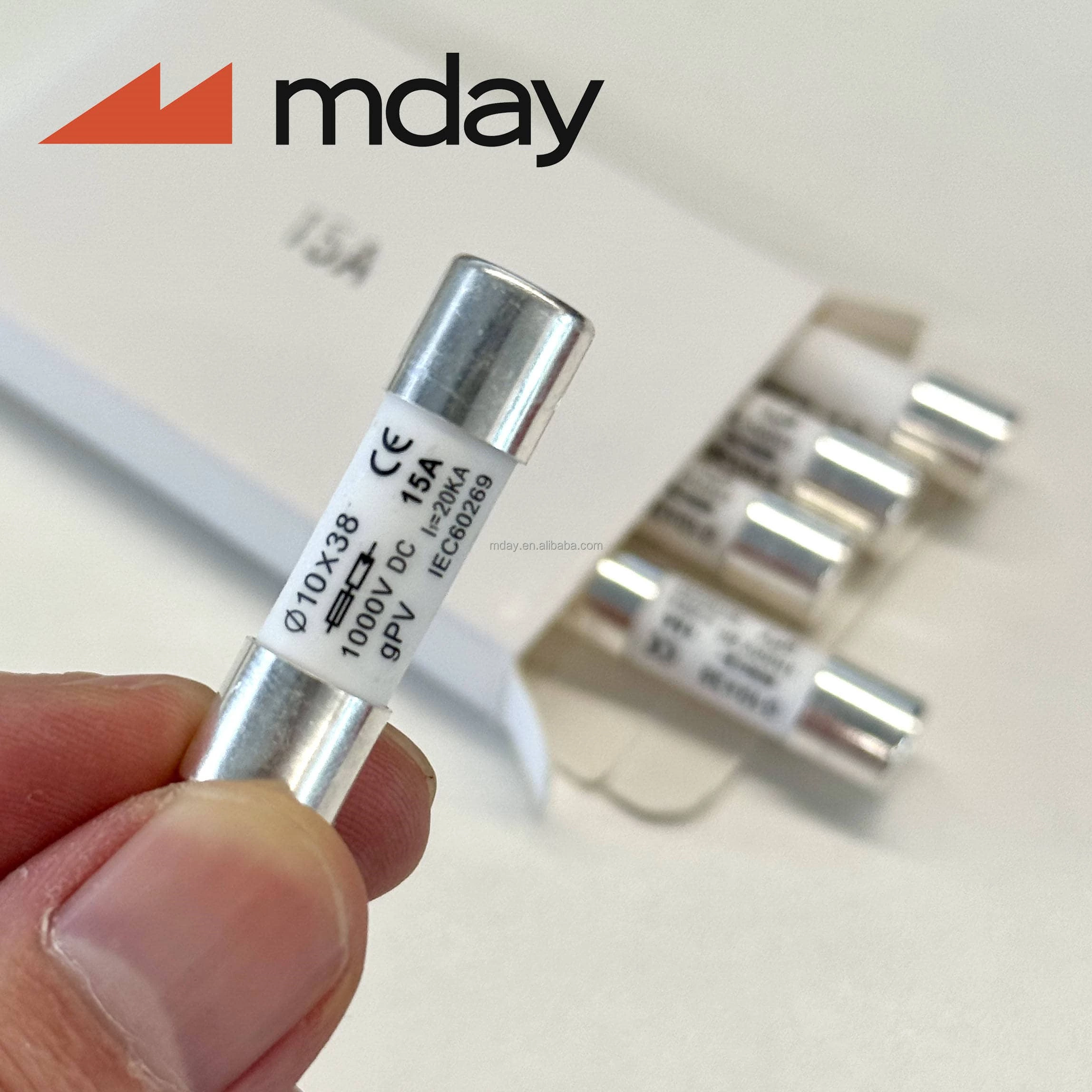

MDPV-32 10*38 1000V Fuse link Features * Adapt all solar PV module * 10*38 DC Solar PV Fuse Link * Rated current：2A-32A * Low temperature rise * Low power confumption * Long service life * standard size and compact structure |
Specification
| Product Model | MDPV- 32 | |||
| Product | Fuse link | |||

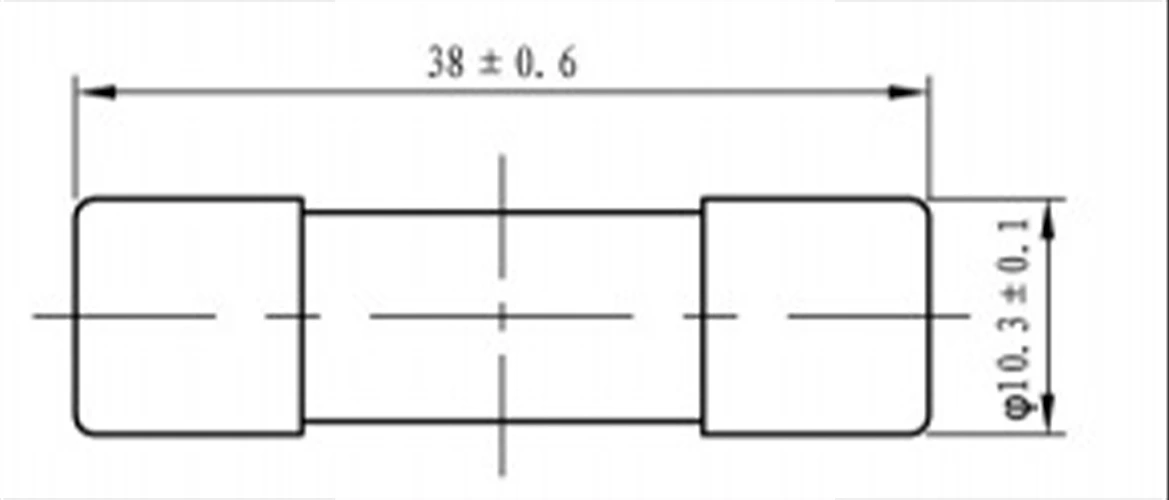

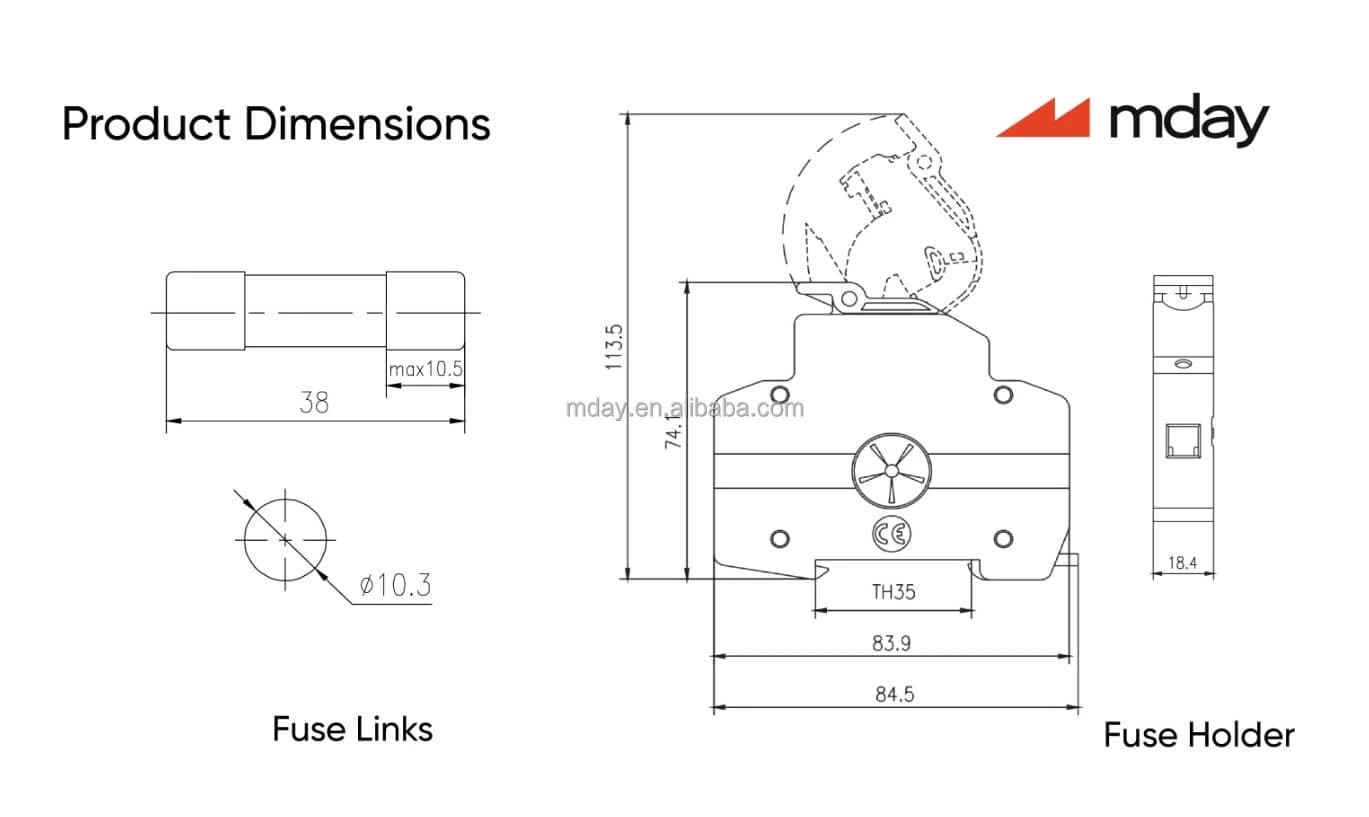

| Fuse Link Size | 10*38mm | |||
| Protection Category | gPV(full range protection of pv system) | |||
| Rated Voltage | 1000Vdc | |||
| Rated Current | 2-32A | |||
| Breaking capacity | 20KA、40KA | |||
| Time Constant | 1-3ms | |||
| Standard | IEC60269-6、UL248-19 | |||
| Typical application | PV combiner box-Solar/PV module protection | |||

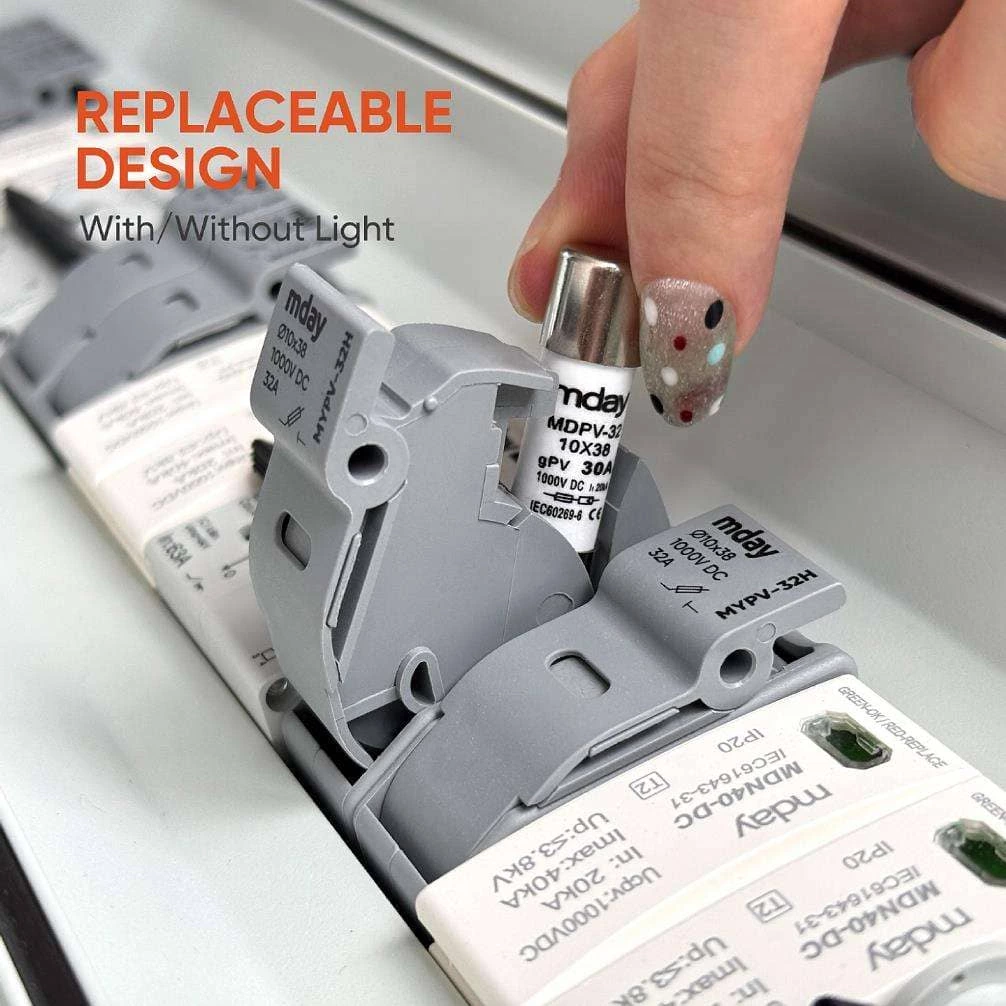

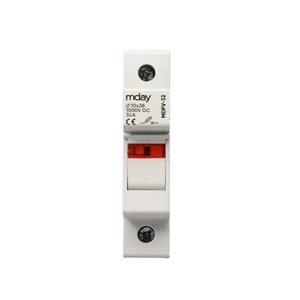

| Applicable holder ＆ base | MDPV-32/MDPV-32X/MYPV-32HX/MYPV-32H | |||
| Net Weight | 10g | |||
Product parameters
| Product code | Rated current | Breaking capacity | Power loss 1.0In(W) | Net weight |
| MDPV-32/02NF | 2A | 1000VDC TUV＆CE:20kA UL:40kA | 0.9 | 10g |
| MDPV-32/03NF | 3A | 1 | ||
| MDPV-32/04NF | 4A | 1.2 | ||
| MDPV-32/05NF | 5A | 1.3 | ||
| MDPV-32/06NF | 6A | 1.5 | ||
| MDPV-32/08NF | 8A | 1.8 | ||
| MDPV-32/10NF | 10A | 2.2 | ||
| MDPV-32/12NF | 12A | 2.3 | ||
| MDPV-32/15NF | 15A | 2.7 | ||
| MDPV-32/20NF | 20A | 3.2 | ||
| MDPV-32/25NF | 25A | 3.8 | ||
| MDPV-32/30NF | 30A | 4.5 | ||
| MDPV-32/32NF | 32A | 4.5 |
 |
 |
 |
 |
Certifications
We are factory
Mday New Energy
is a trusted manufacturer of protective components for photovoltaic systems across the globe. Our experience of working in the electrical industry for more than 12 years allows us to create surge protective devices , Fuse that comply with the latest DC standards. Through our focus on solar DC protection design, production, and marketing, we can bring brand-building PV protection solutions.
Independent production of accessories
All accessories of Mday are independently produced, including shell, copper parts and varistor chips.Therefore, the quality and production cycle of each order can be fully guaranteed.
 |
 |
 |
 |
| Injection Molding Workshop | Fuse install | Automatic Production | Power Coating |
Own test laboratory
we have testing equipment such as 10/350μs 40KA and 8/20μs 120KA Simulated lightning test equipment, High voltage TOV and low voltage TOV.If necessary, we can provide the parameters of each test for customers' reference.
 |
 |
 |
| T1 (10/350μs) and T2 ( 8/20μs) test | Fuse 0.5A-3150A action characteristic of voltage Test | Resistance Test |
Automatic Production Line
we have automatic production line, can control the production cycle and product quality of each batch of orders
 |
 |
 |
| 1.Automated assembly line | 2.Fuse | 3.Product Testing |
 |
 |
 |
| 4.Laser or Pad Printing | 5.Heat-Wrapping | 6.Packing |
Exhibition
FAQ
Q：Are you factory or trade company?
A：We are factory and can provide OEM,ODM with your demand.Plz confirm our factory video.
Q： when I can receive your quotation and detail information after send the enquiry?
A：All your enquiry will be replied in 24hours.
Q：Your DC FUSE seems perfect but what's the difference between you and other suppliers?
A：Our DC FUSE is special for Solar system all the parts in the MCB are high quality customized.
Not all the DC FUSE are Solar MCB!
Q: How About the fuse/fuse holder ,can i buy only the fuse?
A: We can sell the FUSE and holder separately and you can choose FUSE with different currents and voltage.
Q: How About the delivery term?
A: At present,we dont make enough stock for all models.
Plz confirm with salesman to get the accurate delivery term.
