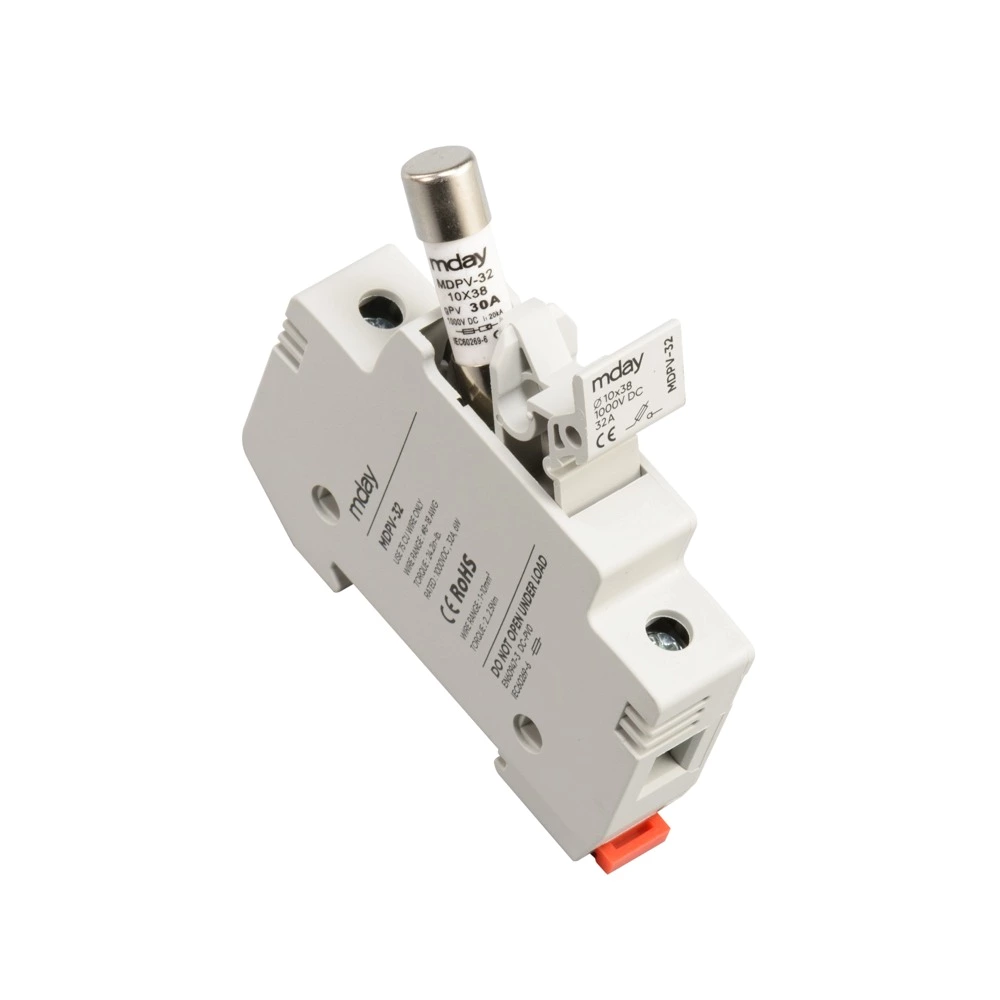

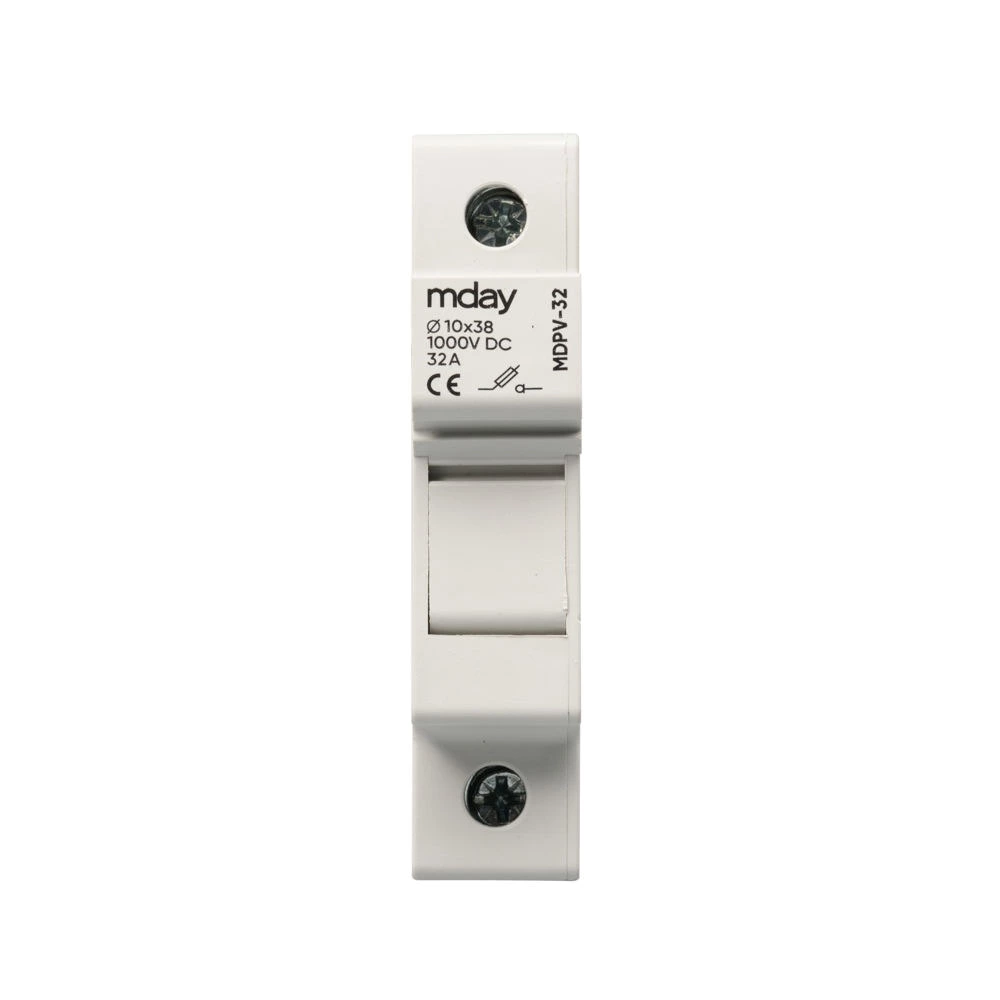

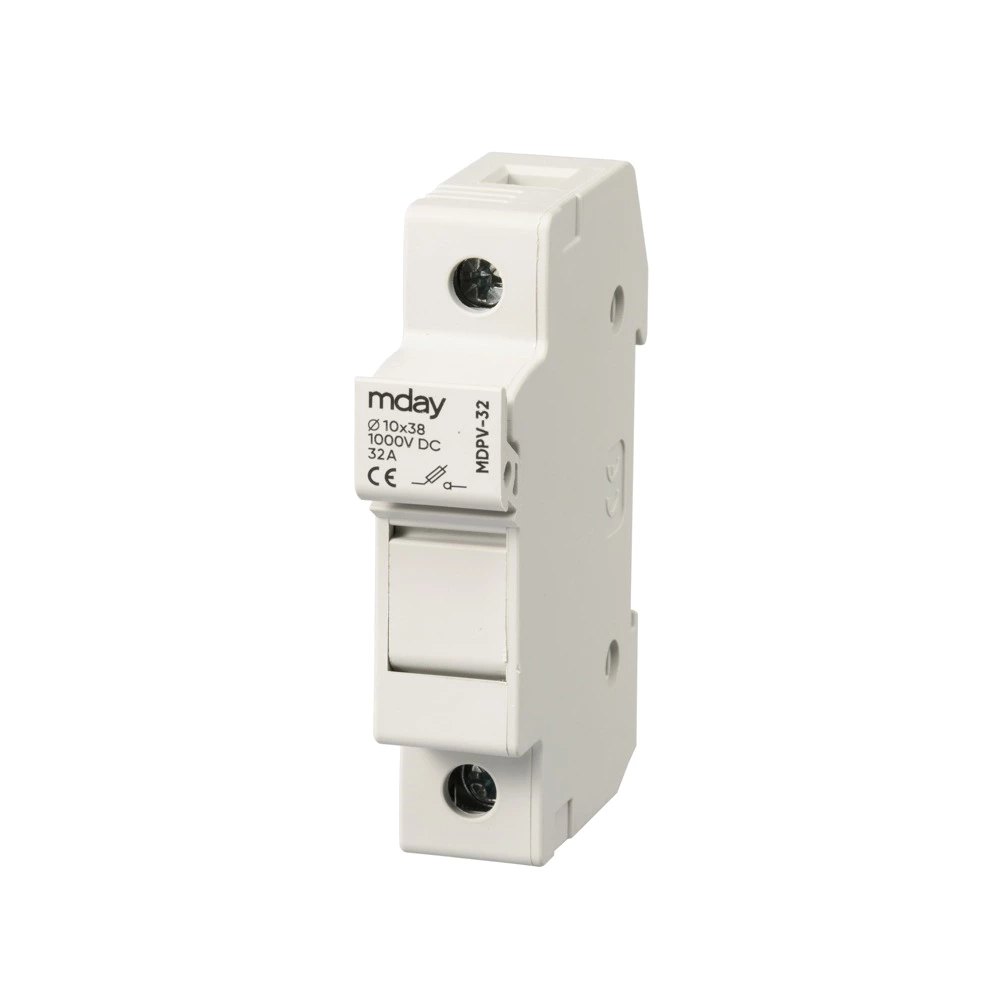

Mday MDPV-32 32A 10x38mm Solar PV System Fuse Base 1000V DC Fuse Holder for DC Combiner Box
- · MODEL:
- PV-32
- · TYPE:
- Fuse Holder
- · Country Of Origin:
- Zhejiang, China
- · Brand:
- MDAY
- · Material:
- Copper
- · Number Of Poles:
- 1
- · Use:
- high pressure
- · Safety Standards:
- IEC
- · Breaking Capacity:
- High, 4–15 kA
- · Size:
- 10*38mm
- · Class Of Operation:
- gPV
- · Strandard:
- UL248-19 / IEC60269-6
- · Time Constant:
- 1-3ms
- · Disconnection Ability:
- High tube
- · Application:
- Low Voltage
Product Description
 |

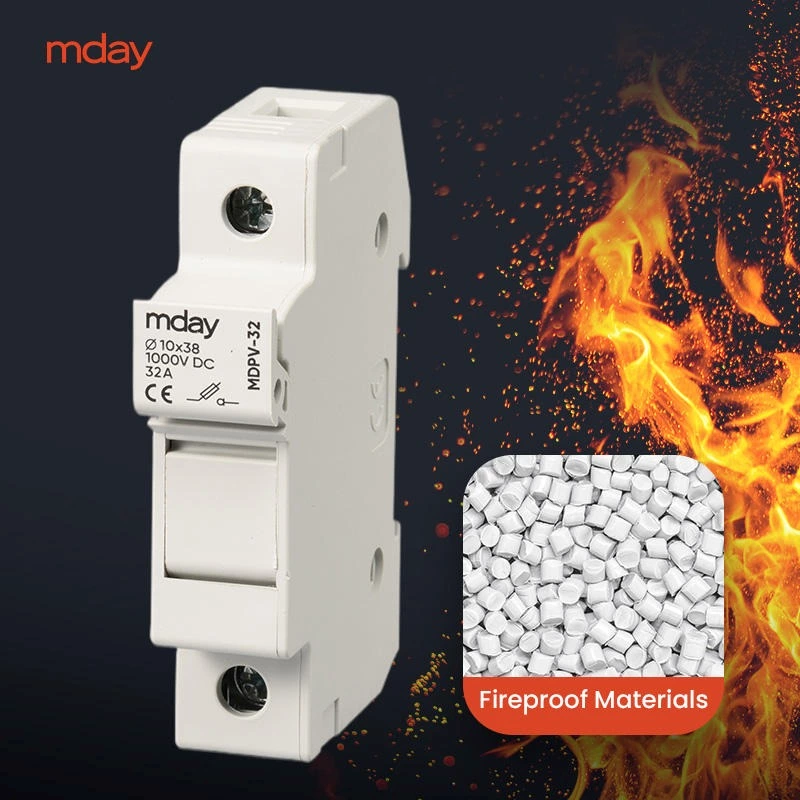

10*38 1000V fuse link holder Features for link * Adapt all solar PV module * Low temperature rise * Low power confumption * Long service life * standard size and compact structure Features for holder * Imported nylon material,V0 flame retardant,high and low temperature * ≥24h salt spray test,resistance to acid environment * silver-plated copper terminal block,low temperature rise * Indicator light is optional |

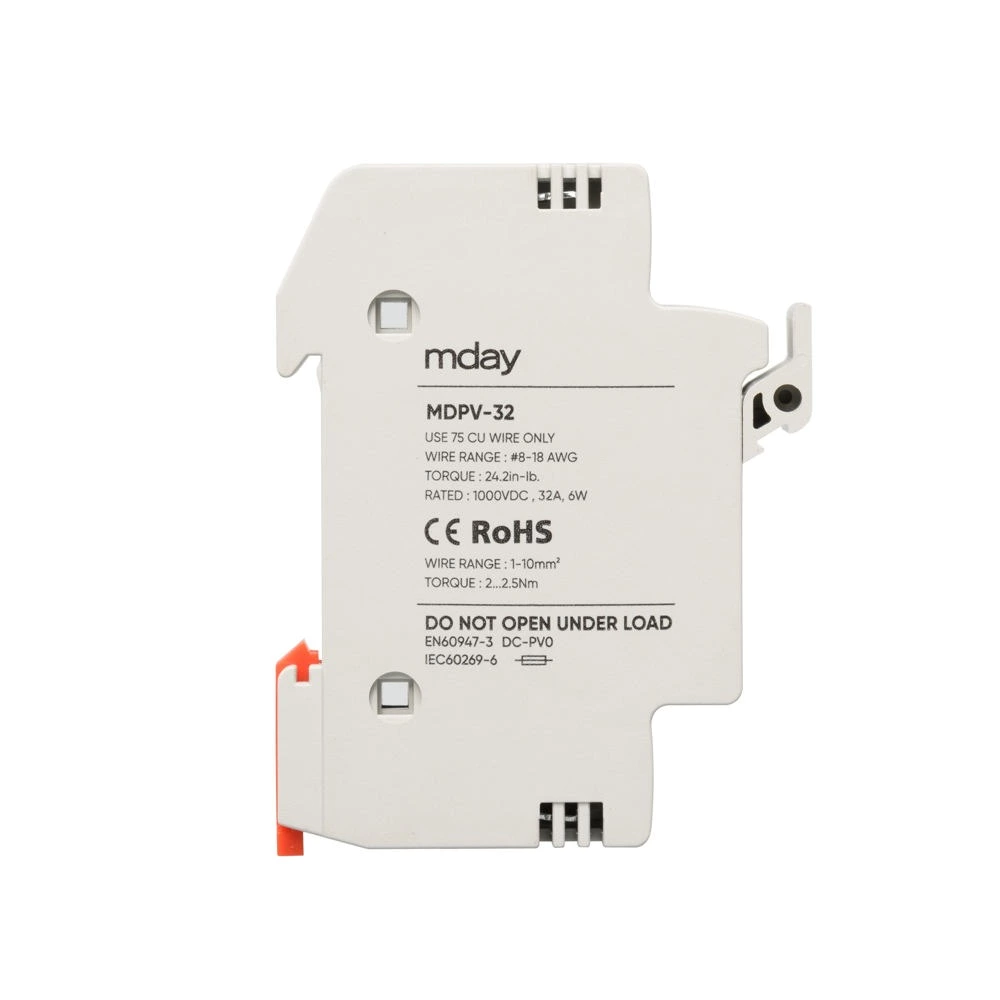

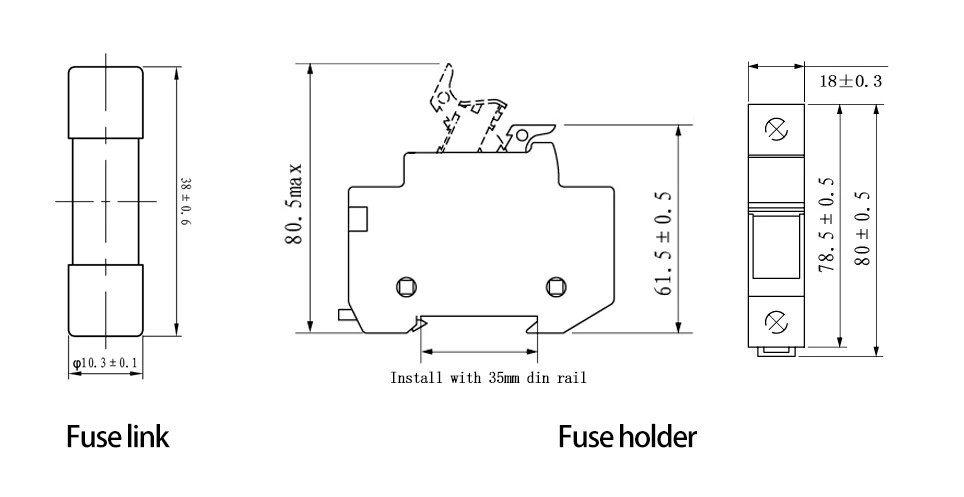

| Product Model | MDPV- 32 | |||
| Product | Fuse holder | |||
| Fuse Link Size | 10*38mm | |||
| Protection Category | gPV(full range protection of pv system) | |||
| Rated Voltage | 1000Vdc | |||
| Rated Current | 2-32A | |||
| Breaking capacity | 20KA | |||
| Time Constant | 1-3ms | |||
| Connection | 2.5-10mm² | |||
| Operation ambient temperature | -30~+70°C | |||
| Enclosure Material | Nylon/PA | |||
| Enclosure Standard | UL94-V0 | |||
| Installation | TH35-7.5/DIN35 Rail installation | |||
| Standard | IEC60269-6,EN60947-3 | |||
| Certificate | CE,TUV | |||
| Weight(link) | 10g | |||
| Weight(holder) | 60g | |||
 |
 |
 |
Before order the Fuse Holder ,plz ask us for the Fuse Rated Current！！！
CYLINDRICAL COPPER CAP STRUCTUREUsing high-quality materials, exquisite workmanship Both ends are firmly connected to the contactcap, Provides more stable and accurate performance, Built-in insulating spacer.
Certifications
We are factory
Mday New Energy
is a trusted manufacturer of protective components for photovoltaic systems across the globe. Our experience of working in the electrical industry for more than 12 years allows us to create surge protective devices , Fuse that comply with the latest DC standards. Through our focus on solar DC protection design, production, and marketing, we can bring brand-building PV protection solutions.
Independent production of accessories
All accessories of Mday are independently produced, including shell, copper parts and varistor chips.Therefore, the quality and production cycle of each order can be fully guaranteed.
 |
 |
 |
 |

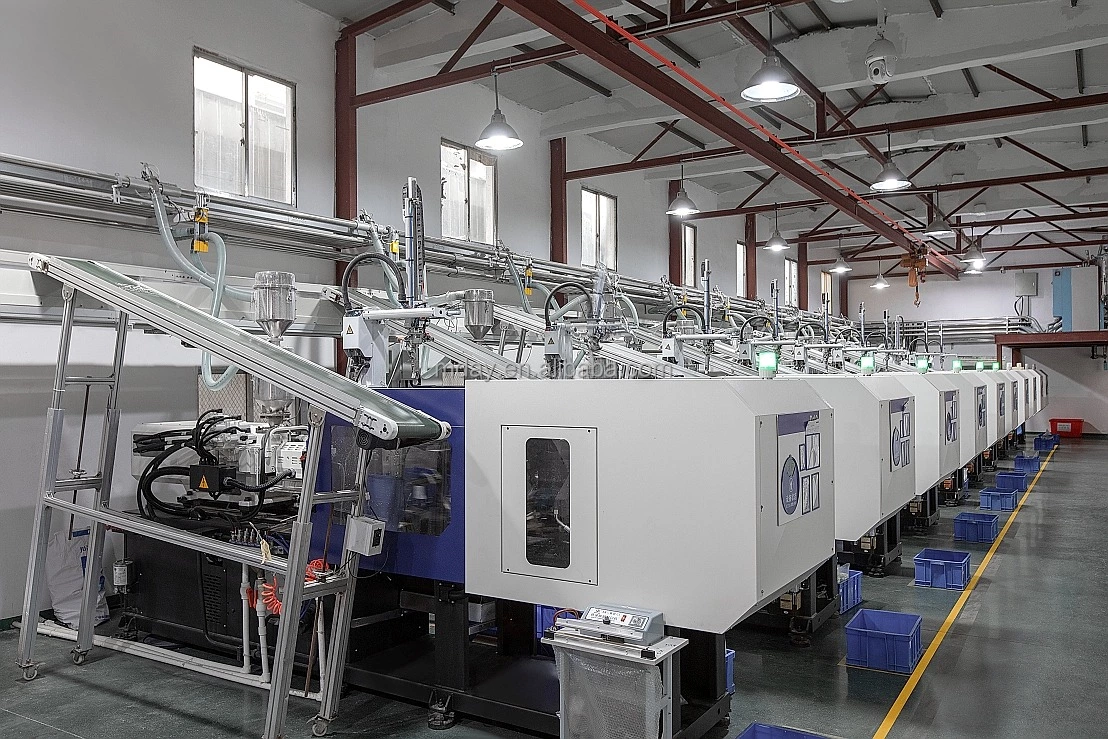

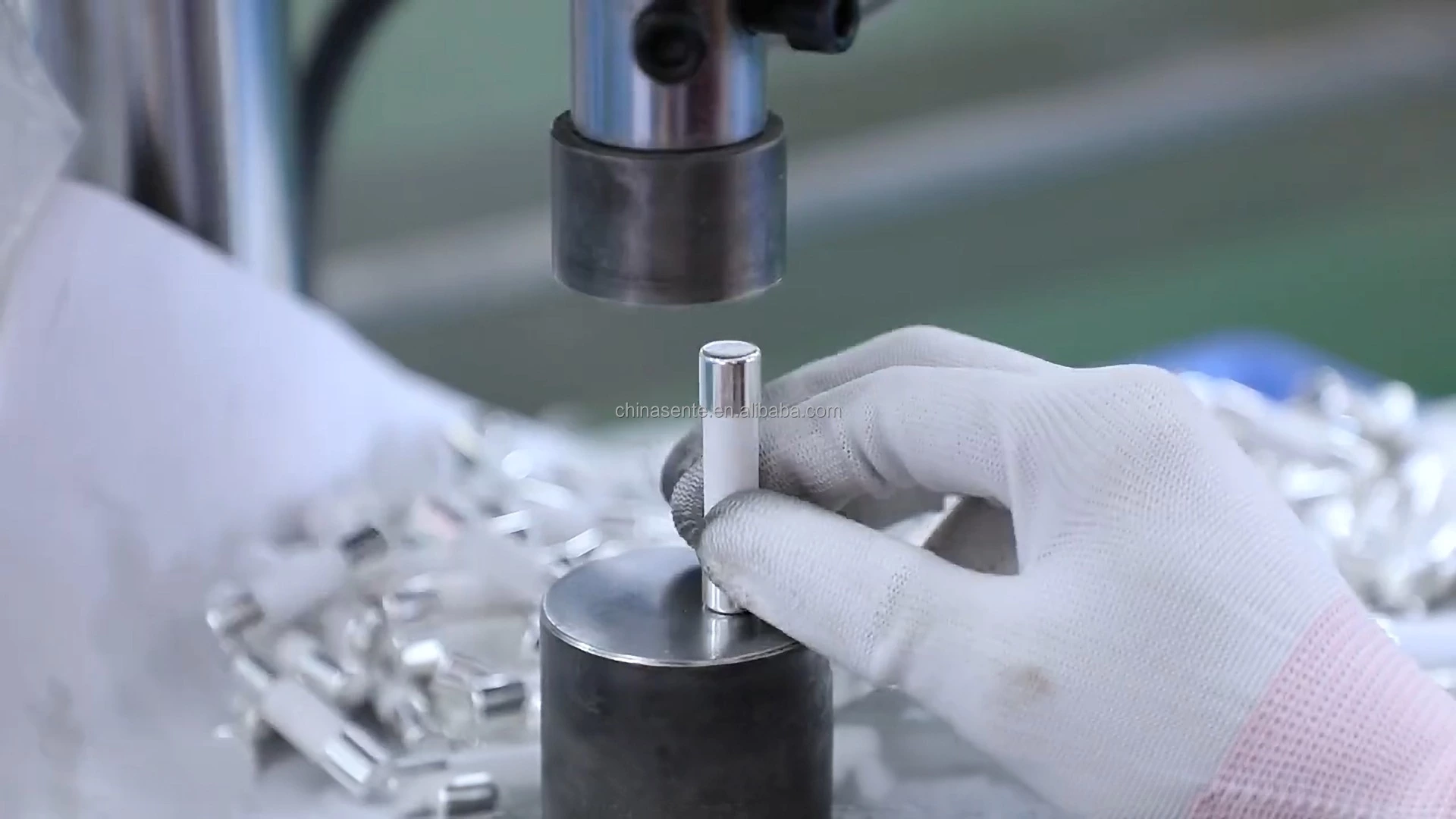

| Injection Molding Workshop | Fuse install | Automatic Production | Power Coating |

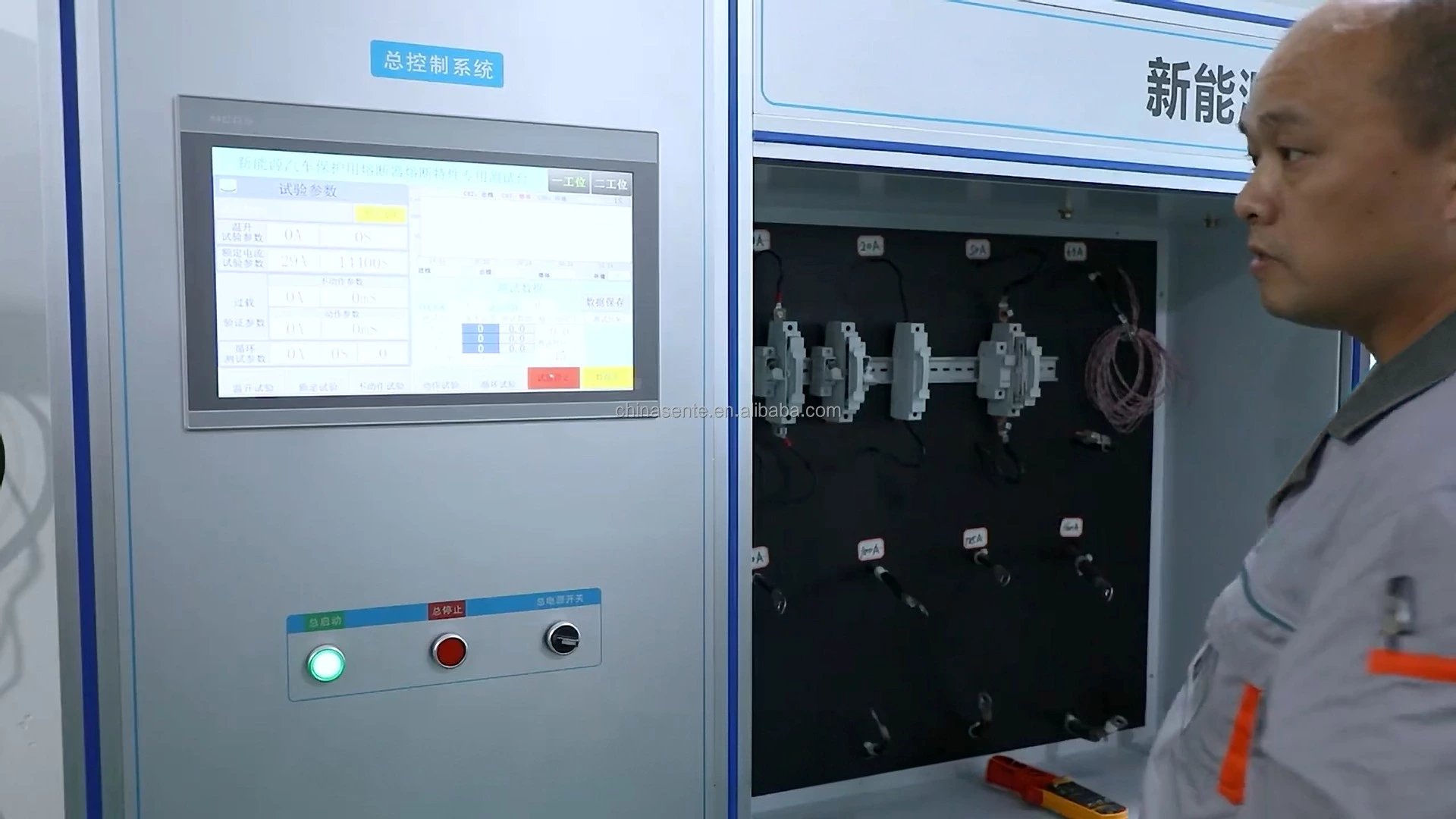

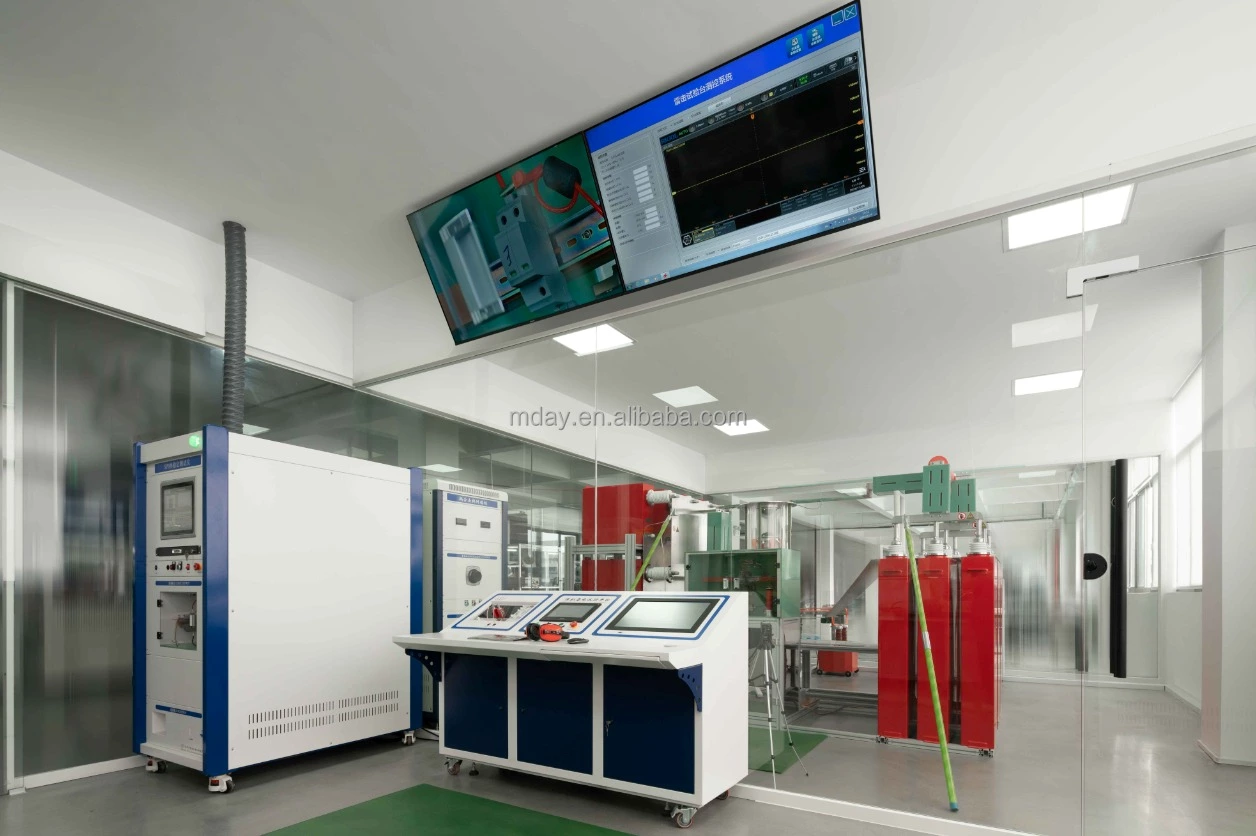

Own test laboratory

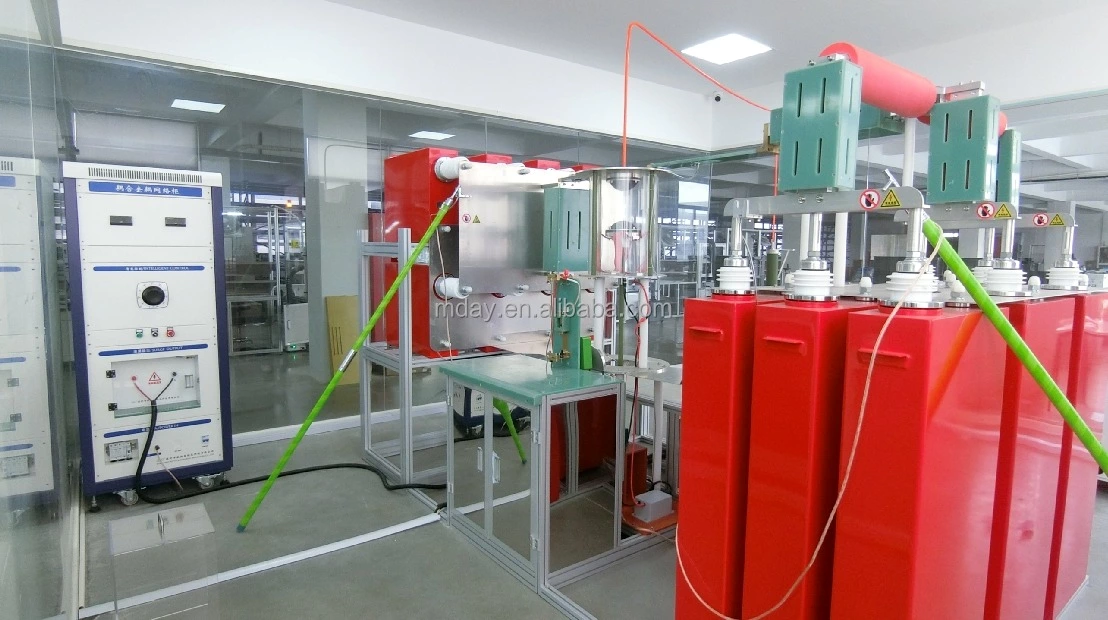

we have testing equipment such as 10/350μs 40KA and 8/20μs 120KA Simulated lightning test equipment, High voltage TOV and low voltage TOV.If necessary, we can provide the parameters of each test for customers' reference.
 |
 |
 |

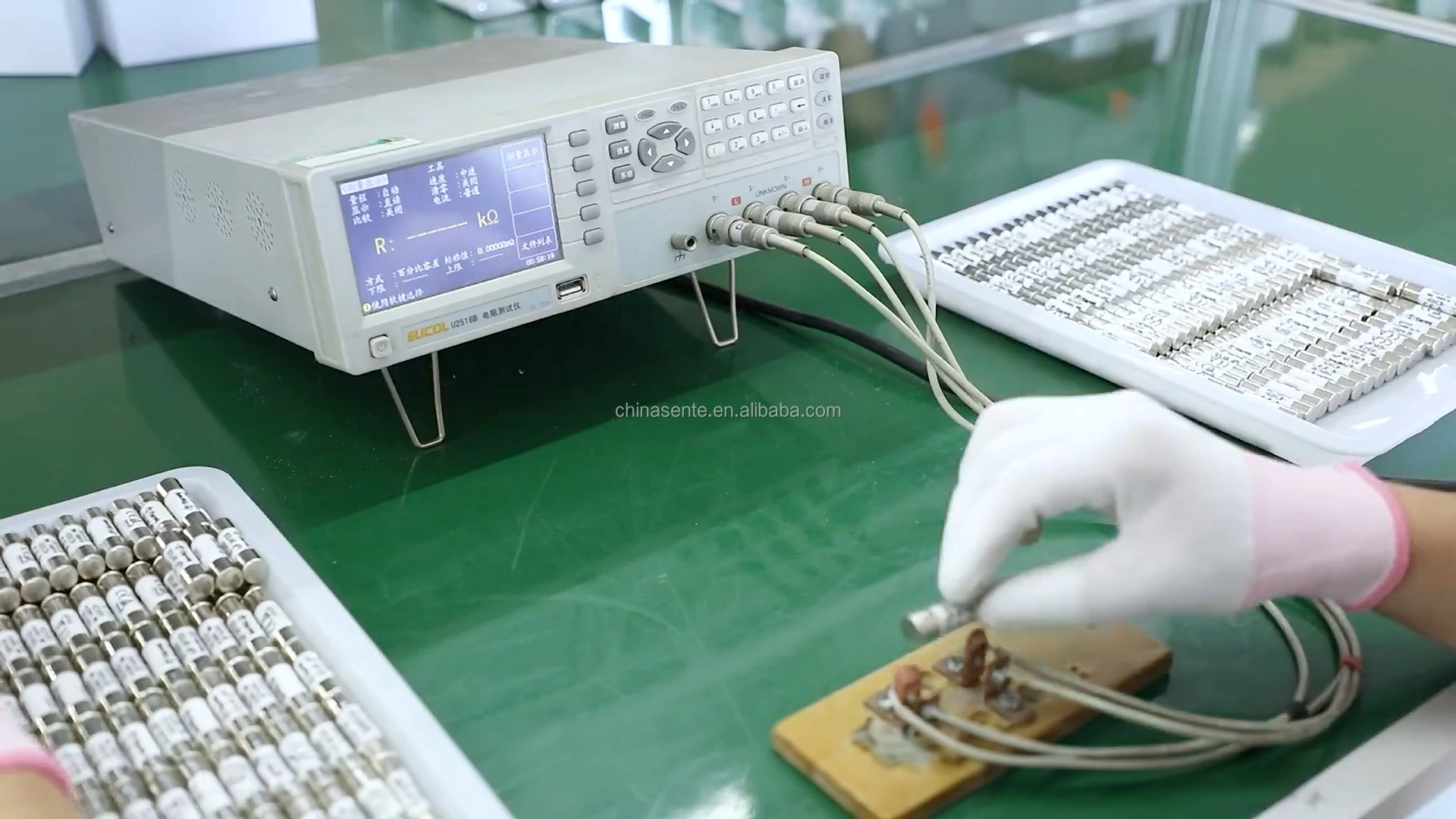

| T1 (10/350μs) and T2 ( 8/20μs) test | Fuse 0.5A-3150A action characteristic of voltage Test | Resistance Test |

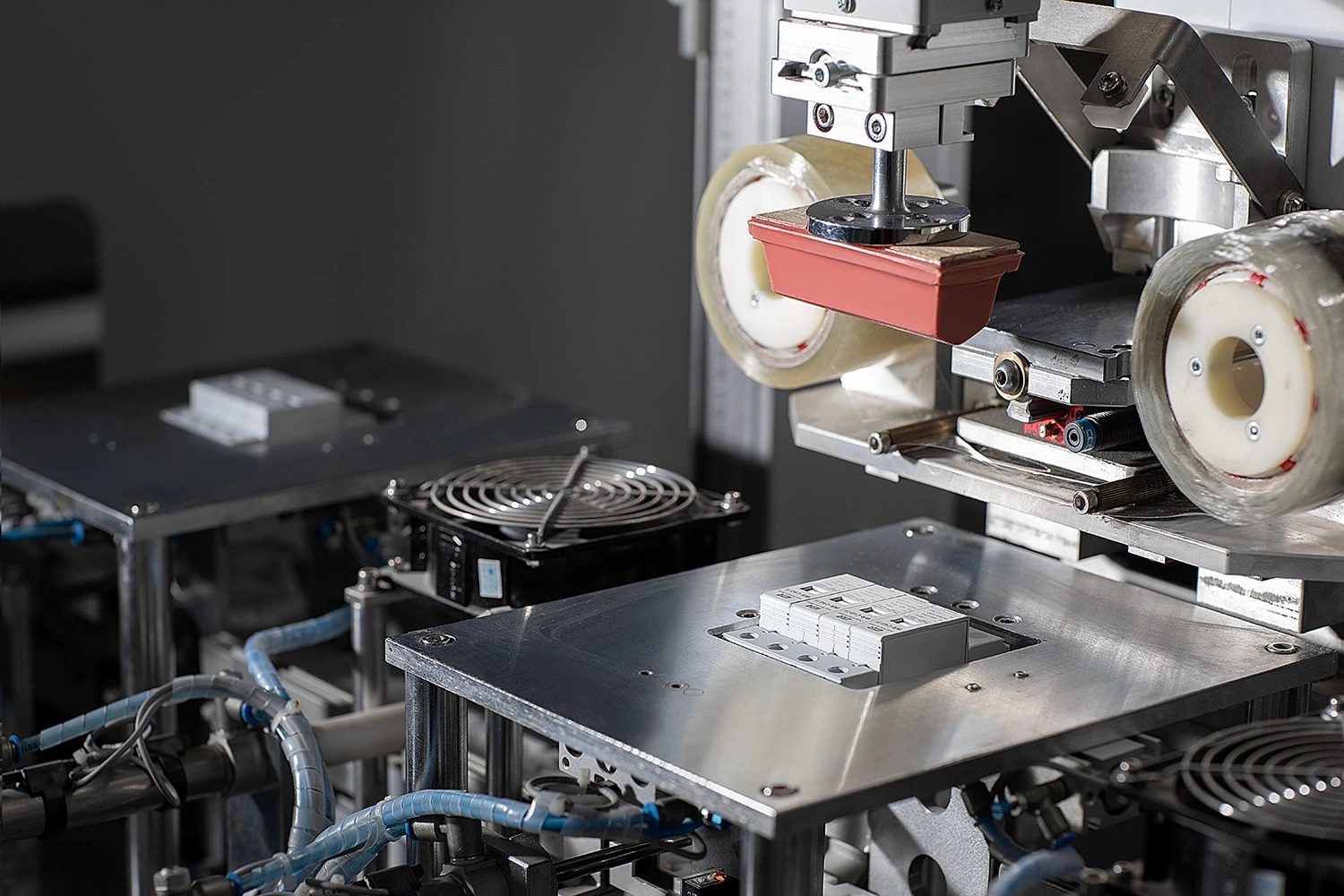

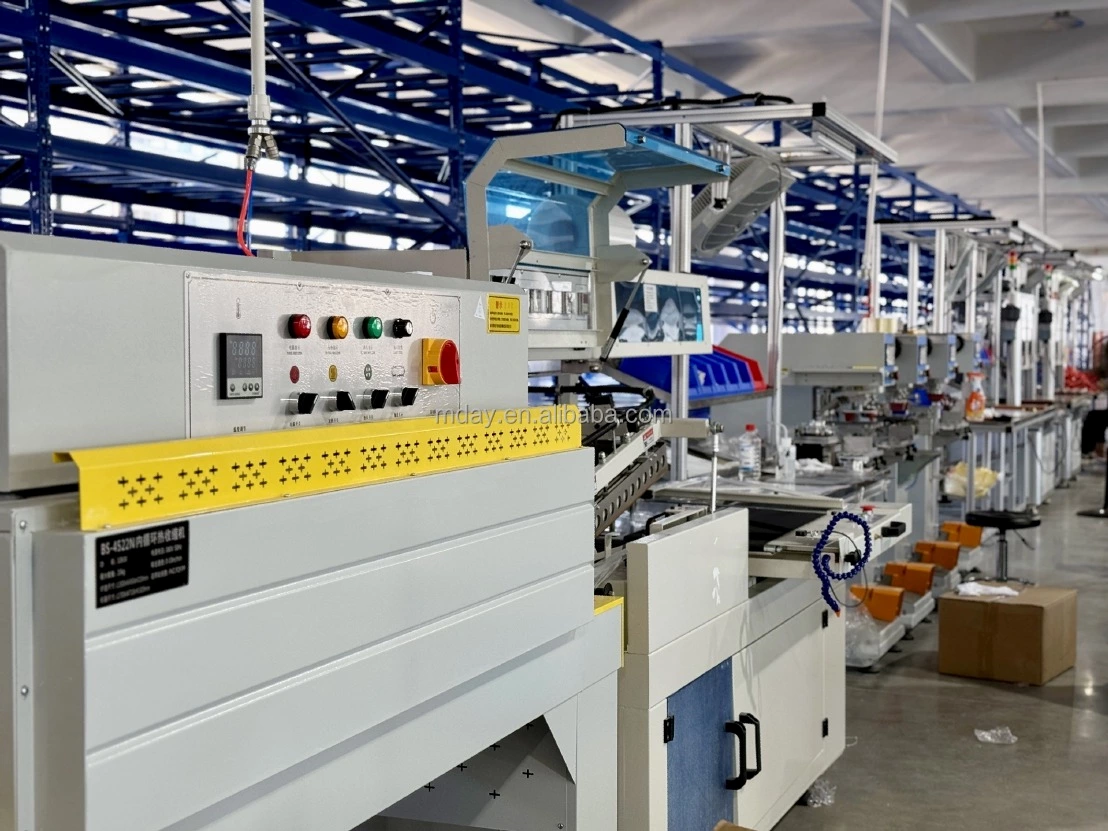

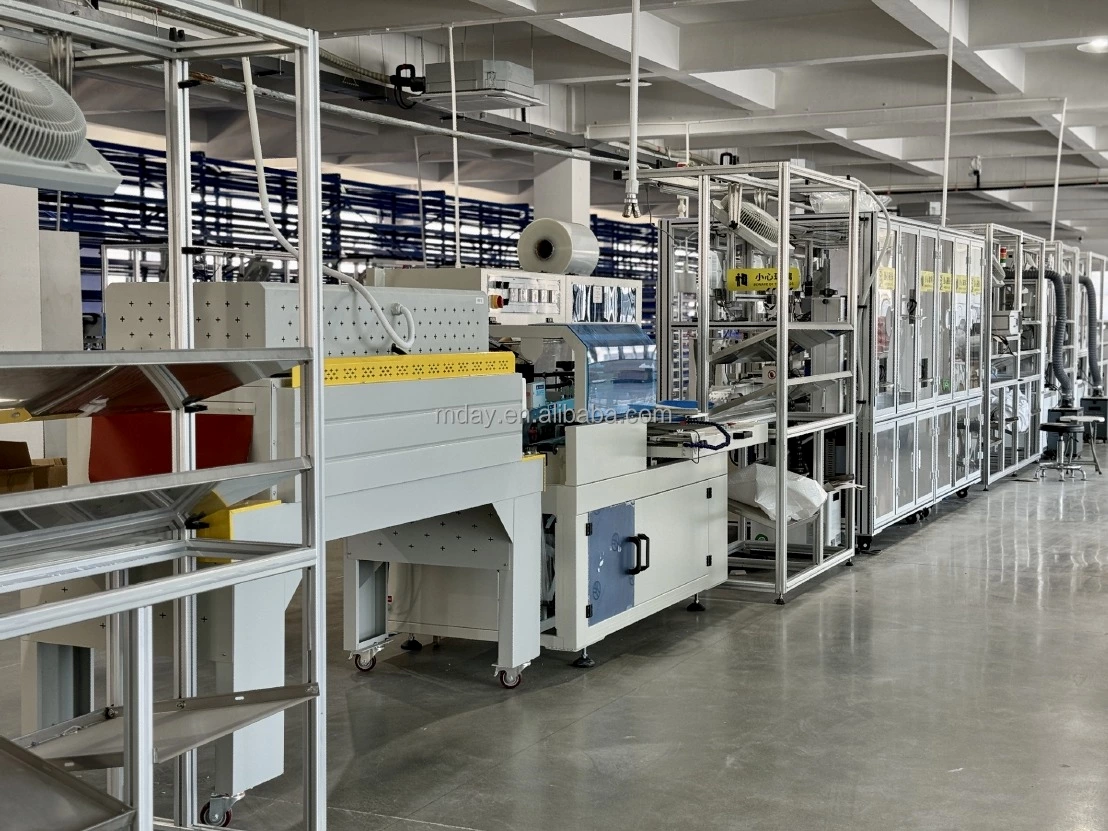

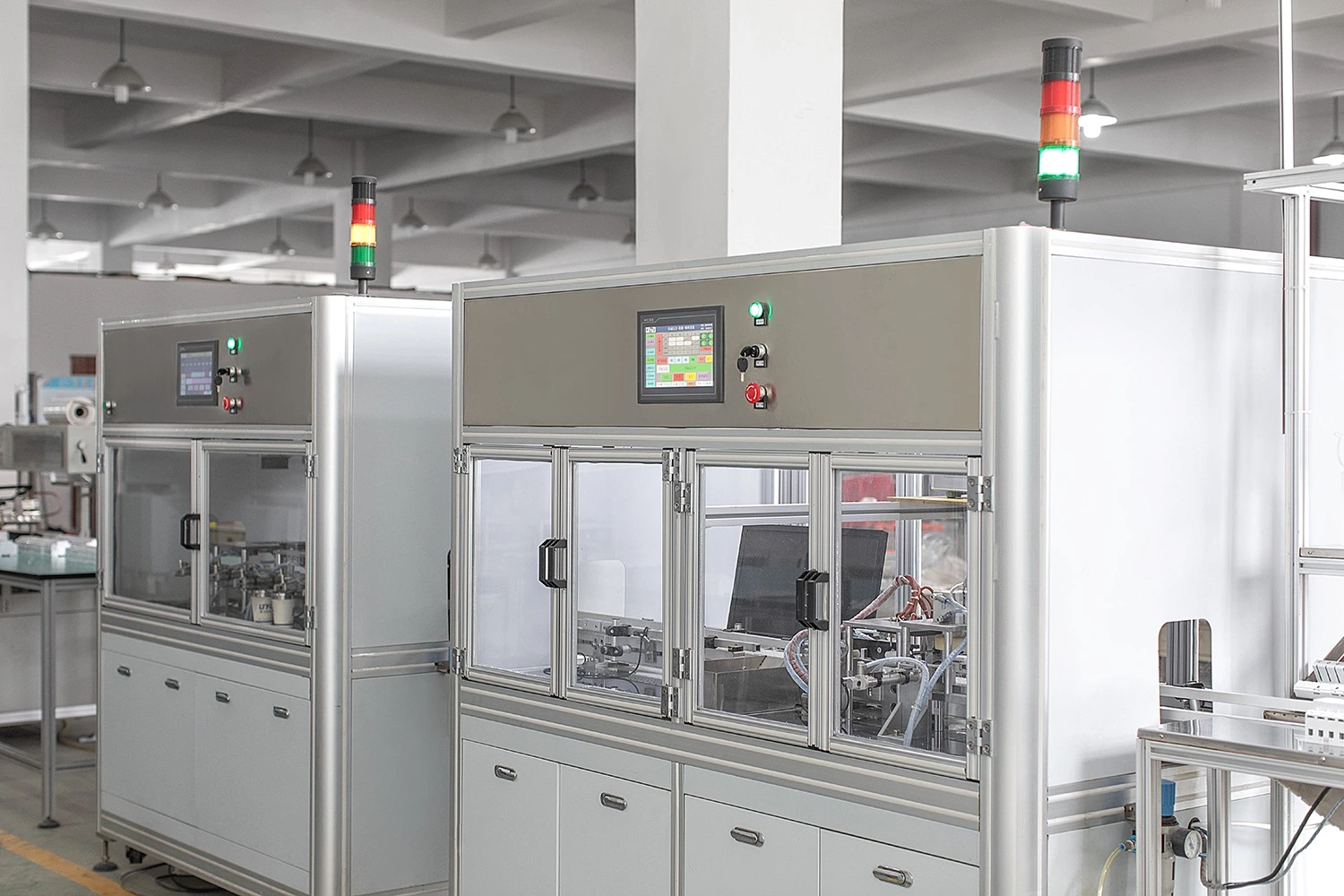

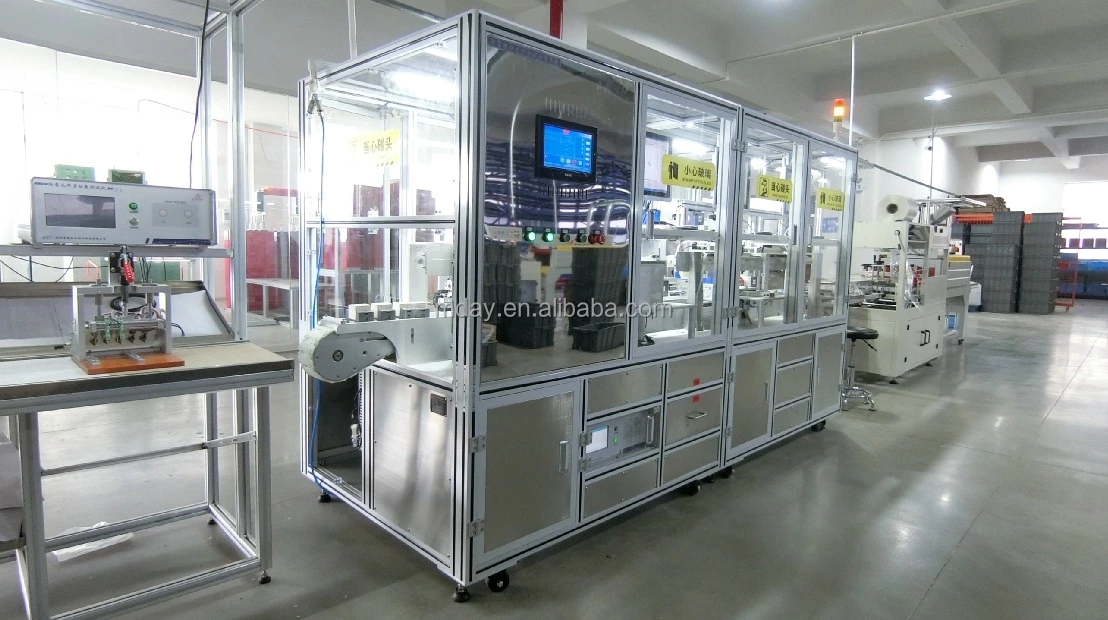

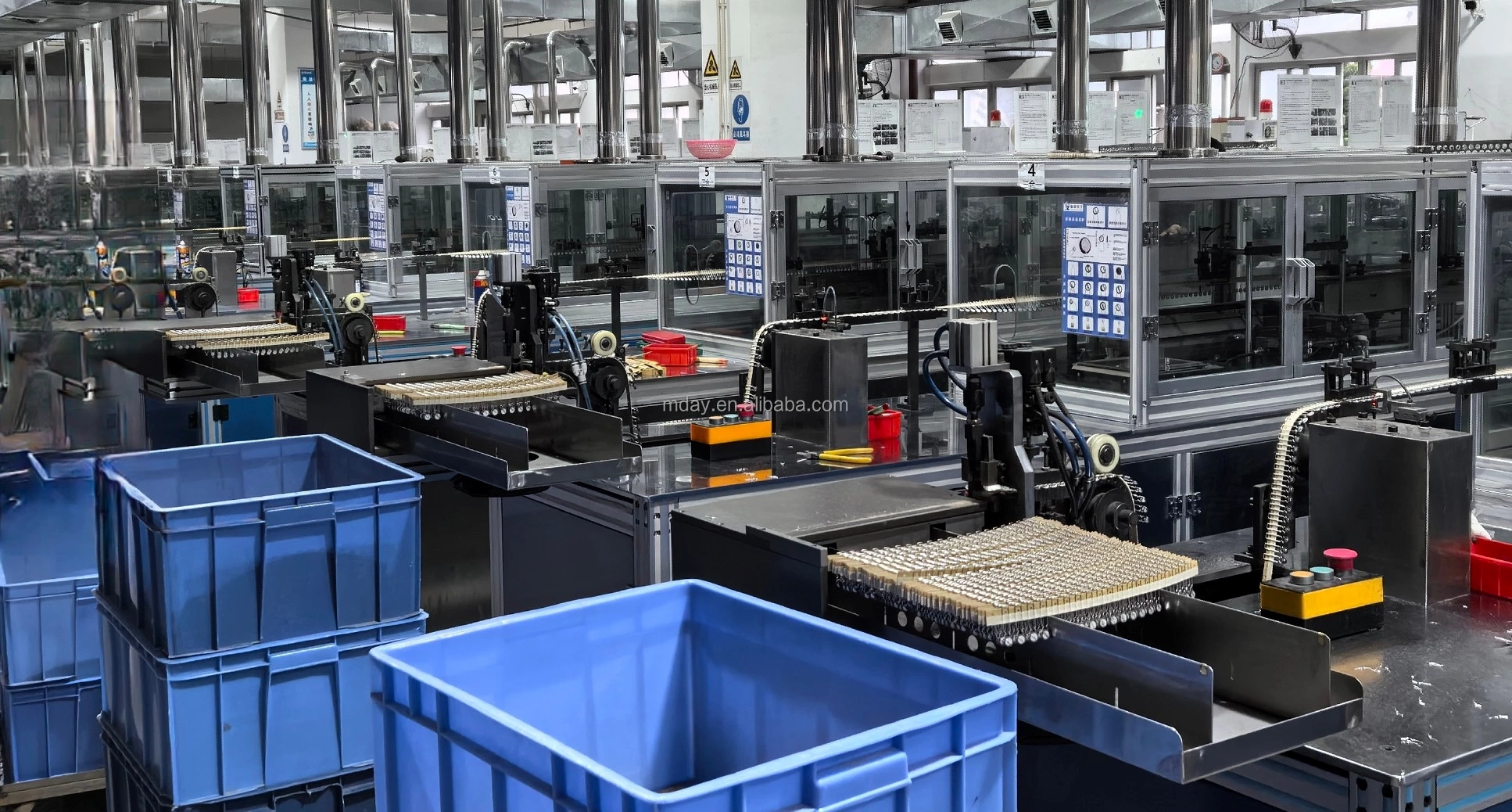

Automatic Production Line
we have automatic production line, can control the production cycle and product quality of each batch of orders
 |
 |
 |

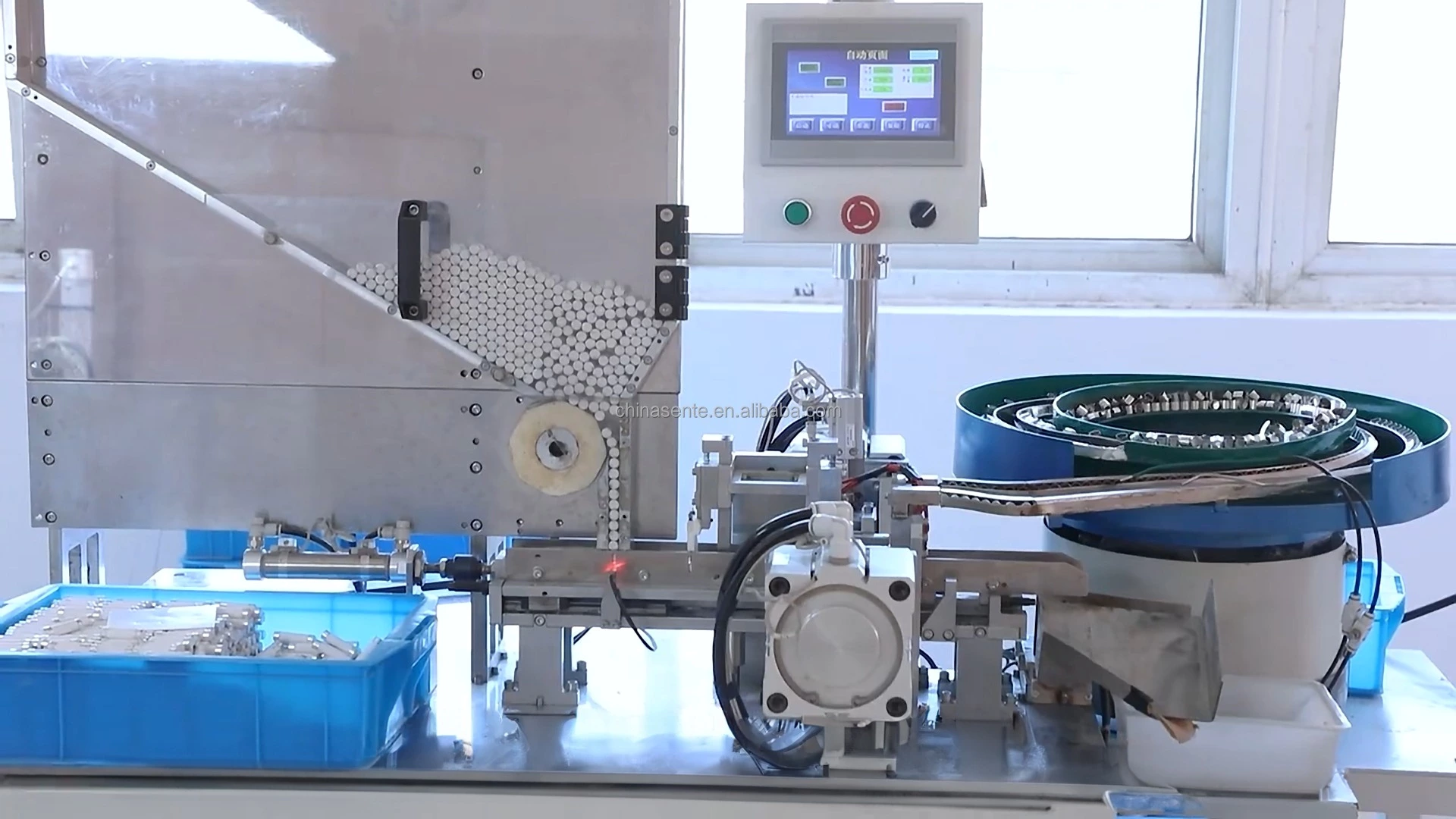

| 1.Automated assembly line | 2.Fuse | 3.Product Testing |
 |
 |
 |

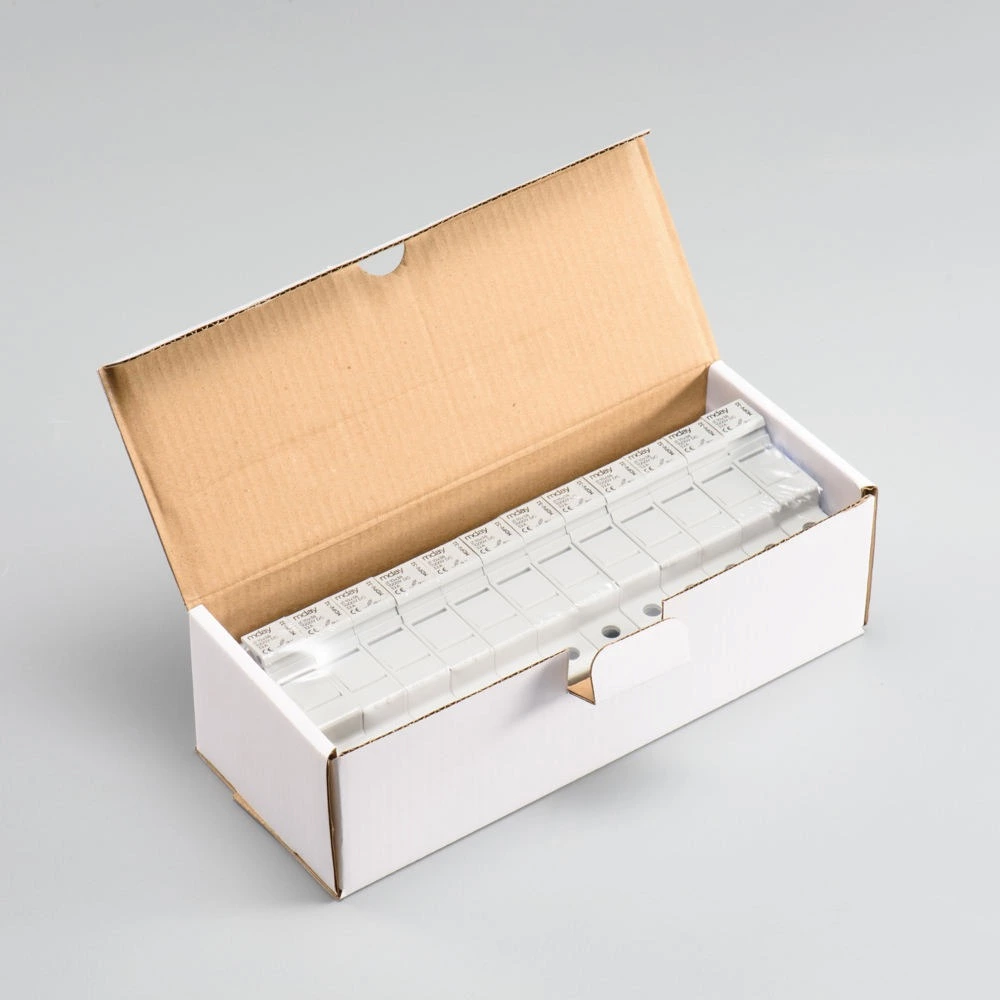

| 4.Laser or Pad Printing | 5.Heat-Wrapping | 6.Packing |
Exhibition
FAQ
Q：Are you factory or trade company?
A：We are factory and can provide OEM,ODM with your demand.Plz confirm our factory video.
Q： when I can receive your quotation and detail information after send the enquiry?
A：All your enquiry will be replied in 24hours.
Q：Your DC FUSE seems perfect but what's the difference between you and other suppliers?
A：Our DC FUSE is special for Solar system all the parts in the MCB are high quality customized.
Not all the DC FUSE are Solar MCB!
Q: How About the fuse/fuse holder ,can i buy only the fuse?
A: We can sell the FUSE and holder separately and you can choose FUSE with different currents and voltage.
Q: How About the delivery term?
A: At present,we dont make enough stock for all models.
Plz confirm with salesman to get the accurate delivery term.
