600V/1000V 2 input 1output
- · MODEL:
- MY-PV2/1
- · Country Of Origin:
- Zhejiang, China
- · Brand:
- mday
- · Material:
- Copper, PVC
- · Rated Current:
- 20A 32A
- · Application:
- LED Touch Control, Automotive
- · Rated Frequency:
- 50Hz, 60Hz
- · Voltage:
- 600, 1000
Product Description
Mday’s PV DC combiner boxes - high quality, optimized, robust and efficient
For solar installations in the PV industry, reliability and availability are paramount. In systems with string inverters, our AC and DC combiner boxes provide optimal short-circuit and overvoltage protection. Furthermore, each string inverter can be easily isolated from the system to do maintenance tasks.
 |
DC MY-PV2/1 550V Combiner Box

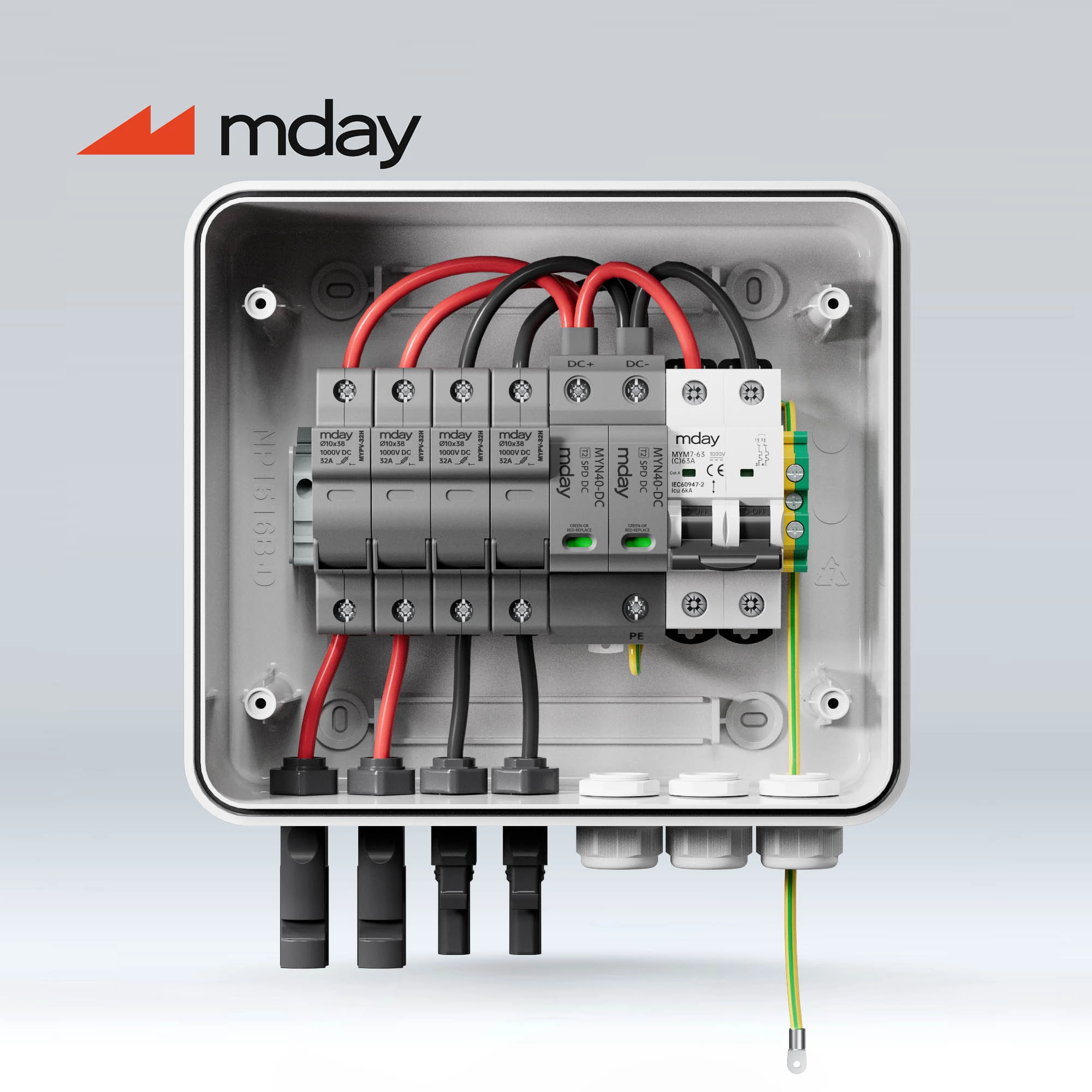

Features/Benefits* HIGH RELIABILITY With DC FUSE,with DC surge protection with DC circuit breaker or DC load isolation switch. * STRONG ADAPTABILTY IP65 design, wateproof anti dust and anti ultraviolet.Strict test for high and low temperature,used widely. The simple instalation, the simplified system wiring,the convenient wiring, The box body is mode of cold rolled steel and other metal materials. * FLEXIBLE CONFIGURATION Used for single crystal silicon solar modules polycrystaline silicon solarmodules, thin film solar modules. Current rating of the photovoltaic fuse. |
 |
 |

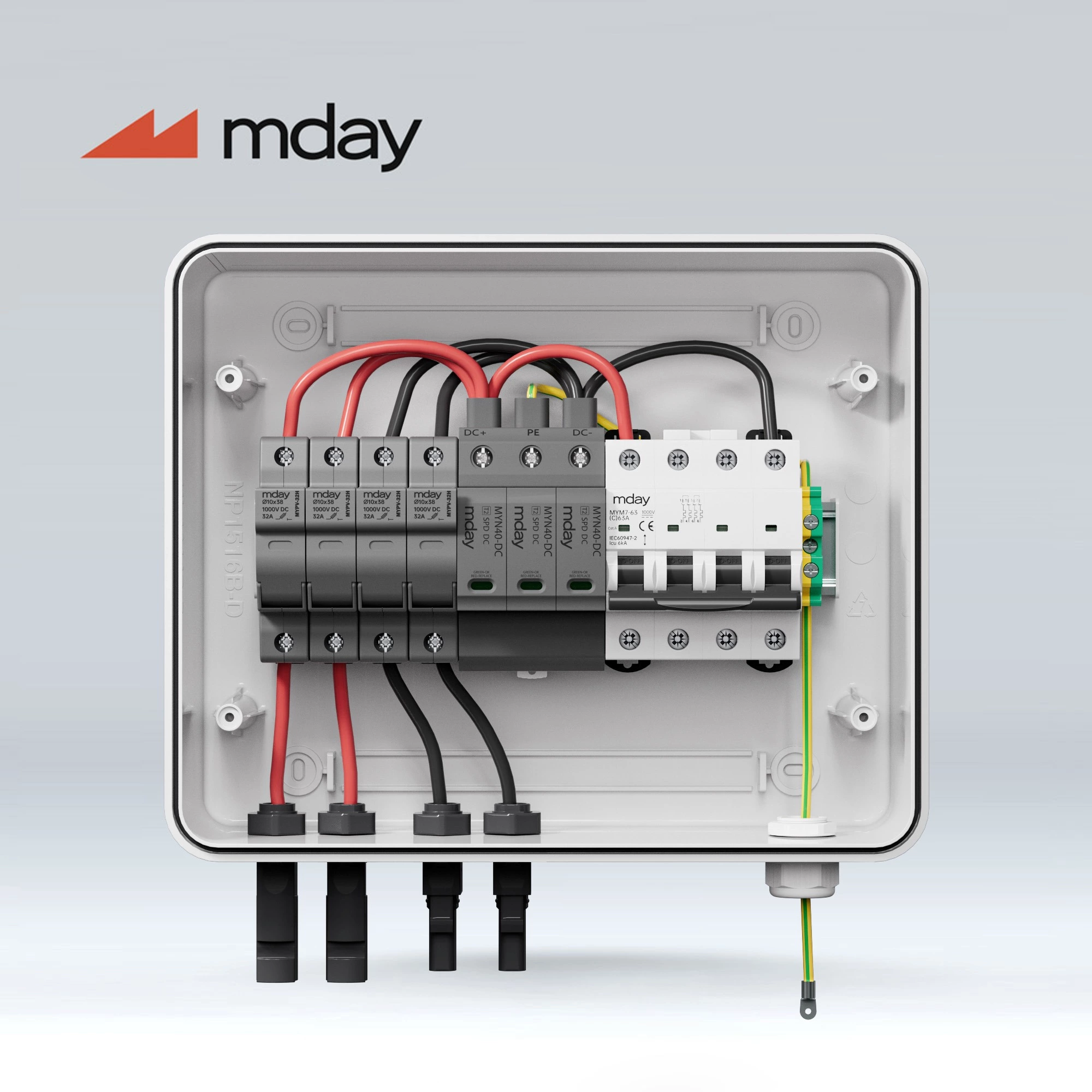

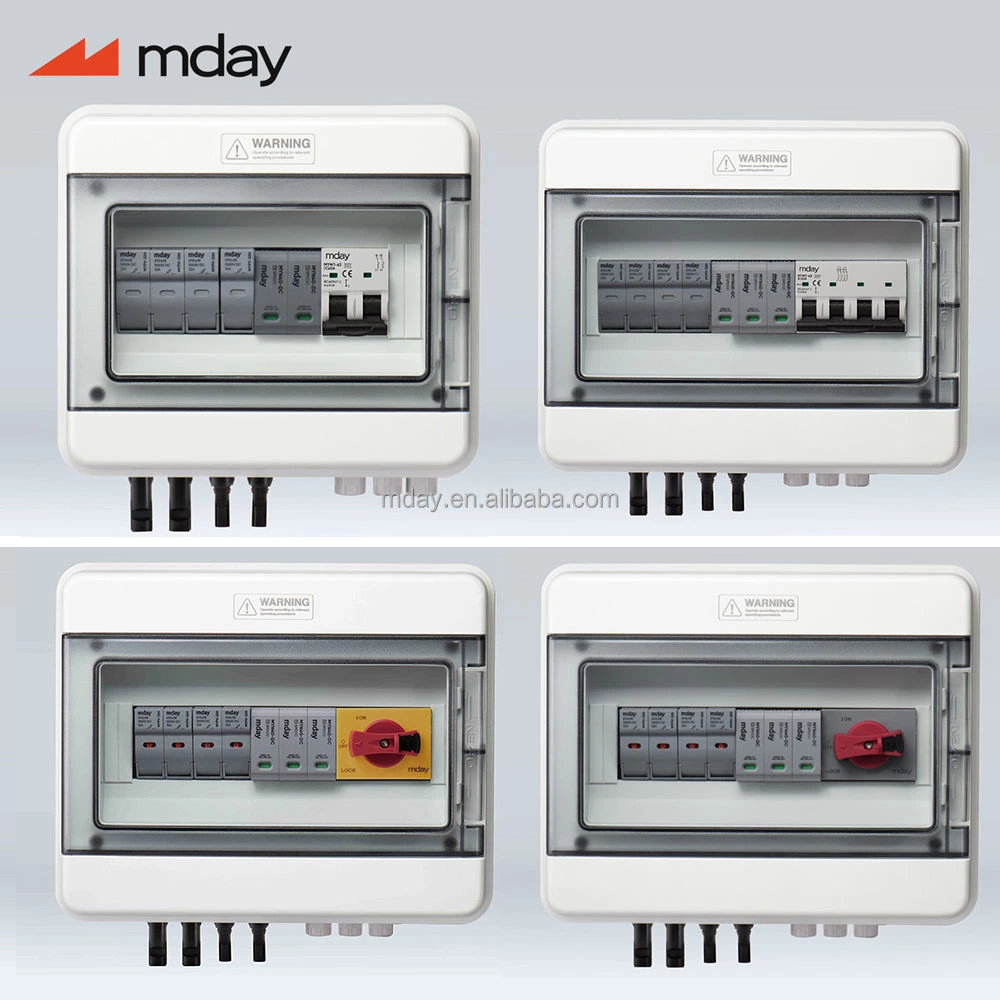

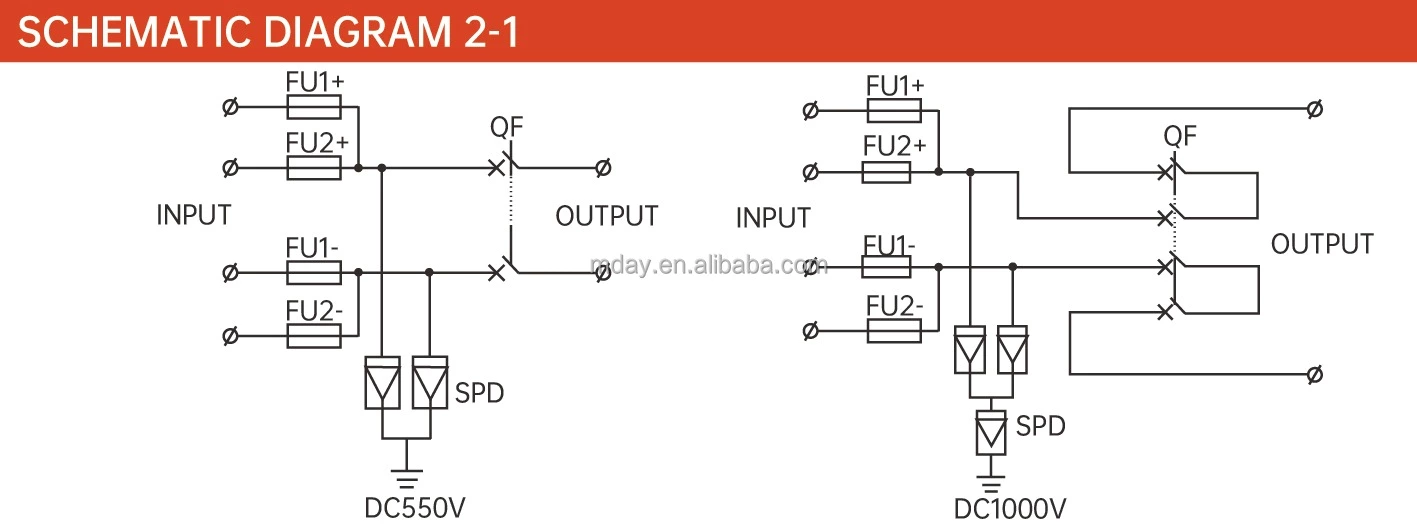

| MY-PV2/1 550V DC FUSE 32A*4pcs DC MCB 2P *1pcs DC SPD 2P*1pcs | MY-PV2/1 1000V DC FUSE 32A*4pcs DC MCB 4P *1pcs DC SPD 3P*1pcs |
 |
 |
 |

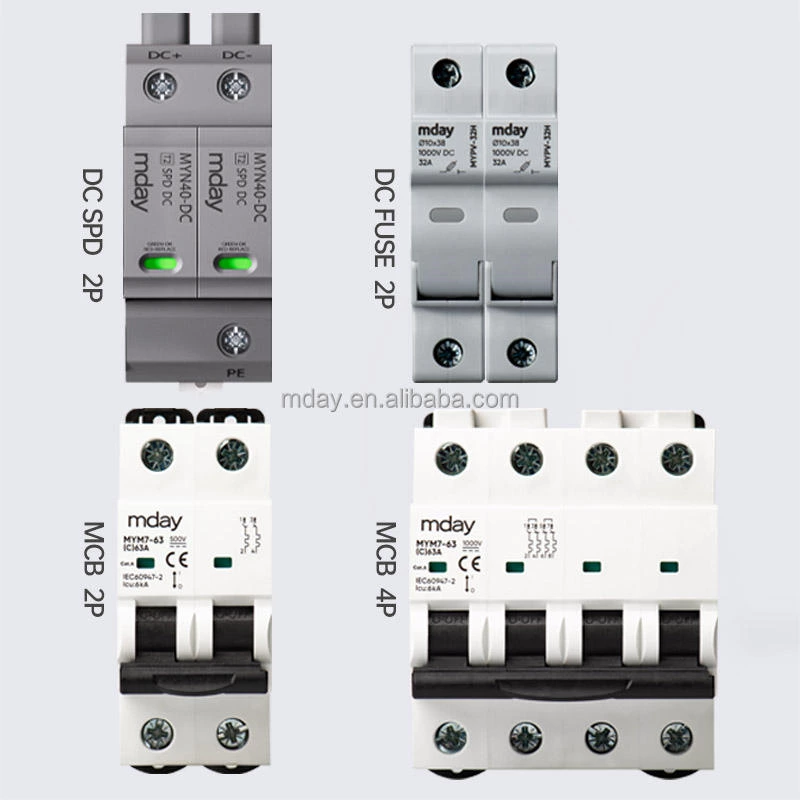

| DC Fuse | DC MCB | DC SPD |
Waterproof and Dustproof PV Combiner Box

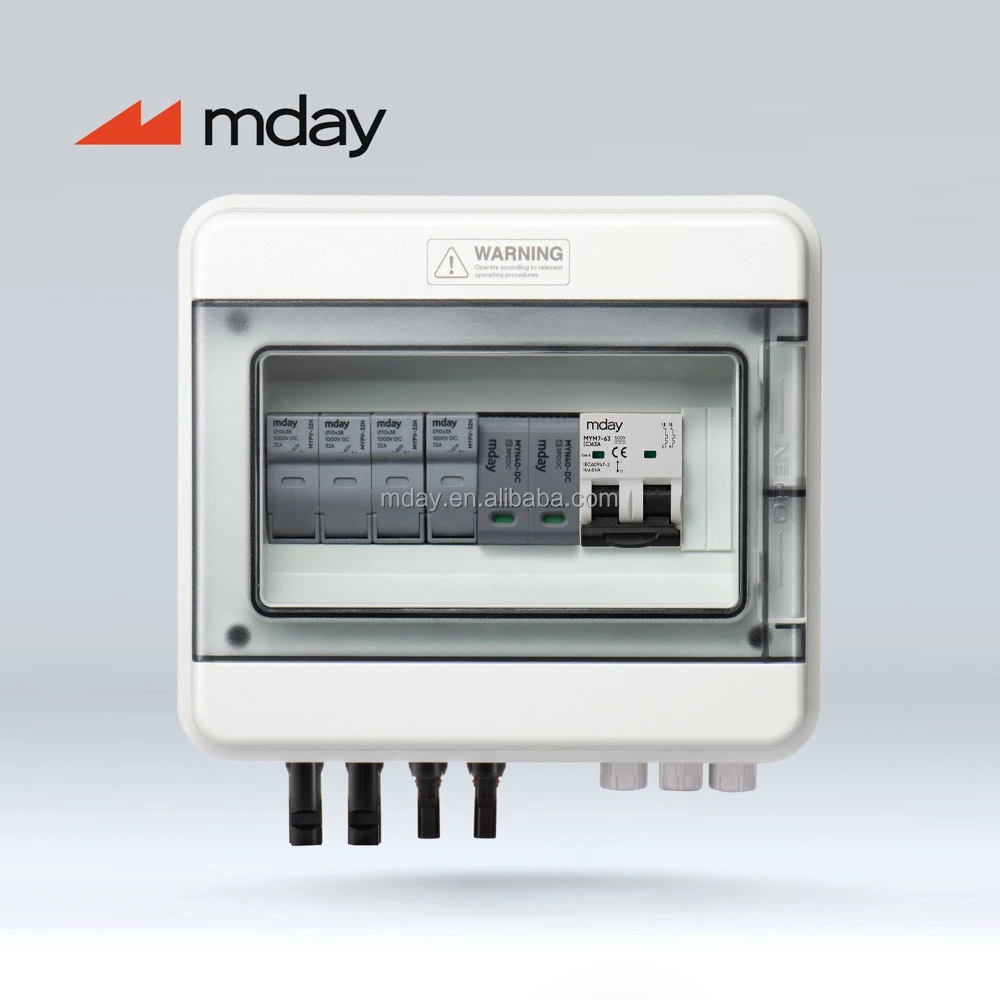

IP65 2 in 1 out 550V/1000V Flexible configuration PV Combiner Box
| Name | MY-PV2/1 DC | |
| Electric Parameter | ||
| System maximum dc voltage | 550V | 1000V |
| Maximum input current for each string | 15A | |
| Maximum input strings | 1 | |
| Maximum output switch current | 20A/32A | |
| Number of inverter MPPT | 1 | |
| Number of output strings | 1 | |
| Lightning protection | ||
| Category of test | II grade protection | |
| Nominal discharge current | 20kA | |
| Maximum discharge current | 40kA | |
| Voltage protection level | 2.8kV | 3.8kV |
| Maximum continuous operating voltage Uc | 630V | 1050V |
| Poles | 2P | 3p |
| Structure characteristic | Plug-push module | |
| System | ||
| Protection grade | IP65 | |
| Output switch | DC isolation switch(standard)/DC circuit breaker(optional) | |
| PV dc fuse | Standard | |
| PV surge protector | Standard | |
| Monitoring module | Optional | |
| Preventing diode | Optional | |
| Box material | PVC | |
| Installation method | Wall mounting type | |
| Operating Temperature | -25℃~+55℃ | |
| Elevation of temperature | 2km | |
| Permissible relative humidity | 0-95%,no condensation | |
| Mechanical Parameter | ||

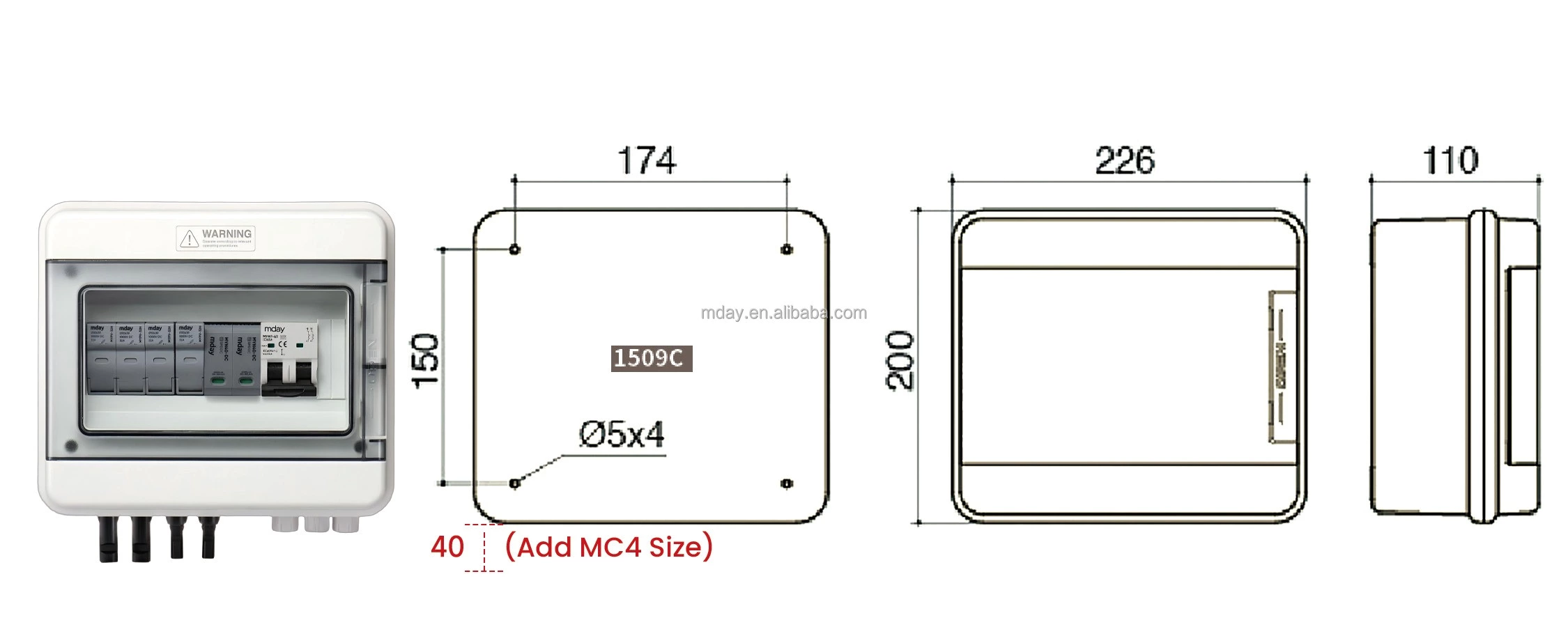

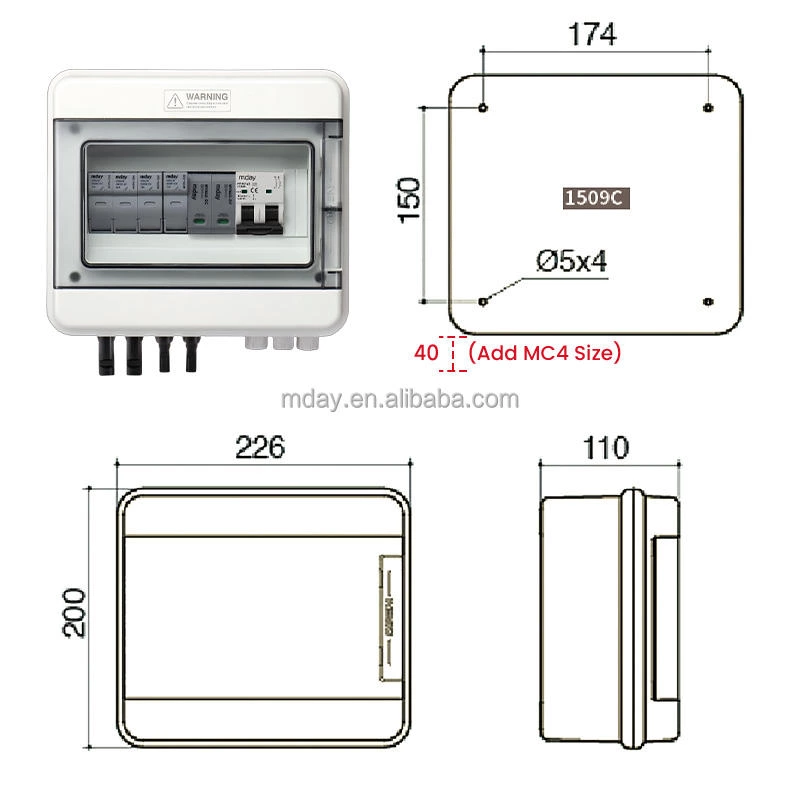

| W*H*D | 226*240*110 | |
Certifications
We are factory
Mday New Energy
is a trusted manufacturer of protective components for photovoltaic systems across the globe. Our experience of working in the electrical industry for more than 12 years allows us to create solar DC components that comply with the latest DC standards. Through our focus on solar DC protection design, production, and marketing, we can bring brand-building PV protection solutions.
Independent production of accessories
All accessories of Mday are independently produced, including shell, copper parts and varistor chips.Therefore, the quality and production cycle of each order can be fully guaranteed.
 |
 |
 |
 |

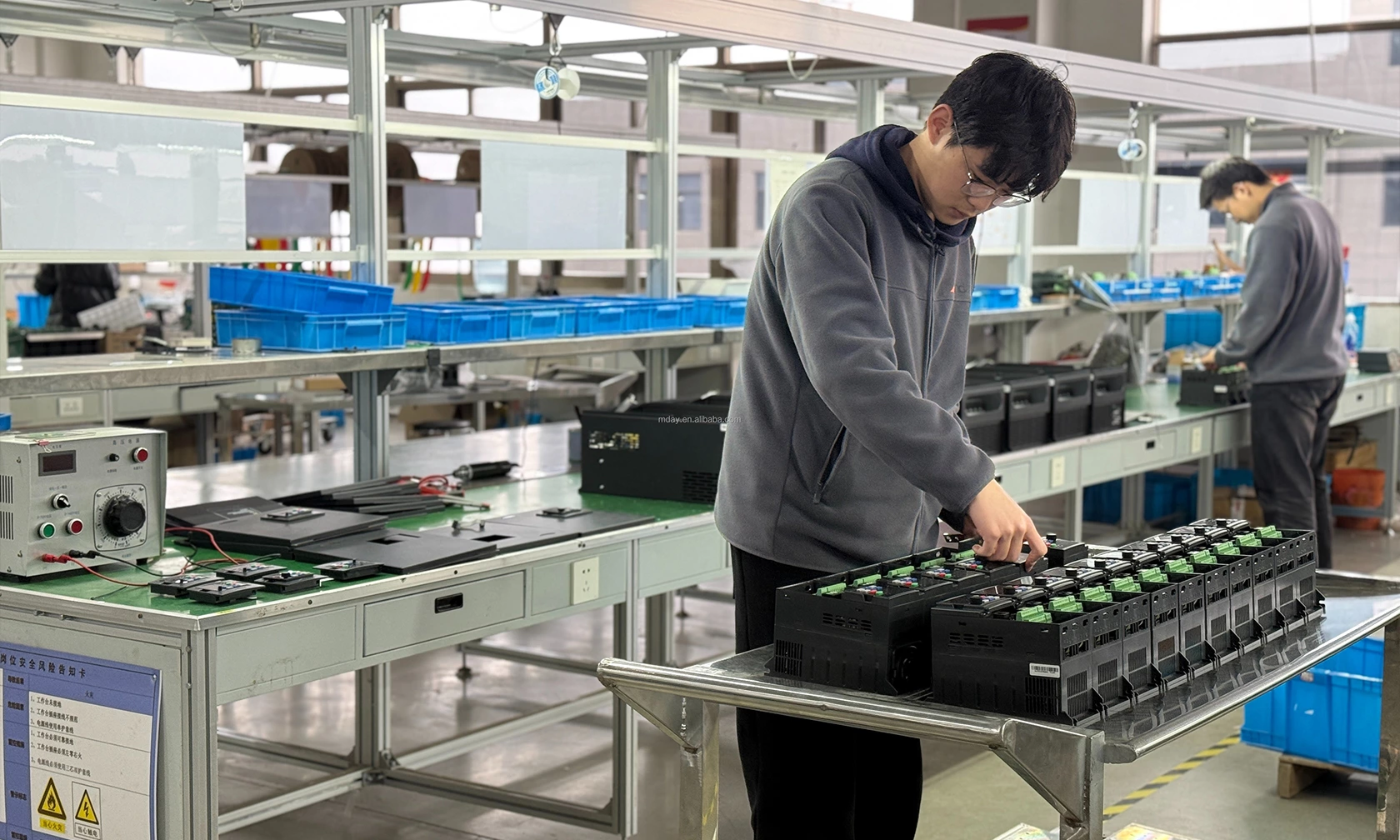

| Injection Molding Workshop | Automated assembly line | Assembly | Automated assembly line |

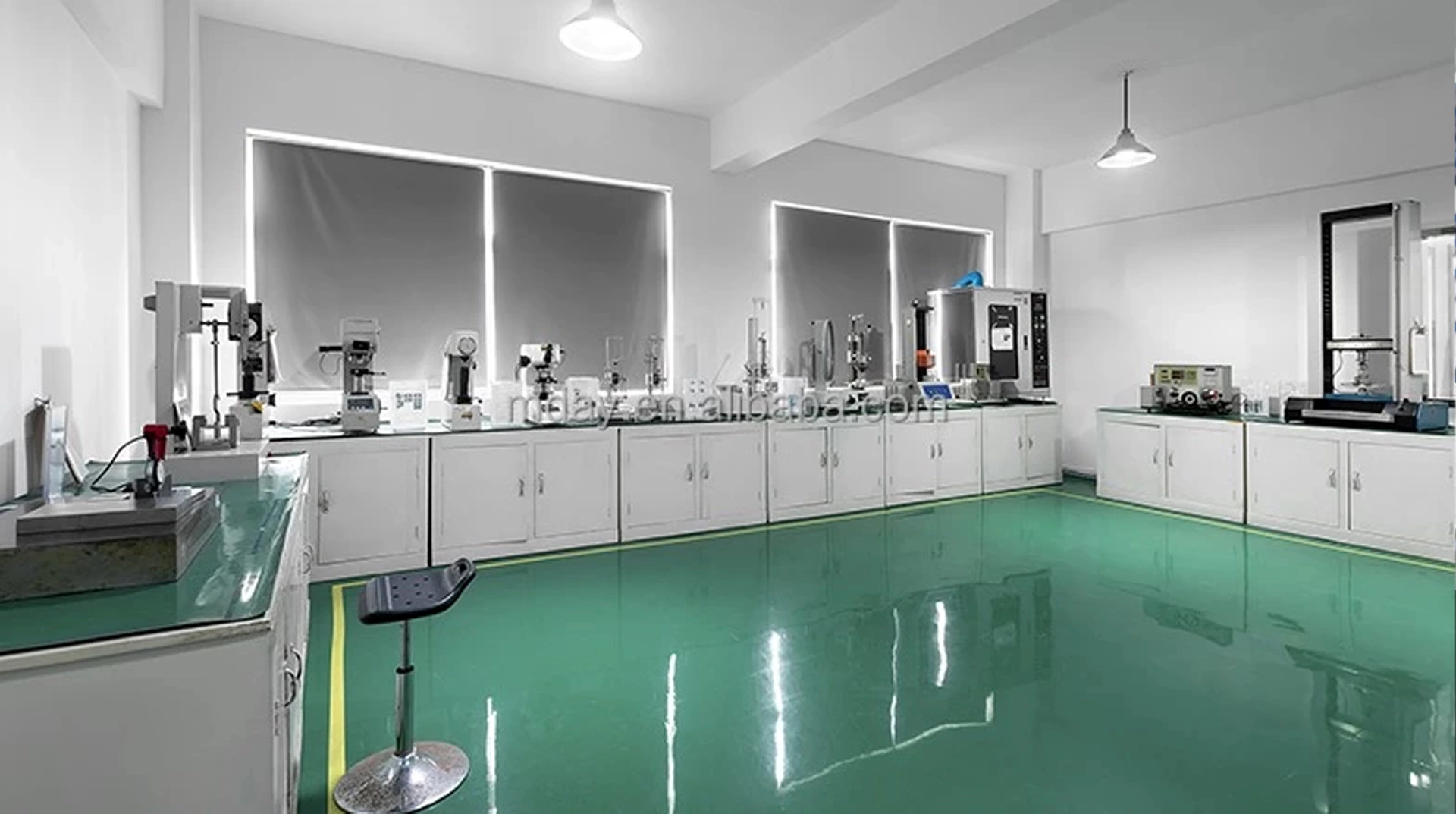

Own test laboratory
We have testing equipment type tests are conducted in specifically built test laboratories. The purpose of the type tests is to prove the capabilities and rated characteristics of the MCBs.
 |
 |
 |
| T1 (10/350μs) and T2 ( 8/20μs) test | Fuse 0.5A-3150A action characteristic of voltage Test | Resistance Test |
Combiner PV Box Production Line
Our Combiner PV Box can customise to your requirements.
 |
 |
 |

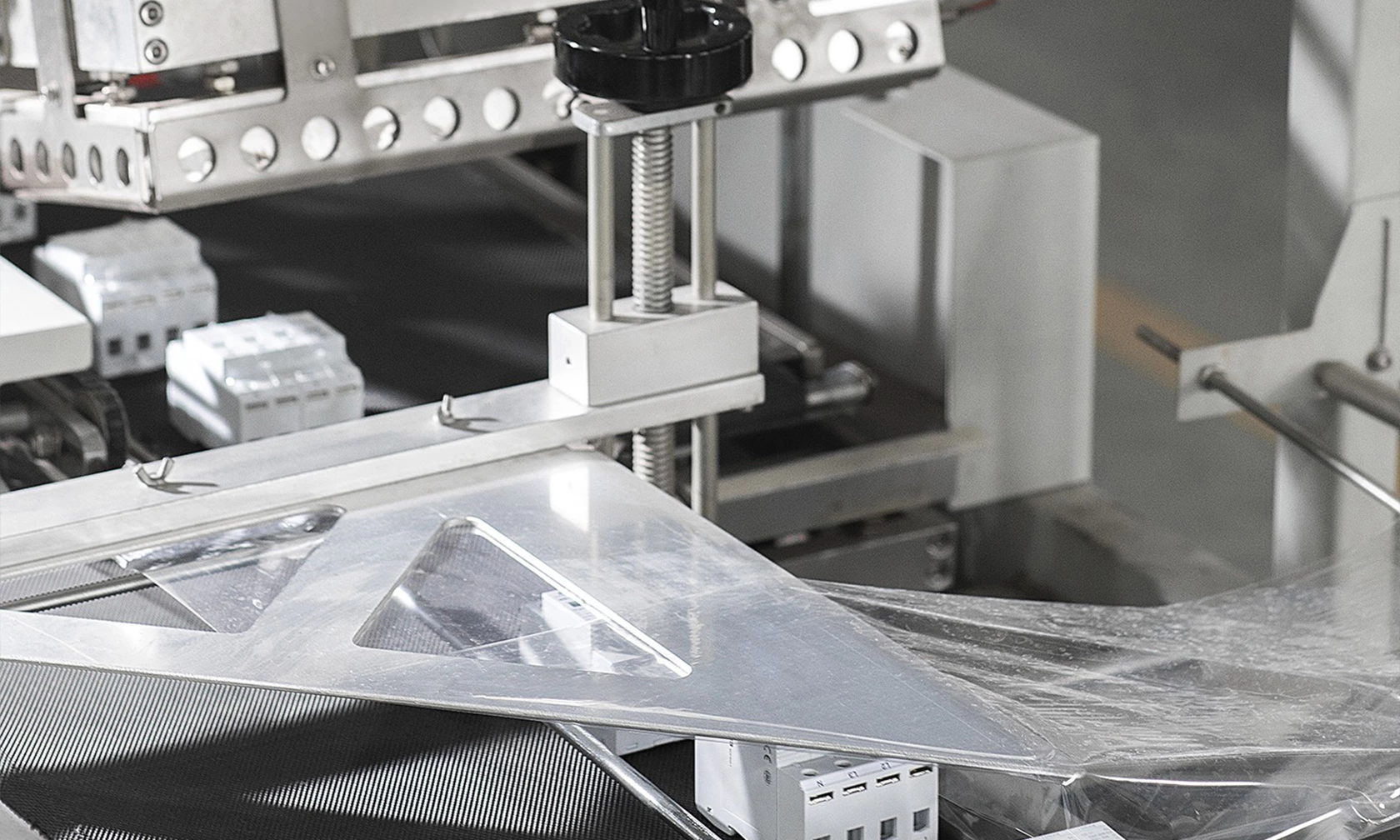

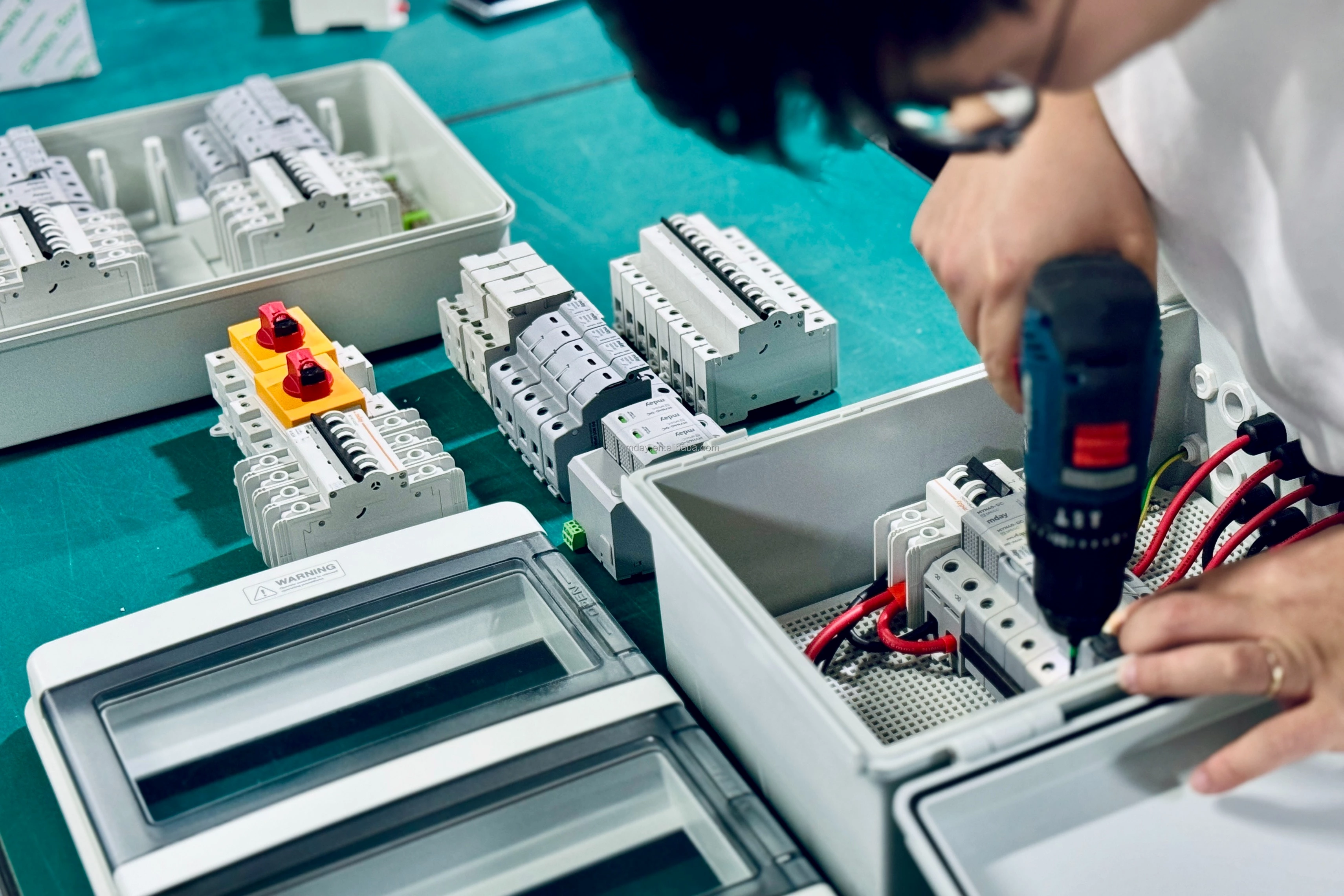

| 1.Automated assembly line | 2.Robot Arm | 3.Product Testing |
 |
 |
 |
