600V/1000V 2 input 2output
- · MODEL:
- MY-PV2/2
- · Country Of Origin:
- Zhejiang, China
- · Brand:
- mday
- · Material:
- Copper, PVC
- · Rated Current:
- 32A 63A
- · Application:
- LED Touch Control, Automotive
- · Rated Frequency:
- 50Hz, 60Hz
- · Voltage:
- 600, 1000
Product Descriptio
Mday’s PV DC combiner boxes - high quality, optimized, robust and efficient
For solar installations in the PV industry, reliability and availability are paramount. In systems with string inverters, our AC and DC combiner boxes provide optimal short-circuit and overvoltage protection. Furthermore, each string inverter can be easily isolated from the system to do maintenance tasks.
 |

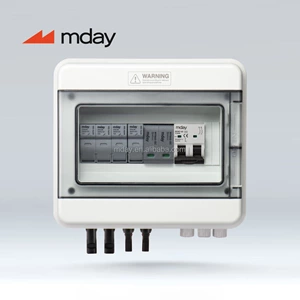

DC MY-PV2/2 1000V Combiner Box
Features/Benefits* HIGH RELIABILITY With DC FUSE,with DC surge protection with DC circuit breaker or DC load isolation switch. * STRONG ADAPTABILTY IP65 design, wateproof anti dust and anti ultraviolet.Strict test for high and low temperature,used widely. The simple instalation, the simplified system wiring,the convenient wiring, The box body is mode of cold rolled steel and other metal materials. * FLEXIBLE CONFIGURATION Used for single crystal silicon solar modules polycrystaline silicon solarmodules, thin film solar modules. Current rating of the photovoltaic fuse. |
 |
 |
| MY-PV2/2 1000V with isolation switch DC FUSE 32A*4 pcs DC isolation switch 2pcs DC SPD 2P*2pcs | MY-PV1/1 600V DC FUSE 32A*4 pcs DC MCB 2P *1pcs DC SPD 2P*1pcs |
 |
 |
 |
| DC Fuse | DC MCB | DC SPD |
| Name | MY-PV2/2 | |
| Electric Parameter | ||
| System maximum dc voltage | 600V | 1000V |
| Maximum input current for each string | 15A | |
| Maximum input strings | 2 | |
| Maximum output switch current | 16A/20A | |
| Number of inverter MPPT | 2 | |
| Number of output strings | 2 | |
| Lightning protection | ||
| Category of test | II grade protection | |
| Nominal discharge current | 20ka | |
| Maximum discharge current | 40ka | |
| Voltage protection level | 2.8kv | 3.8kv |
| Maximum continuous operating voltage Uc | 630V | 1050V |
| Poles | 2P | 3p |
| Structure characteristic | Plug-push module | |
| System | ||
| Protection grade | IP65 | |
| Output switch | DC isolation switch(standard)/DC circuit breaker(optional) | |
| PV dc fuse | Standard | |
| PV surge protector | Standard | |
| Monitoring module | Optional | |
| Preventing diode | Optional | |
| Box material | PVC | |
| Installation method | Wall mounting type | |
| Operating Temperature | -25℃~+55℃ | |
| Elevation of temperature | 2000m | |
| Permissible relative humidity | 0-95%,no condensation | |
| Mechanical Parameter | ||
| W*H*D | 388*260*120 | |
